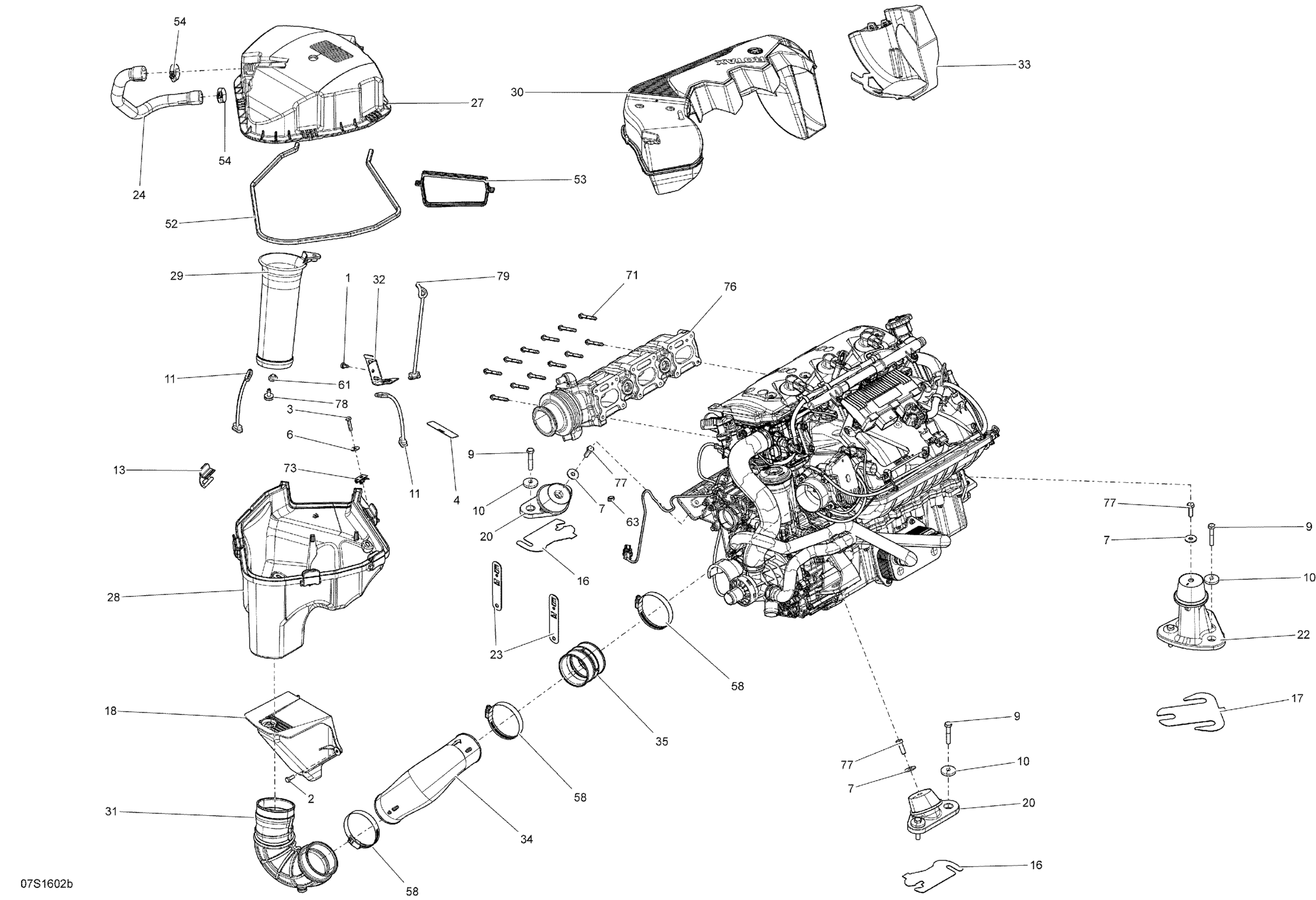

Sea-doo GTX, 2016 Engine - GTX S 155 Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

2

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

3

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.40

4

Air Silencer Notice Decal

219903177

Unavailable

6

Flat Washer M6, Stainless

234062600

$0.73

7

Flat Washer 8 mm, Stainless

234082600

$2.27

9

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

10

Cone Washer

250200018

$5.33

10

Cone Washer

250200018

$5.33

11

Strap

269501299

$17.13

13

Clip

269501718

$14.90

16

Shim 1.3 mm

270000762

$10.37

17

Shim 1.3 mm

270000770

$14.76

18

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

20

Engine Support Ass'y

270001081

$96.99

22

Rubber Mount

270000886

$113.40

23

HOLDING STRAP - Call your local BRP dealership

270000946

Unavailable

24

FORMED HOSE - Call your local BRP dealership

270000948

$51.46

27

Air Silencer Upper

273000249

$55.19

28

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

29

Intake Hose

273000359

$44.00

30

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

31

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

32

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

33

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

34

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

35

Intake Fitting

273000277

$26.09

52

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

53

SEAL - Call your local BRP dealership

293250190

$13.70

54

Tridon Gear Clamp

293650051

$4.15

58

Tridon Clamp

293650179

$10.12

58

Tridon Clamp

293650179

$10.12

61

GROMMET - Call your local BRP dealership

293720064

Unavailable

63

Tie Wrap 142 mm

293750002

$1.01

71

Torx Flange Screw M6 X 45

420641198

$3.88

73

Panel Nut M6 X 1

420942108

$13.18

76

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$748.48

77

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

78

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

79

Strap

273000344

$14.45
