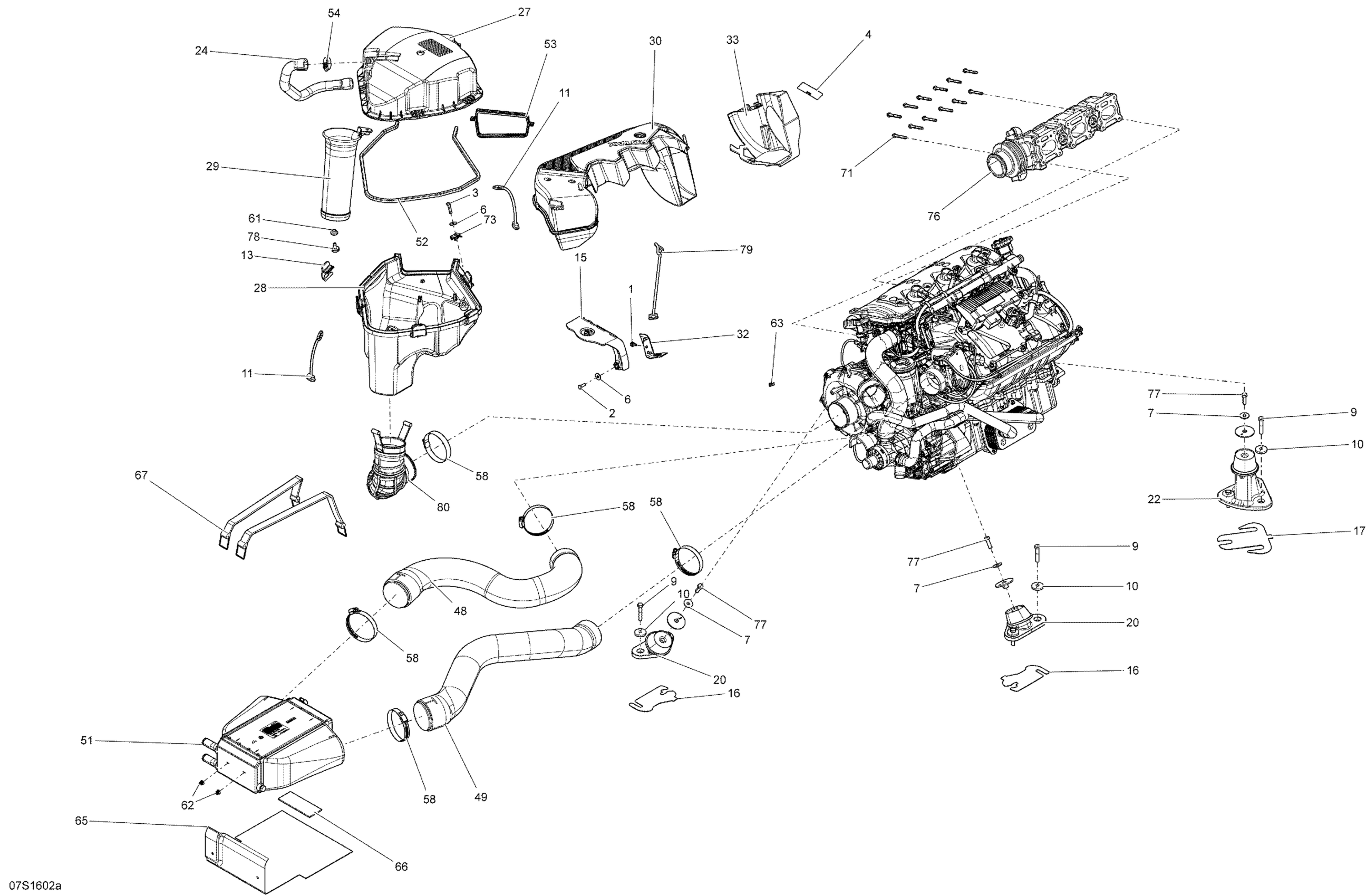

Sea-doo GTX, 2016 Engine - GTX LTD iS 260 Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

3

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

4

Air Silencer Notice Decal

219903177

Unavailable

6

Flat Washer M6, Stainless

234062600

$0.77

7

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

10

Cone Washer

250200018

$5.61

10

Cone Washer

250200018

$5.61

11

Strap

269501299

$19.49

13

Clip

269501718

$15.89

15

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

16

Shim 1.3 mm

270000762

$12.99

17

Shim 1.3 mm

270000770

$16.49

20

Engine Support Ass'y

270001081

$109.99

22

Rubber Mount

270000886

$129.99

24

FORMED HOSE - Call your local BRP dealership

270000948

$57.99

27

Air Silencer Upper

273000249

$61.99

28

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

29

Intake Hose

273000359

$48.99

30

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

32

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

33

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

48

Formed Hose | Engine 1503 HO 4-TEC

273000361

$93.99

49

Formed Hose | Engine 1503 HO 4-TEC

273000362

$93.99

51

Intercooler | Model GTR

276000397

$476.49

52

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

53

SEAL - Call your local BRP dealership

293250190

$15.49

54

Tridon Gear Clamp

293650051

$4.19

58

Tridon Gear Clamp

293650244

$9.29

58

Tridon Clamp

293650179

$11.49

61

GROMMET - Call your local BRP dealership

293720064

Unavailable

62

Black, Dart

293730016

$9.97

63

Tie Wrap 142 mm

293750002

$1.25

65

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

66

PAD-RUBBER - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830180

Unavailable

67

Fuel Tank Strap

293850093

$21.99

71

Torx Flange Screw M6 X 45

420641198

$4.12

73

Panel Nut M6 X 1

420942108

$14.28

76

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

77

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

78

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

79

Strap

273000344

$15.99

80

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable
