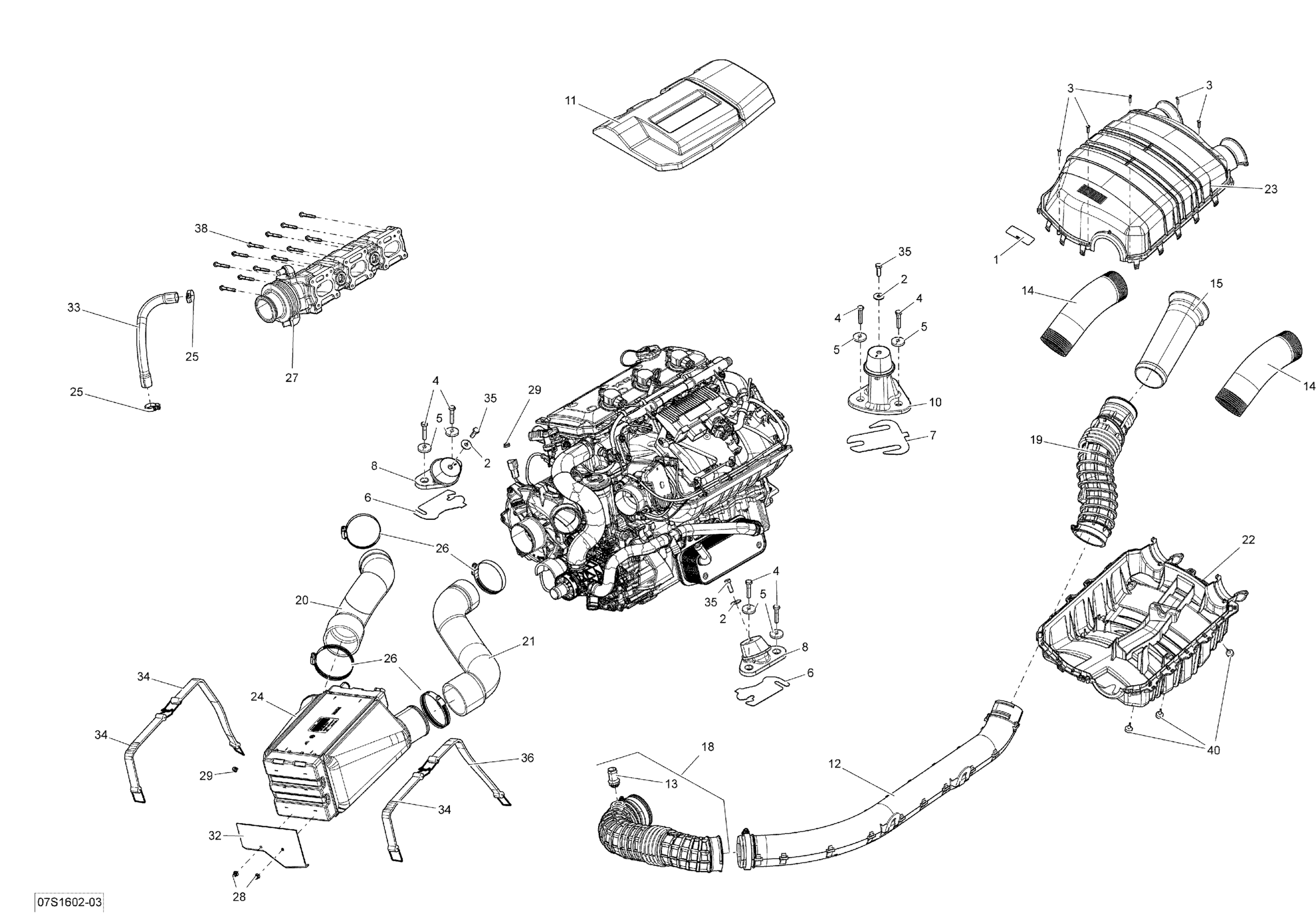

Sea-doo GTX, 2016 Engine - GTX LTD 300 Diagram

#

Description
Price

1

Air Silencer Notice Decal

219903177

Unavailable

2

Flat Washer 8 mm, Stainless

234082600

$1.98

3

Flange Torx Screw K40 X 16

250000287

$1.74

4

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

5

Cone Washer

250200018

$4.64

6

Shim 1.3 mm

270000762

$9.04

7

Shim 1.3 mm

270000770

$12.86

8

Engine Support Ass'y

270001081

$84.47

10

Rubber Mount

270000886

$98.77

11

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$57.82

12

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

13

Breather Valve

273000234

$10.63

14

Air Silencer Hose

273000290

$23.05

15

Intake Hose

273000359

$46.12

18

Hose Intake, Rear | Model GTR

273000328

$46.12

19

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

20

Hose Air Intake Intercooler

273000401

$53.27

21

Outlet Hose | Engine 1630 ACE HO This part replaces 273000339.

273000406

$73.42

22

Airbox Base

273000342

$46.12

23

Airbox Cover

273000373

$73.82

24

Intercooler | Includes 3000 to 3000a

276000335

$507.62

25

Tridon Gear Clamp

293650051

$3.61

26

Tridon Clamp

293650179

$8.81

26

Tridon Gear Clamp

293650244

$7.22

27

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

28

Black, Dart

293730016

$6.94

29

Tie Wrap 142 mm

293750002

$0.88

32

Pad-Rubber

293830178

$23.05

33

Formed Hose

270000950

$8.54

34

Fuel Tank Strap

293850093

$16.87

34

Fuel Tank Strap

293850094

$17.52

35

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

36

Fuel Tank Strap

293850095

$14.27

38

Torx Flange Screw M6 X 45

420641198

$3.38

40

Rubber Stopper

708000759

$3.61
