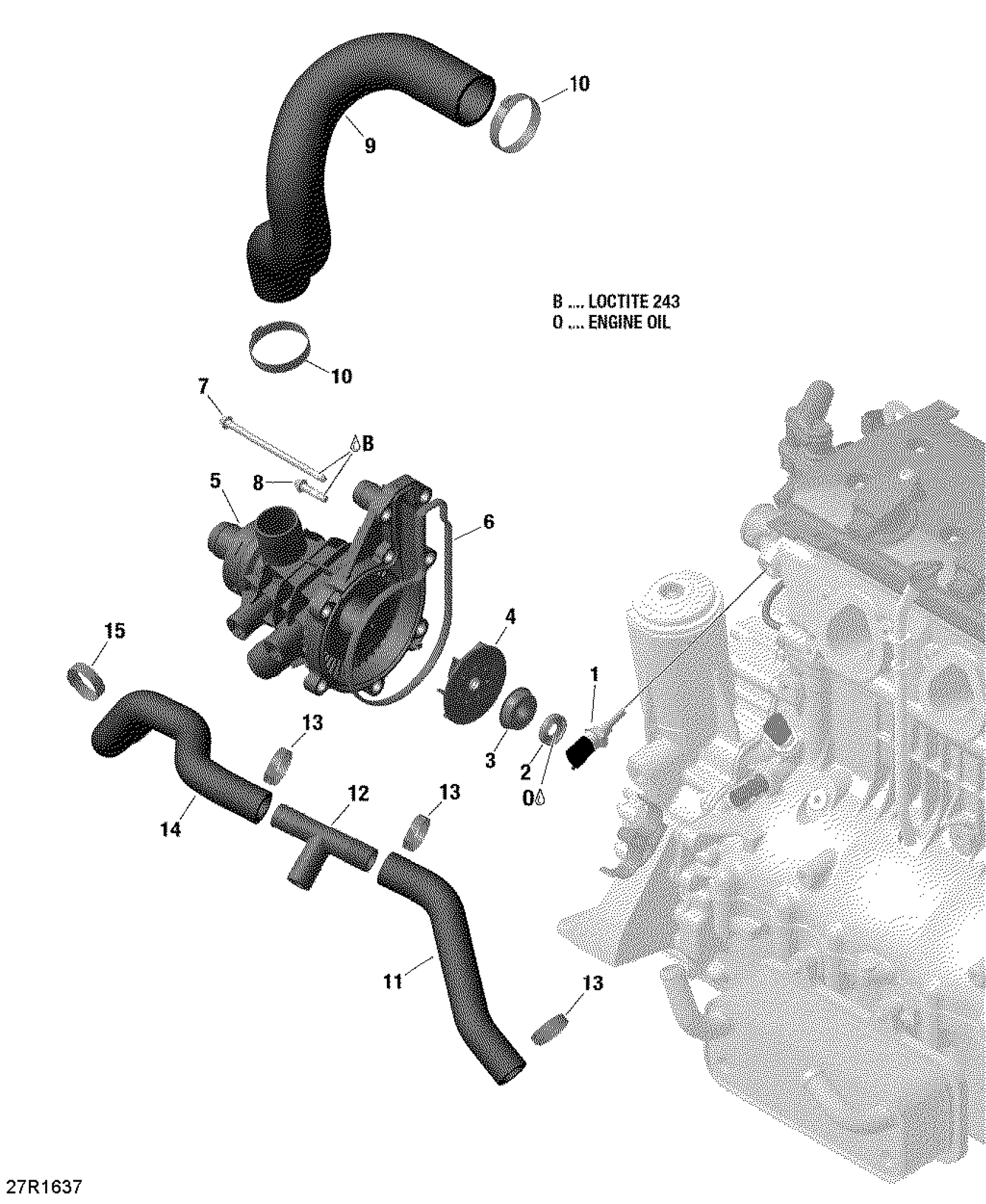

Sea-doo GTX, 2016 Engine Cooling - 300 Diagram

#

Description
Price

1

Temperature Sensor

278002895

$36.54

2

Oil Seal

420650315

$11.04

3

Rotary Seal

420650371

$41.01

4

Impeller

420922804

$16.39

5>6

Water Pump Housing This part replaces 420922687.

420922923

$305.94

6

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

7

Torx Flange Screw M6 X 105

420641338

$7.01

8

Torx Flange Screw M6 X 25

420641238

$3.07

9

Formed Hose This part replaces 420822791.

5922823

Unavailable

10

Oetiker Clamp

420851687

$10.82

11

Formed Hose

420822865

$49.97

12

T-Fitting

293710131

$14.43

13

Clamp

420853161

$9.03

14

Formed Hose

420822860

$49.97

15

Gear Clamp

420851673

$5.40
