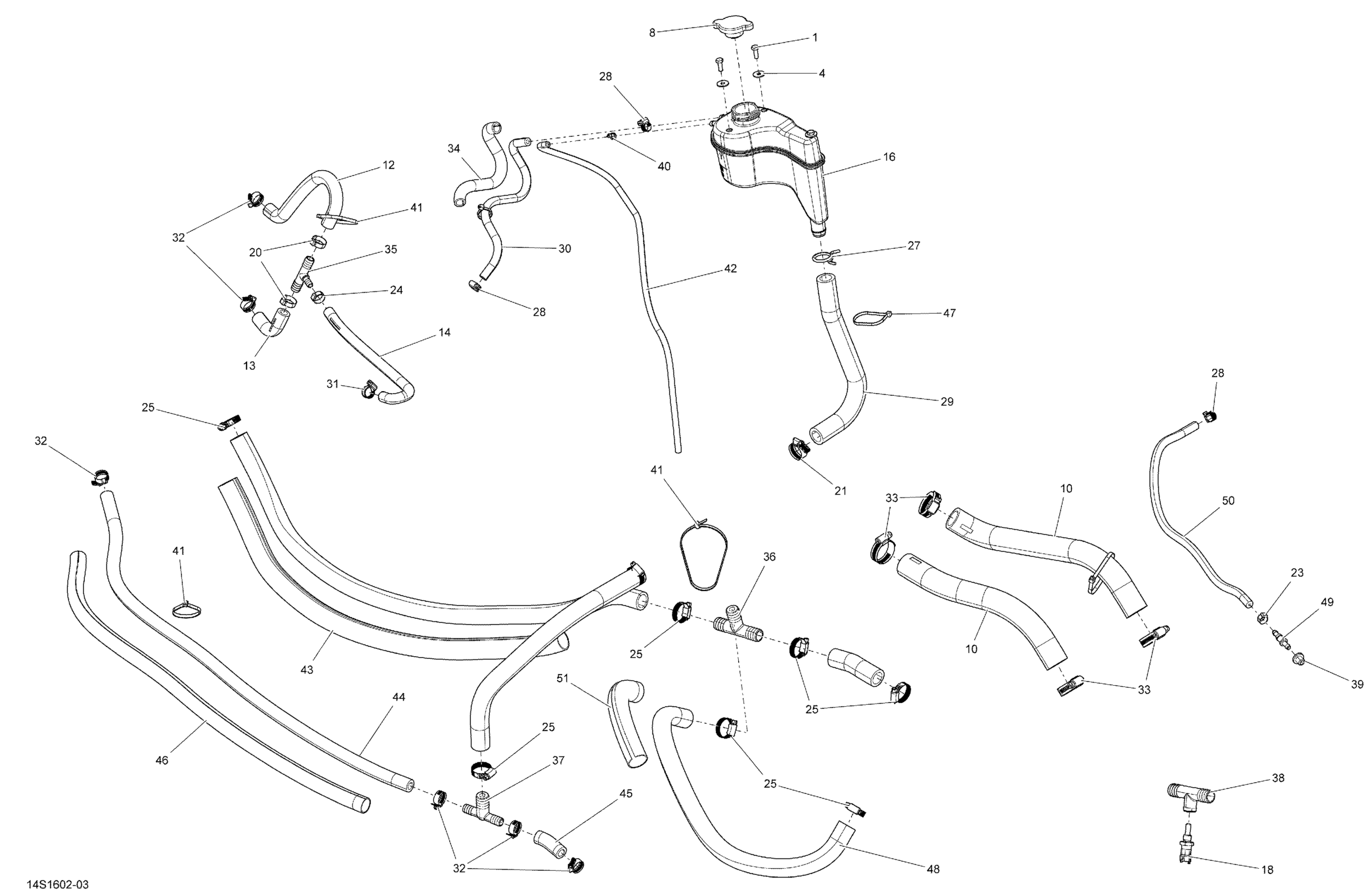

Sea-doo GTX, 2016 Cooling System - Except 300 Diagram

#

Description
Price

1

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

4

Flat Washer M6, Stainless

234062600

$0.64

4

Flat Washer M6, Stainless

234062600

$0.64

8

Pressure Cap | Includes 720 to 720a

276000100

$20.77

10

Radiator Hose This part replaces 276000240.

276000491

$40.27

12

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

13

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

14

Formed Hose | Without Catalyst

276000246

$14.92

16

Coolant Tank

276000265

$102.67

18

Temperature Sensor

278002895

$31.82

20

Oetiker Clamp

293650012

$4.94

21

Tridon Gear Clamp

293650019

$4.81

23

Oetiker Gear Clamp

293650025

$2.46

24

Oetiker Clamp | Europe

293650030

$4.32

25

Tridon Gear Clamp

293650051

$3.61

27

Spring Clamp

293650115

$2.46

28

Tridon Gear Clamp

293650170

$1.74

29

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

30

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$10.00

31

Tridon Gear Clamp

293650171

$2.46

32

Tridon Gear Clamp

293650172

$2.68

33

Tridon Gear Clamp

293650185

$10.91

34

Was 409901800 Tubing (13 mm)

219704400

$9.40

35

T-Fitting

293710116

$14.27

36

T-Fitting

293710131

$12.57

37

T-Fitting

293710132

$9.48

38

Sensor Ass'y | Includes 1090 to 1090b

293710143

$50.02

39

Grommet

293720029

$1.13

40

Tie Wrap 94 mm | 4X4

293750001

$0.83

41

Tie Wrap 368 mm

293750008

$0.85

42

Polyurethane Hose 10000Mm Long

219704410

$46.12

43

Tubing 25 MM 1000MM Long

219704402

$12.69

44

Was 276000001 Hose 12.5 mm

219704394

$42.87

45

Was 276000001 Hose 12.5 mm

219704394

$42.87

46

Was 515175319 Tubing 22 mm

219704423

$11.84

47

Tie-Rap 180 mm

414115200

$0.09

48

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

49

Male Connector

414518500

$3.50

50

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$10.00

51

Tubing 25 MM 1000MM Long

219704402

$12.69
