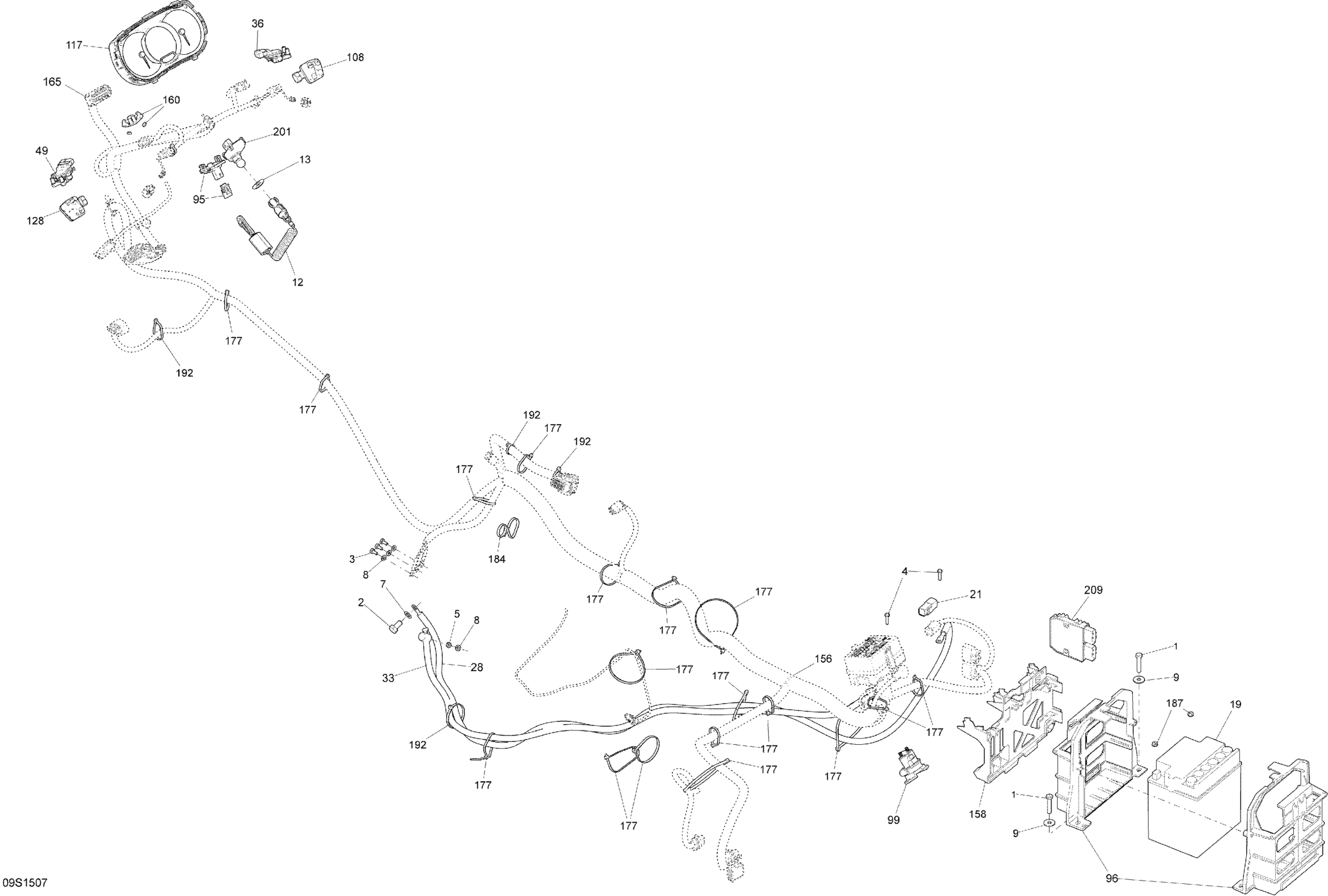

Sea-doo GTX 155, 2015 Electrical System _09S1507 Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$2.22

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Hex. Screw 10-14 X 7/8”

211000023

$3.59

5

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Elastic Stop Nut M6, Brass

232561200

$4.23

7

Flat Washer 10 mm, Stainless

234000600

$1.46

8

Stainless Flat Washer M6

234061600

$0.33

8

Stainless Flat Washer M6

234061600

$0.33

9

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Safety Lanyard Ass'y, RFID

278003400

$84.99

12

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99

13

Safety Nut (DESS Switch)

278002963

$3.28

19

Battery, 30 Amperes

278001882

$184.01

21

Diagnostic Connector

278002704

$19.49

28

Battery Ground Cable

278003269

$41.49

33

Cable-Starter

278003398

$63.99

36

Throttle Position Sensor

278002283

$119.99

49

LH Throttle Sensor

278002284

$119.99

95

O.T.A.S. Sensor Ass'y

278003009

$109.99

96

Battery Support

278003306

$20.99

99

Starter Relay

278003012

$42.49

108

Switch RH Mode/Set

278002602

$126.99

117

LCD Gauge | Model GTI LTD 155

278003378

$1.00

128

Switch LH Sport/Eco

278002768

$83.49

156

Main Harness (Fixed)

278003253

$1.00

158

Support

278003048

$21.99

160

O.T.A.S Actuator

278003537

$42.99

165

Steering Harness Ass'y

278003265

$319.99

177

Tie Wrap 368 mm

293750008

$1.04

184

Tie Rap 300mm

293750053

$2.11

187

Battery Bolt Kit

250000282

$7.29

192

Tie-Rap 180 mm

414115200

$0.11

201

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

209

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99
