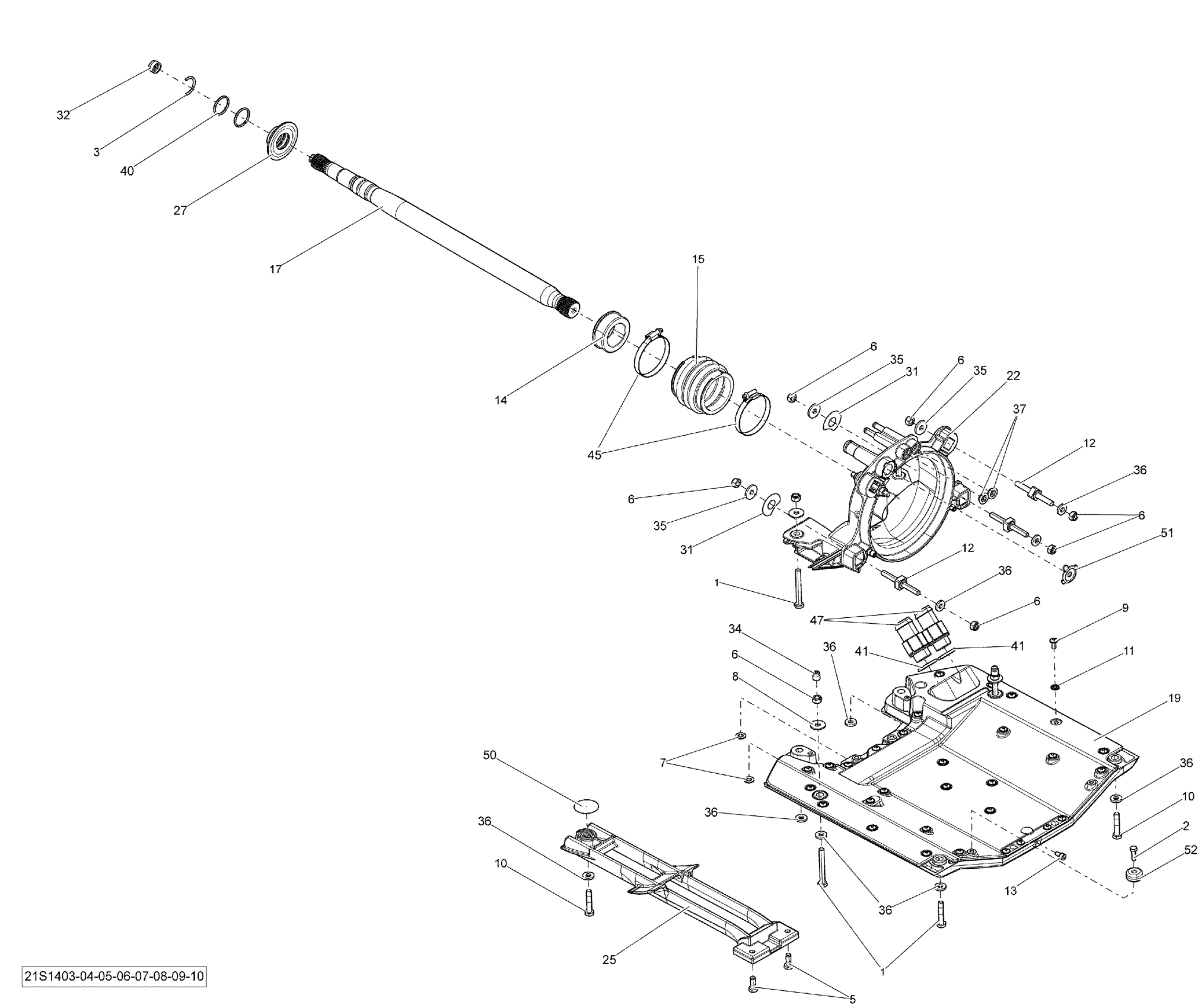

Sea-doo GTX 155, 2014 Propulsion _21S1407 Diagram

#

Description
Price

1

Hex. Screw M8 X 65

207186560

$4.44

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

C-Clip

271001577

$3.27

5

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

6

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Torx Screw M6 X 14

250000384

$7.51

10

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

11

Sealing Washer

250200114

$4.44

12

Square Stud

250300046

$14.82

13

Socket Drain Plug M6 X 12

250500005

$16.49

14

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

15

Bellow This part replaces 271001422.

271001933

$23.49

17

Drive Shaft

271001719

$328.49

19

Riding Plate Ass'y | Includes 210 to 210f

271001939

$227.49

22

Pump Support | Hull LFI

271001775

$53.99

25

Pump Grate

271001967

$109.99

27

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

31

Shim 0.3 mm

272000053

$11.49

32

Drive Shaft Plug

272000173

$8.68

34

Polyurethane Hose 10000Mm Long

219704410

$56.99

35

Flat Washer

279000336

$11.57

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Watertight Seal

293250084

$7.49

40

O-Ring

293300107

$1.01

41

O-Ring

293300121

$8.32

45

Norma Clamp

293650079

$11.60

47

Strait Fitting

293710124

$17.39

50

PROTECTOR DISK - Call your local BRP dealership

293830047

$1.99

51

Reducer, Green This part replaces 271001586.

271002029

$16.49

52

Anode Zinc

271001813

$18.99
