Description

Price

1

Hex. Screw M8 X 40

207184060

$2.12

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Elastic Stop Nut M6, Brass

232561200

$4.03

6

Flat Washer 10 mm, Stainless

234000600

$1.22

7

Stainless Flat Washer M6

234061600

$0.28

8

Flat Washer 8 mm, Stainless

234082600

$2.27

11

Safety Nut (DESS Switch)

278002963

$3.12

20

Battery, 30 Amperes

278001882

$171.95

22

Diagnostic Connector

278002704

$17.88

32

Cluster LCD This part replaces 278002718.

278003005

$1,142.51

33

O.T.A.S. Sensor Ass'y

278003009

$99.22

34

Safety Lanyard, Antitheft

278002483

$79.07

34

Safety Lanyard, Learning Key

278002484

$52.21

35

Switch LH Sport/Eco

278002768

$76.84

36

Switch RH Mode/Set

278002602

$115.64

37

LH Throttle Sensor

278002284

$108.18

38

Throttle Position Sensor

278002283

$104.99

39

Start/Stop Switch Kit

295501137

$55.19

41

Wiring Harness | Includes 101 To 2057

278002941

$817.88

42

Cable-Starter

278003398

$57.43

43

Battery Ground Cable

278003269

$38.78

68

O.T.A.S Actuator

278003537

$38.03

79

Battery Support

278003306

$17.13

81

Starter Relay

278003012

$40.27

121

Wiring Harness Ass'y

278002950

$413.40

131

Support

278003048

$20.12

139

Battery Bolt Kit

250000282

$3.39

144

Tie Wrap 368 mm

293750008

$0.97

144

Tie-Rap 180 mm

414115200

$0.10

158

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

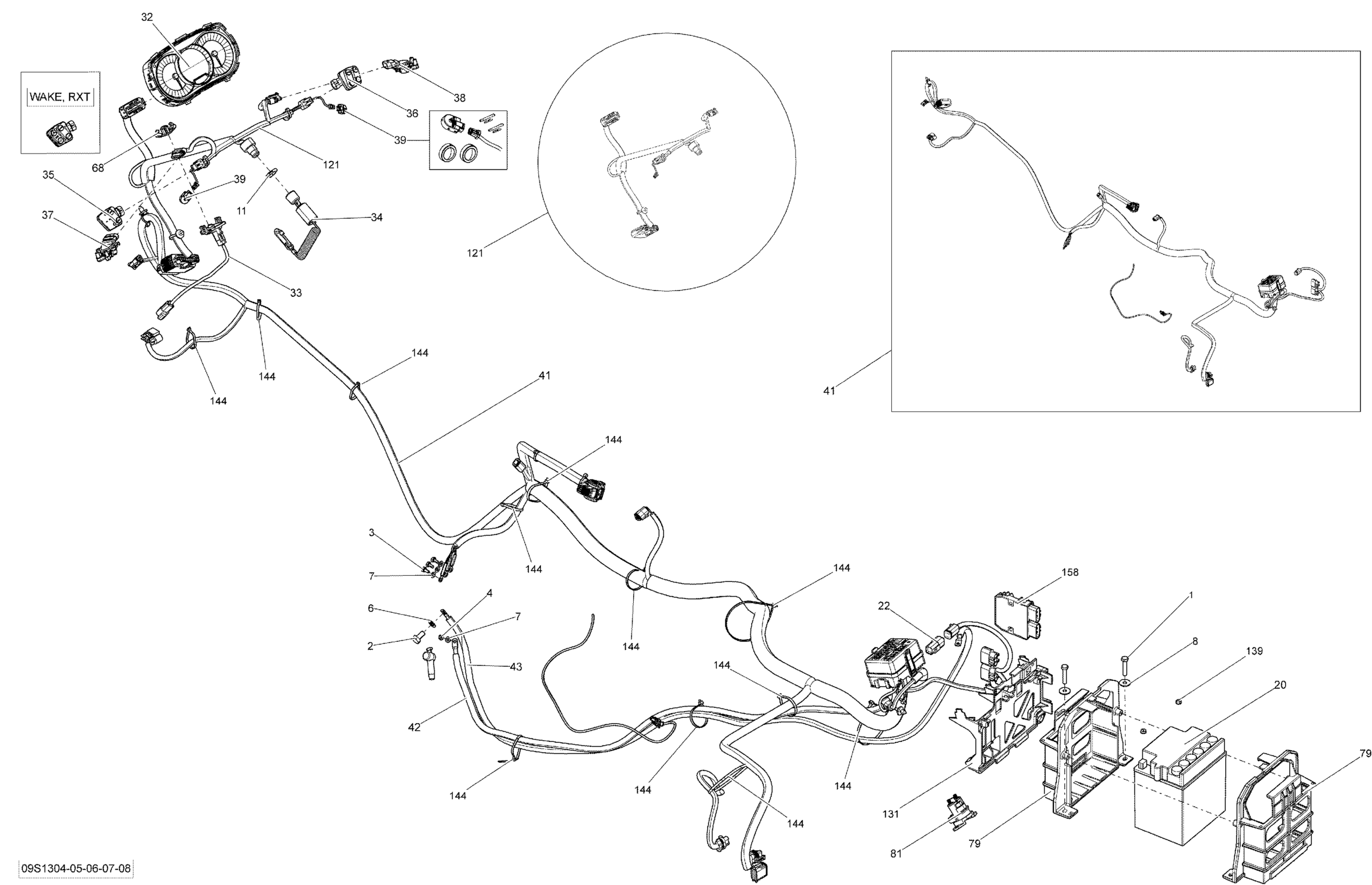

Sea-doo GTX 155, 2013 Electrical System Diagram
