Description

Price

1

Elastic Stop Nut M6, Brass

232561200

$4.23

2

Flat Washer 4 mm, Stainless

234041600

$1.15

3

Hex. Flange Screw K40 X 16

241141660

$1.48

5

Mirror Spring

269500453

$10.49

8

LH MIRROR HOUSING, GOLD - Call your local BRP dealership

269501891

Unavailable

9

RH MIRROR HOUSING, GOLD - Call your local BRP dealership

269501889

$68.99

10

LH Mirror Ass'y

269501918

$68.99

13

RH Mirror Ass'y

269501920

$68.99

14

Shock Absorber End Fitting

269501984

$11.49

15

Shock Absorber | Includes 150 to 150d

269501664

$134.99

16

Black Front Cosmetic | Model GTX 155, GTX LTD 230, GTX LTD 300

269501756

$95.49

20

Not Available As Spare Parts

XXX

Unavailable

22

Left Latch

269501964

$30.99

22

Right Latch

269501965

$30.99

26

Black Upper Front Deflector This part replaces 269501663.

269502209

$154.99

27

Spacer

291001203

$13.49

28

Rivet | Model-T3

293150067

$2.89

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

32

Rubber Bumper

293830135

$15.99

100

Cover Ass'y This part replaces 269501967.

269502052

$389.99

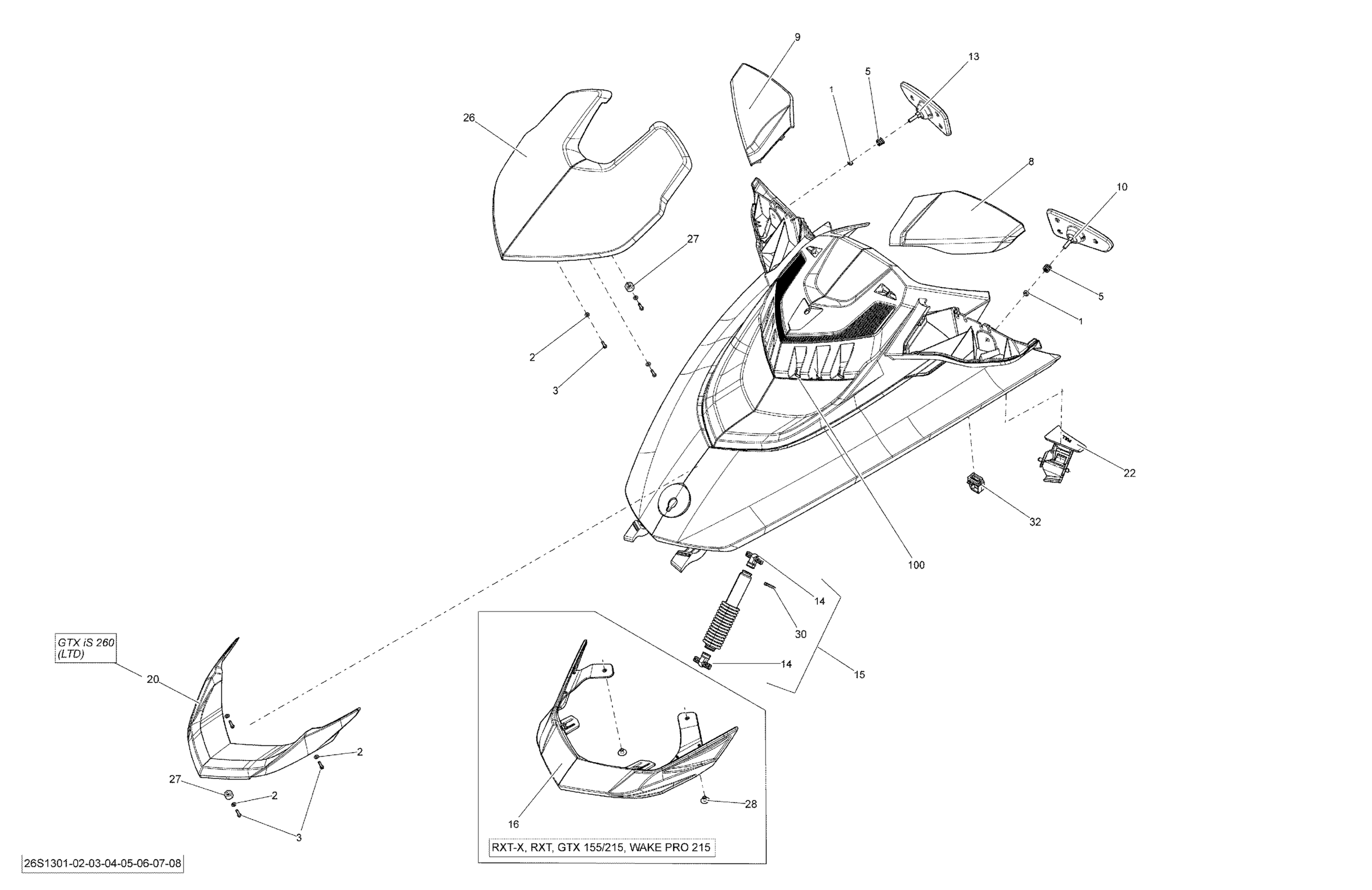

Sea-doo GTX 155, 2013 Front Cover Diagram

Elastic Stop Nut M6, Brass

Flat Washer 4 mm, Stainless

Hex. Flange Screw K40 X 16

Mirror Spring

LH MIRROR HOUSING, GOLD - Call your local BRP dealership

RH MIRROR HOUSING, GOLD - Call your local BRP dealership

LH Mirror Ass'y

RH Mirror Ass'y

Shock Absorber End Fitting

Shock Absorber | Includes 150 to 150d

Black Front Cosmetic | Model GTX 155, GTX LTD 230, GTX LTD 300

Not Available As Spare Parts

Left Latch

Right Latch

Black Upper Front Deflector This part replaces 269501663.

Spacer

Rivet | Model-T3

Tie Wrap 94 mm | 4X4

Rubber Bumper

Cover Ass'y This part replaces 269501967.
