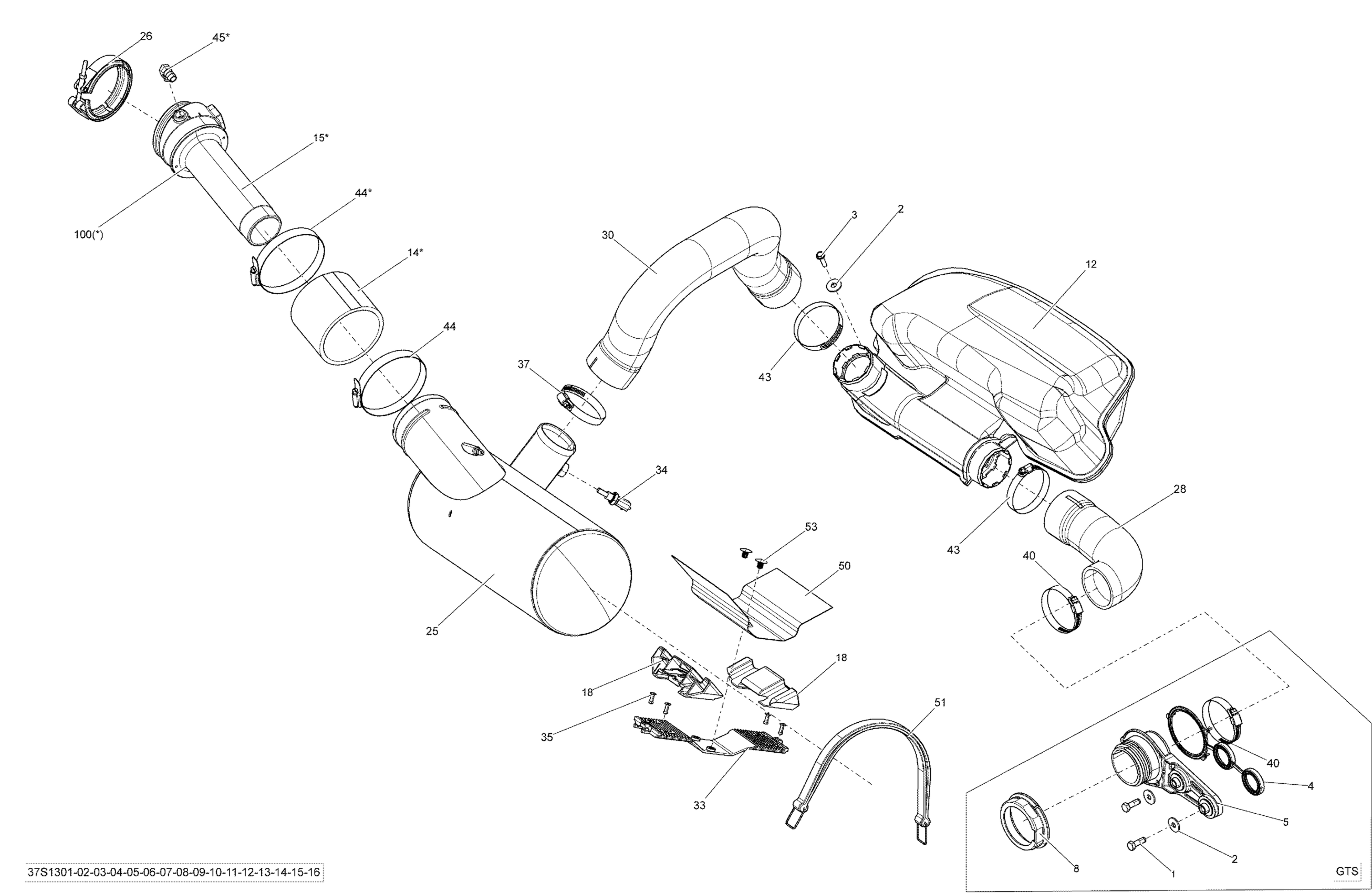

Sea-doo GTX 155, 2013 01- Exhaust System Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

2

Flat Washer 8 mm, Stainless

234082600

$2.43

3

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

4

RH FORMED SEAL - Call your local BRP dealership

268000105

Unavailable

5

RH Fixing Plate Ass'y

268000130

$35.99

8

Nut 72 mm

274000224

$16.34

12

Resonator

274001366

$169.49

14

Hose | Without Catalyst

274001348

$24.49

15

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

18

Stopper

274001721

$19.09

25

Muffler This part replaces 274001384.

274001648

$815.99

26

Exhaust Clamp

274001417

$58.99

28

Exhaust Hose This part replaces 274001423.

274001711

$29.49

30

Front Formed Exhaust Pipe This part replaces 274001458.

274001714

$71.99

33

Exhaust Muffler Support This part replaces 274001357.

274001479

$18.54

34

Temperature Sensor

278002895

$39.99

35

Pop Rivet 3/16"

293150043

$2.09

37

Tridon Clamp

293650179

$11.49

40

Tridon Clamp

293650179

$11.49

43

Tridon Clamp

293650179

$11.49

44

Gear Clamp This part replaces 293650281.

293650202

$15.88

45

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

50

Pad Rubber

293830153

$16.34

51

Fuel Tank Strap

293850093

$21.99

53

Dart

414939500

$1.04

100

Head Pipe Ass'y

274001489

Unavailable
