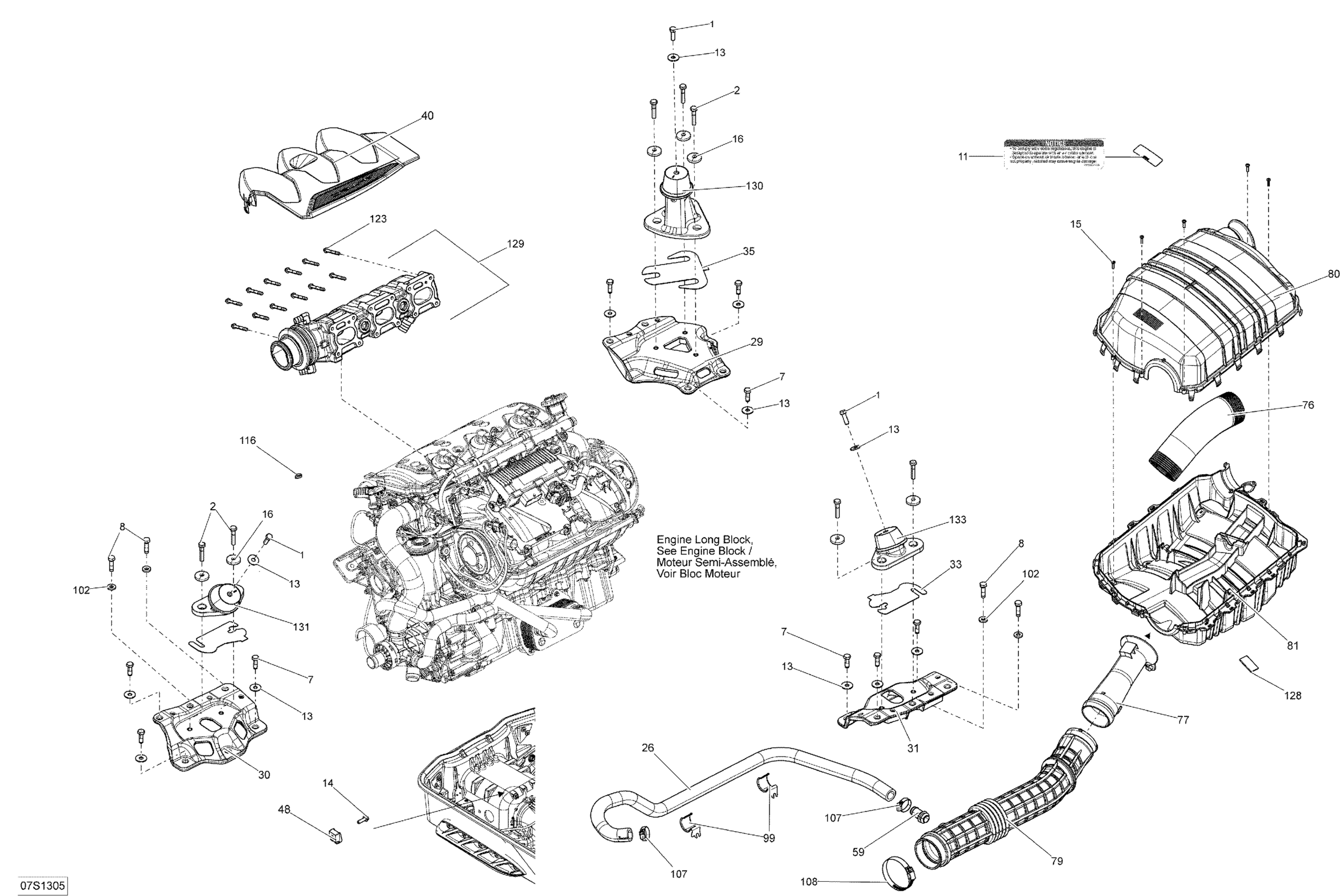

Sea-doo GTX 155, 2013 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

8

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

11

Air Silencer Notice Decal

219903177

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Flange Screw M6.81 x 20

243162060

$3.72

15

Flange Torx Screw K40 X 16

250000287

$2.11

16

Cone Washer

250200018

$5.61

26

Formed Hose

270000949

$47.99

29

SPACER - Call your local BRP dealership

270000767

Unavailable

30

SPACER - Call your local BRP dealership

270000763

Unavailable

31

Spacer

270000766

$78.49

33

Shim 1.3 mm

270000762

$12.99

35

Shim 1.3 mm

270000770

$16.49

40

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

48

Strap Anchor

270000854

$7.76

59

Breather Valve

273000234

$14.49

76

Air Silencer Hose

273000290

$22.49

77

INTAKE HOSE - Call your local BRP dealership

273000291

Unavailable

79

HOSE CONNECTOR - Call your local BRP dealership | Engine 1503 NA 4-TEC

273000295

Unavailable

80

Airbox Cover

273000371

$73.99

81

Airbox Base

273000354

$57.99

99

Retainer

275500664

$14.75

102

Flat Washer M8.5 x 18

293050001

$3.07

107

Tridon Gear Clamp

293650051

$4.19

108

Tridon Clamp

293650179

$11.49

116

Tie Wrap 142 mm

293750002

$1.25

123

Torx Flange Screw M6 X 45

420641198

$4.12

128

Rubber Stopper

708000759

$4.19

129

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

130

Rubber Mount

270000886

$129.99

131

Engine Support Ass'y

270001081

$109.99

133

Engine Support Ass'y

270001081

$109.99
