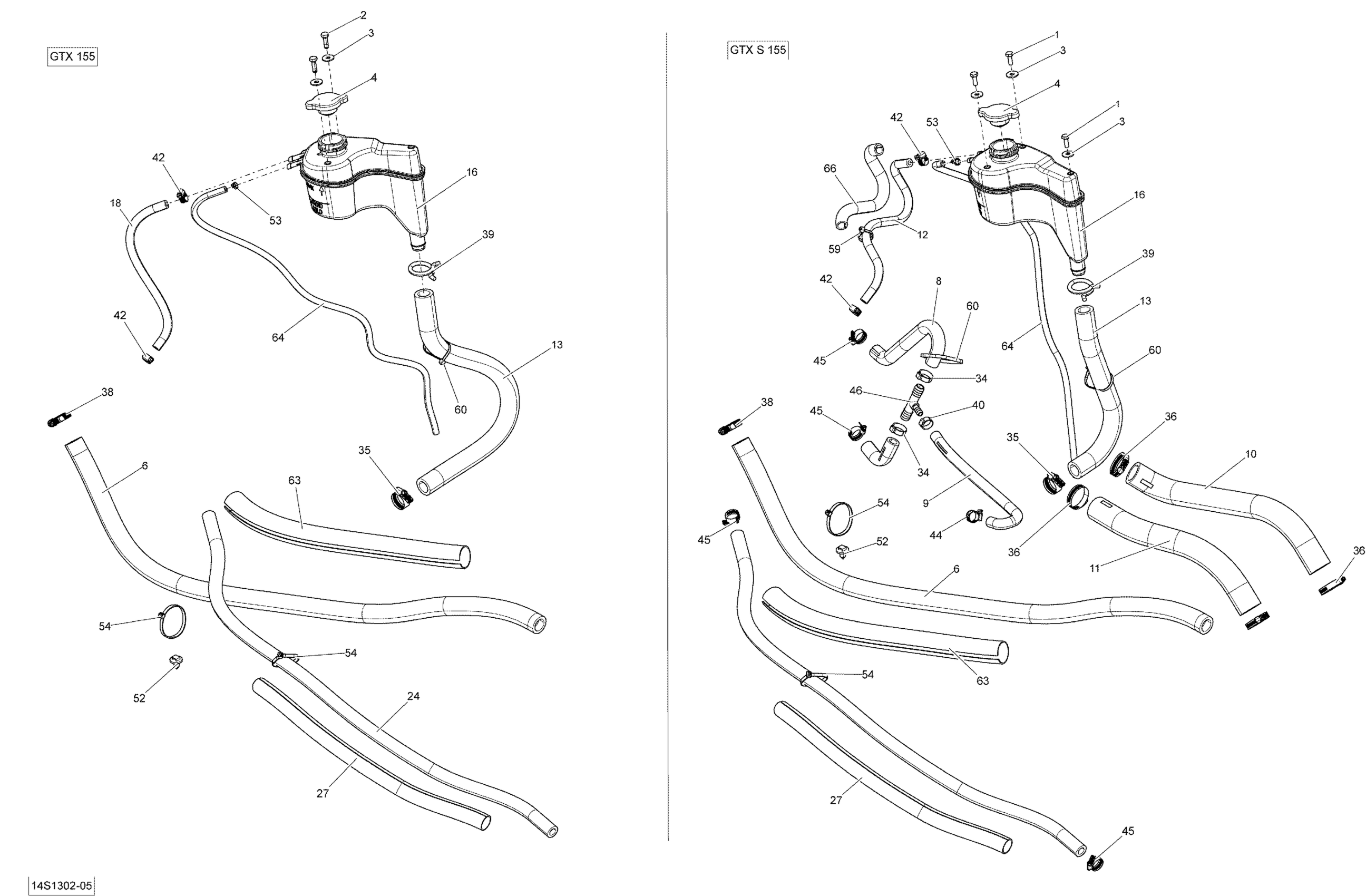

Sea-doo GTX 155, 2013 Cooling System Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

Flat Washer M6, Stainless

234062600

$0.77

4

Pressure Cap | Includes 720 to 720a

276000100

$25.99

6

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

8

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

10

Radiator Hose This part replaces 276000240.

276000491

$49.99

11

Radiator Hose

276000241

$32.99

12

Not Available As Spare Parts

XXX

Unavailable

13

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

16

Coolant Tank

276000265

$134.99

18

Was 275500549 Hose 1/4"

219704357

$194.99

24

Was 276000001 Hose 12.5 mm

219704394

$51.99

27

Tubing 25 MM 1000MM Long

219704402

$15.99

34

Oetiker Clamp

293650012

$7.49

35

Tridon Gear Clamp

293650019

$5.82

36

Tridon Gear Clamp

293650185

$13.99

38

Tridon Gear Clamp

293650051

$4.19

39

Spring Clamp

293650115

$3.09

40

Oetiker Clamp | Europe

293650030

$5.19

42

Tridon Gear Clamp

293650170

$1.99

44

Tridon Gear Clamp

293650171

$3.09

45

Tridon Gear Clamp

293650172

$3.09

46

T-Fitting

293710116

$17.62

52

Mount Dart

293730040

$1.04

53

Tie Wrap 94 mm | 4X4

293750001

$1.03

54

Tie Wrap 368 mm

293750008

$1.04

59

Not Available As Spare Parts

XXX

Unavailable

60

Tie-Rap 180 mm

414115200

$0.11

63

Tubing 25 MM 1000MM Long

219704402

$15.99

64

Polyurethane Hose 10000Mm Long

219704410

$56.99

66

Not Available As Spare Parts

XXX

Unavailable
