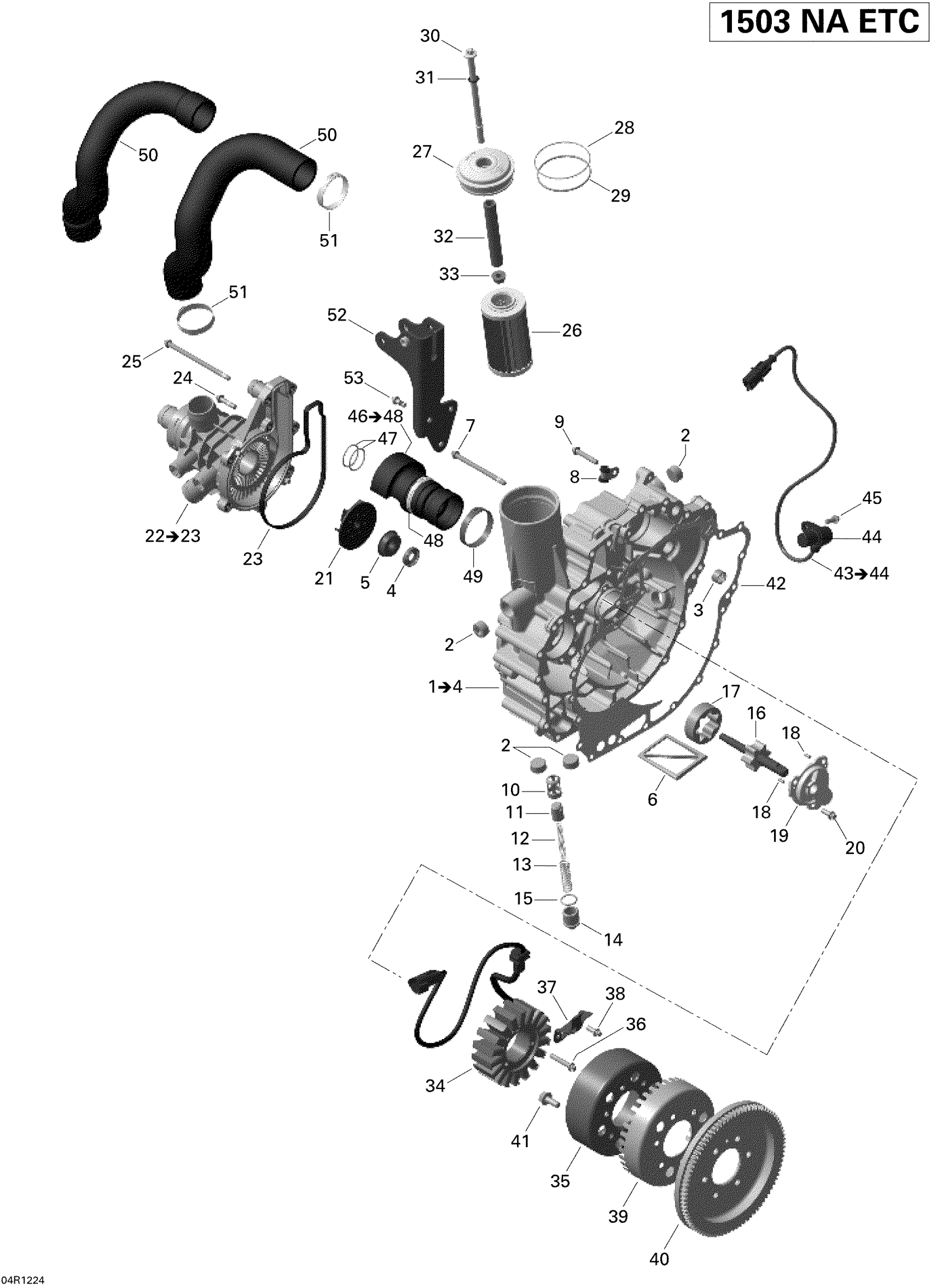

Sea-doo GTX 155, 2012 PTO Cover And Magneto 1_GTX S 155 Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-5

420910527

$635.49

2

Plug Screw M20 X 1.5

420641317

$14.22

3

Needle Bushing

420232482

$20.99

4

Oil Seal

420650315

$11.65

5

Rotary Seal

420650371

$43.49

6

Oil Sieve

420956950

$16.86

7

Torx Flange Screw M6 X 85

420641228

$7.41

8

Clamp

420853414

$18.49

9

Torx Flange Screw M6 X 35

420641258

$3.38

10

Valve Seat Sleeve

420256606

$29.49

11

Piston Valve

420256638

$22.99

12

Compression Spring

420939401

$14.75

13

Compression Spring

420939211

$8.99

14

Plug Screw M20 X 1.5

420641052

$37.99

15

O-Ring

420230890

$5.39

16

Pump Shaft Ass'y

420837472

$56.99

17

Oil Pump Rotor 16 mm

420956675

$36.99

18

Needle Pin

420929070

$1.90

19

Oil Pump Cover

420811591

$37.99

20

Torx Flange Screw M6 X 16

420641048

$2.96

21

Impeller

420922801

$17.53

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

24

Torx Flange Screw M6 X 25

420641238

$3.27

25

Torx Flange Screw M6 X 105

420641338

$7.41

26

Oil Filter

420956741

$13.77

27

Oil Filter Cover

420612081

$45.49

28

O-Ring

420230923

$3.17

29

O-Ring

420850500

$3.17

30

Hex Screw M8 X 140.5

420641104

$13.76

31

O-Ring

420950860

$3.91

32

Spacer

420857229

$20.99

33

Hex. Nut M8

420842610

$13.77

34

Stator Plate This part replaces 420889721.

420889726

$319.49

35

Magneto Flywheel

420296900

$461.99

36

Torx Flange Screw M6 X 35

420641258

$3.38

37

Retaining Plate

420926300

$16.37

38

Torx Flange Screw M6 X 16

420641048

$2.96

39

Trigger Wheel

420966851

$18.49

40

Starter Gear, 86 Teeth

420835163

$309.99

41

Hex Screw

295501162

$15.28

42

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

43

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

44

O-Ring

420431580

$14.83

45

Torx Flange Screw M6 X 16

420641048

$2.96

46

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

47

O-Ring

420631612

$4.33

48

Gear Clamp 46.8-50.0MM

420853023

$7.41

49

Gear Clamp

420851653

$7.41

50

Formed Hose This part replaces 420922825.

420922828

$45.49

51

Oetiker Clamp

420851687

$11.65

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable
