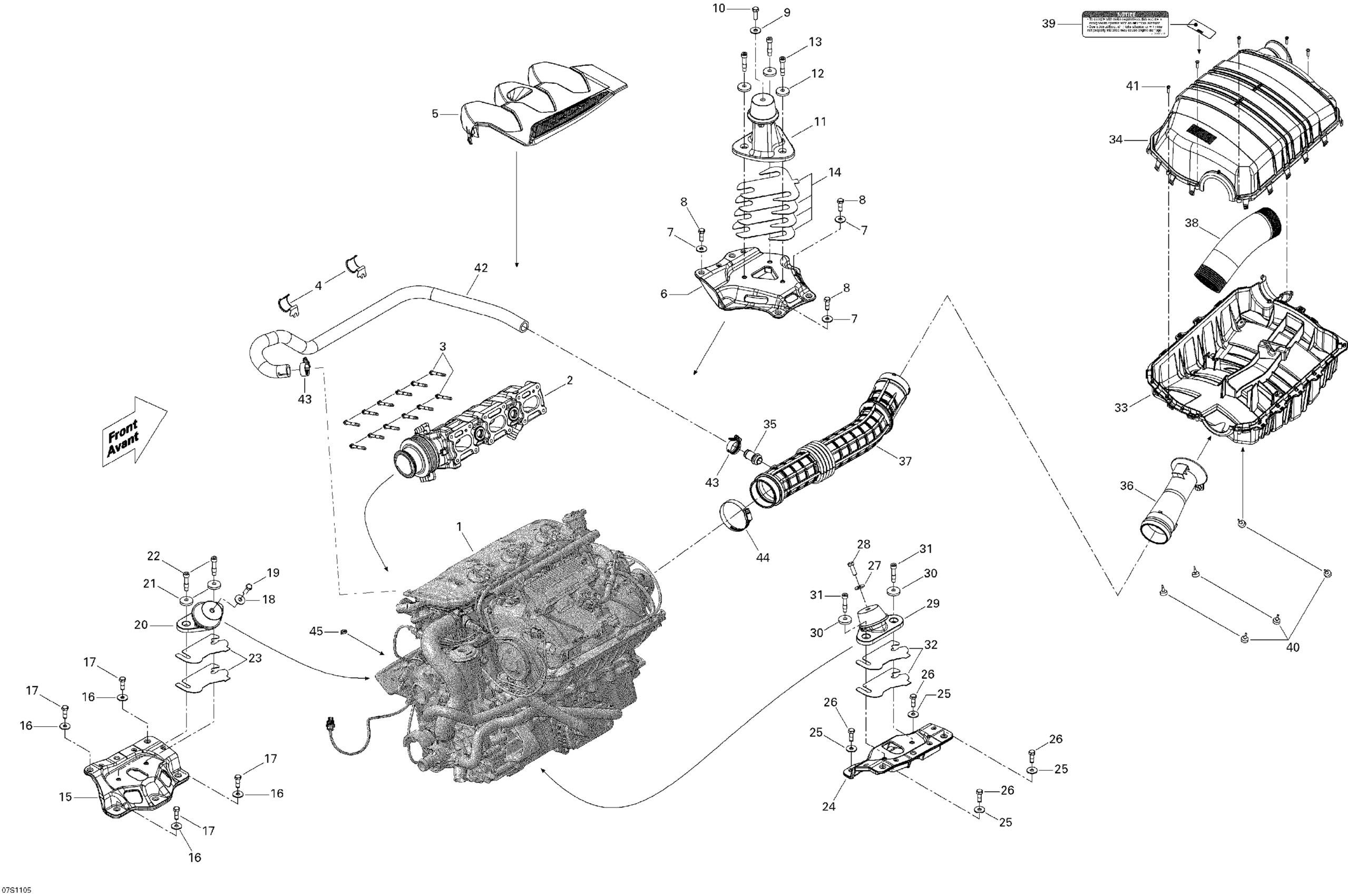

Sea-doo GTX 155, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150318.

420150392

$4.00

2

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

3

Torx Flange Screw M6 X 45

420641198

$4.12

4

Retainer

275500664

$14.75

5

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

6

SPACER - Call your local BRP dealership

270000767

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

11

Rubber Mount

270000886

$129.99

12

Cone Washer

250200018

$5.61

13

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

14

Shim 1.3 mm

270000770

$16.49

15

SPACER - Call your local BRP dealership

270000763

Unavailable

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

18

Flat Washer 8 mm, Stainless

234082600

$2.43

19

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

20

Engine Support Ass'y

270001081

$109.99

21

Cone Washer

250200018

$5.61

22

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

23

Shim 1.3 mm

270000762

$12.99

24

Spacer

270000766

$78.49

25

Flat Washer 8 mm, Stainless

234082600

$2.43

26

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

27

Flat Washer 8 mm, Stainless

234082600

$2.43

28

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

29

Engine Support Ass'y

270001081

$109.99

30

Cone Washer

250200018

$5.61

31

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

32

Shim 1.3 mm

270000762

$12.99

33

Airbox Base

273000354

$57.99

34

Airbox Cover

273000371

$73.99

35

Breather Valve

273000234

$14.49

36

INTAKE HOSE - Call your local BRP dealership

273000291

Unavailable

37

HOSE CONNECTOR - Call your local BRP dealership | Engine 1503 NA 4-TEC

273000295

Unavailable

38

Air Silencer Hose

273000290

$22.49

39

Air Silencer Notice Decal

219903177

Unavailable

40

Rubber Stopper

708000759

$4.19

41

Flange Torx Screw K40 X 16

250000287

$2.11

42

Formed Hose

270000949

$47.99

43

Tridon Gear Clamp

293650051

$4.19

44

Tridon Clamp

293650179

$11.49

45

Tie Wrap 142 mm

293750002

$1.25
