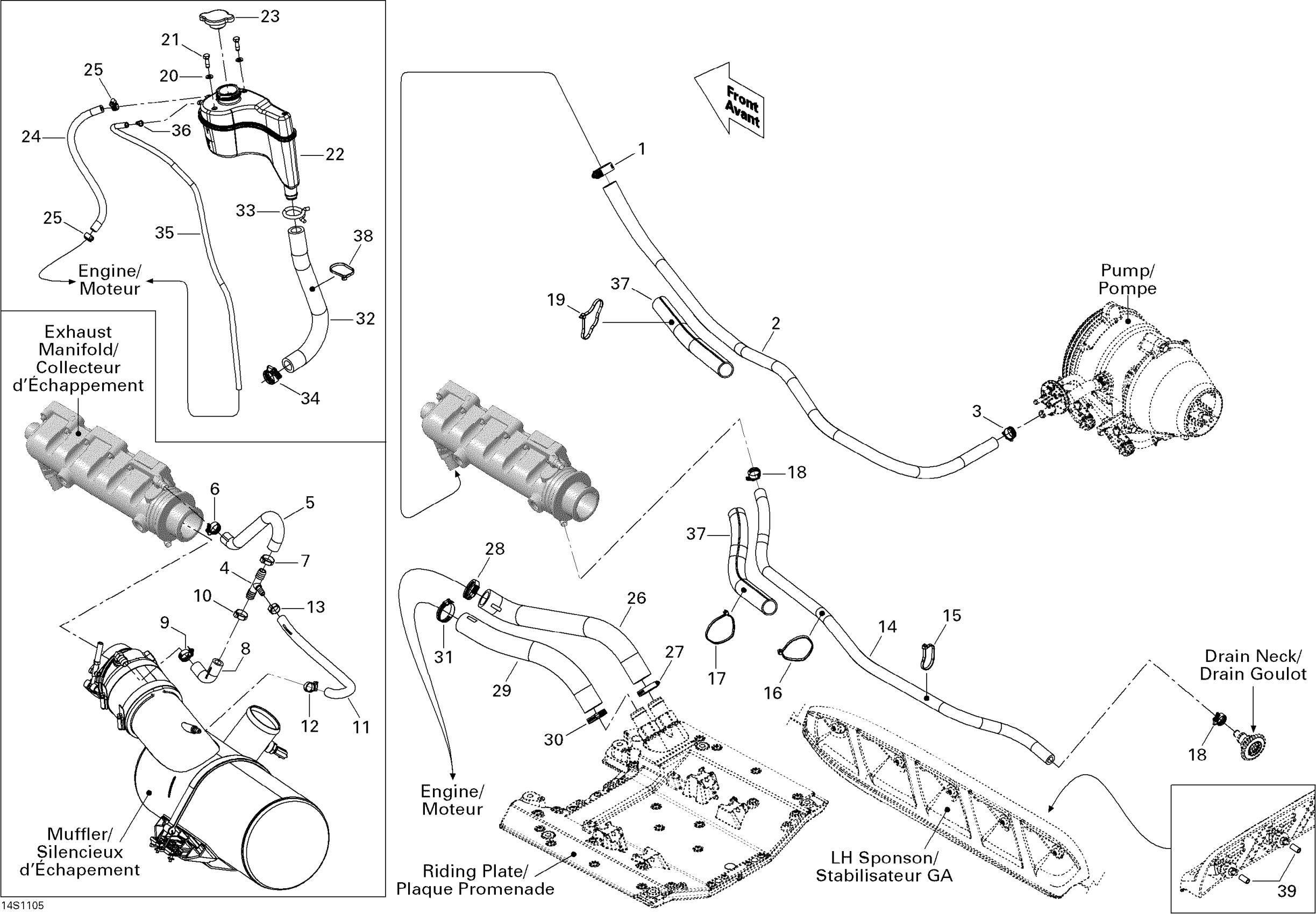

Sea-doo GTX 155, 2012 Cooling System Diagram

#

Description
Price

1

Tridon Gear Clamp

293650051

$4.19

2

Formed Hose

276000276

Unavailable

3

Tridon Gear Clamp

293650172

$3.09

4

T-Fitting

293710116

$17.62

5

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

6

Tridon Gear Clamp

293650172

$3.09

7

Oetiker Clamp

293650012

$7.49

8

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

9

Tridon Gear Clamp

293650172

$3.09

10

Oetiker Clamp

293650012

$7.49

11

Formed Hose | Without Catalyst

276000246

$19.49

12

Tridon Gear Clamp

293650171

$3.09

13

Oetiker Clamp | Europe

293650030

$5.19

14

Was 276000001 Hose 12.5 mm

219704394

$51.99

15

Tie Wrap 368 mm

293750008

$1.04

16

Tie Wrap 368 mm

293750008

$1.04

17

Tie Wrap 368 mm

293750008

$1.04

18

Tridon Gear Clamp

293650172

$3.09

19

Tie Wrap 368 mm

293750008

$1.04

20

Flat Washer M6, Stainless

234062600

$0.77

21

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

22

Coolant Tank

276000265

$134.99

23

Pressure Cap | Includes 720 to 720a

276000100

$25.99

24

Was 275500549 Hose 1/4"

219704357

$194.99

25

Tridon Gear Clamp

293650170

$1.99

26

Radiator Hose This part replaces 276000240.

276000491

$49.99

27

Tridon Gear Clamp

293650185

$13.99

28

Tridon Gear Clamp

293650185

$13.99

29

Radiator Hose

276000241

$32.99

30

Tridon Gear Clamp

293650185

$13.99

31

Tridon Gear Clamp

293650185

$13.99

32

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

33

Spring Clamp

293650115

$3.09

34

Tridon Gear Clamp

293650019

$5.82

35

Polyurethane Hose 10000Mm Long

219704410

$56.99

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

37

Tubing 25 MM 1000MM Long

219704402

$15.99

38

Tie-Rap 180 mm

414115200

$0.11

39

Polyurethane Hose 10000Mm Long

219704410

$56.99
