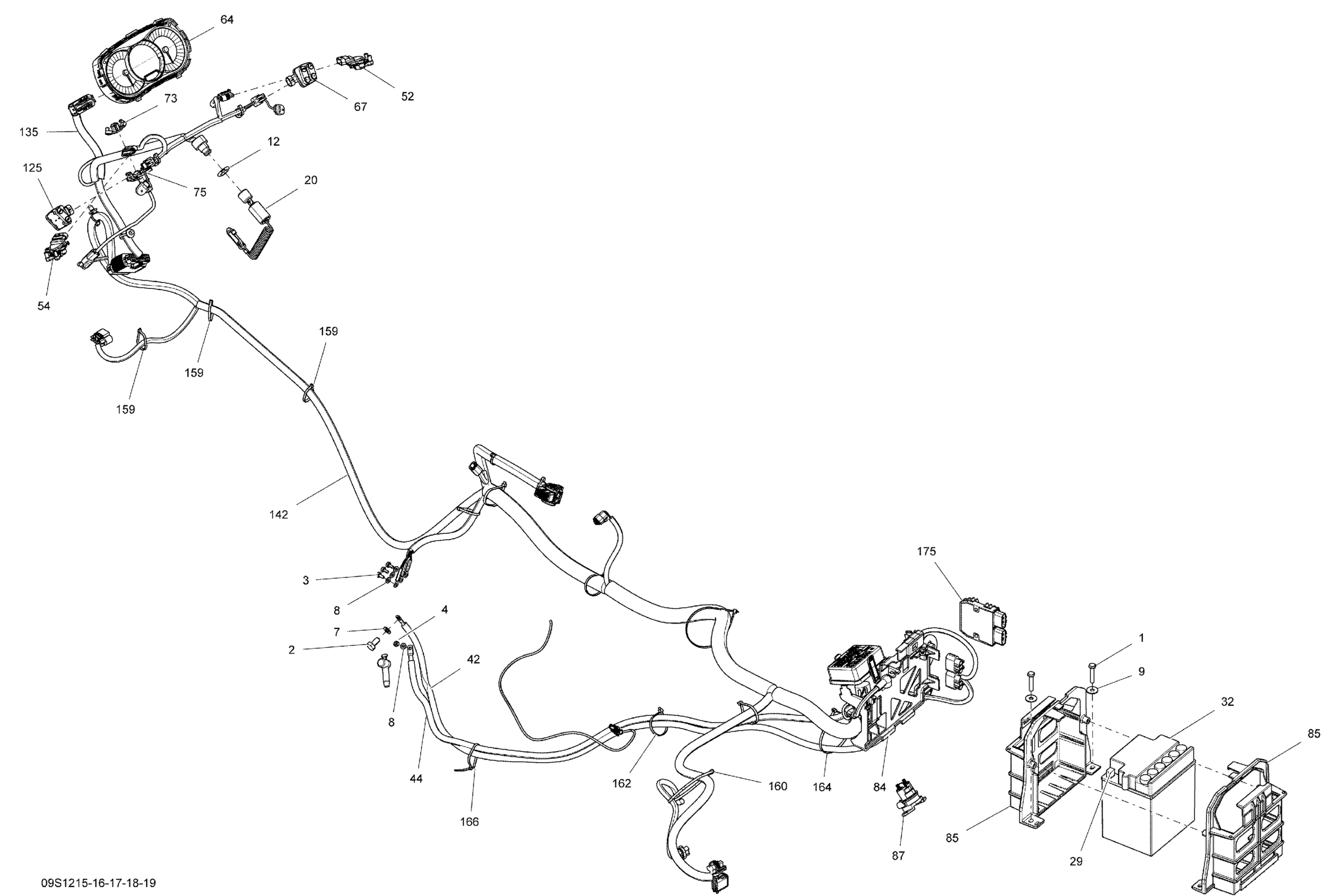

Sea-doo GTX 155, 2012 Electrical System Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$2.22

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Elastic Stop Nut M6, Brass

232561200

$4.23

7

Flat Washer 10 mm, Stainless

234000600

$1.46

8

Stainless Flat Washer M6

234061600

$0.33

9

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Safety Nut (DESS Switch)

278002963

$3.28

20

Safety Lanyard, Antitheft

278002483

$58.49

20

Safety Lanyard, Learning Key

278002484

$56.99

29

Battery Bolt Kit

250000282

$7.29

32

Battery, 30 Amperes

278001882

$184.01

42

Battery Ground Cable

278003269

$41.49

44

Cable-Starter

278003398

$63.99

52

Throttle Position Sensor

278002283

$119.99

54

LH Throttle Sensor

278002284

$119.99

64

Cluster LCD This part replaces 278002718.

278003005

$1.00

67

Switch RH Mode/Set

278002602

$126.99

73

O.T.A.S Actuator

278003537

$42.99

75

O.T.A.S. Sensor Ass'y

278003009

$109.99

84

Support

278003048

$21.99

85

Battery Support

278003306

$20.99

87

Starter Relay

278003012

$42.49

125

Switch LH Sport/Eco

278002768

$83.49

135

Steering Handle Harness | Includes 1 to 2055

278002788

$479.99

142

Wiring Harness | Includes 101 To 2057

278002941

$919.99

159

Tie Wrap 368 mm

293750008

$1.04

160

Tie Wrap 368 mm

293750008

$1.04

162

Tie-Rap 180 mm

414115200

$0.11

164

Tie Wrap 368 mm

293750008

$1.04

166

Tie Wrap 368 mm

293750008

$1.04

175

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99
