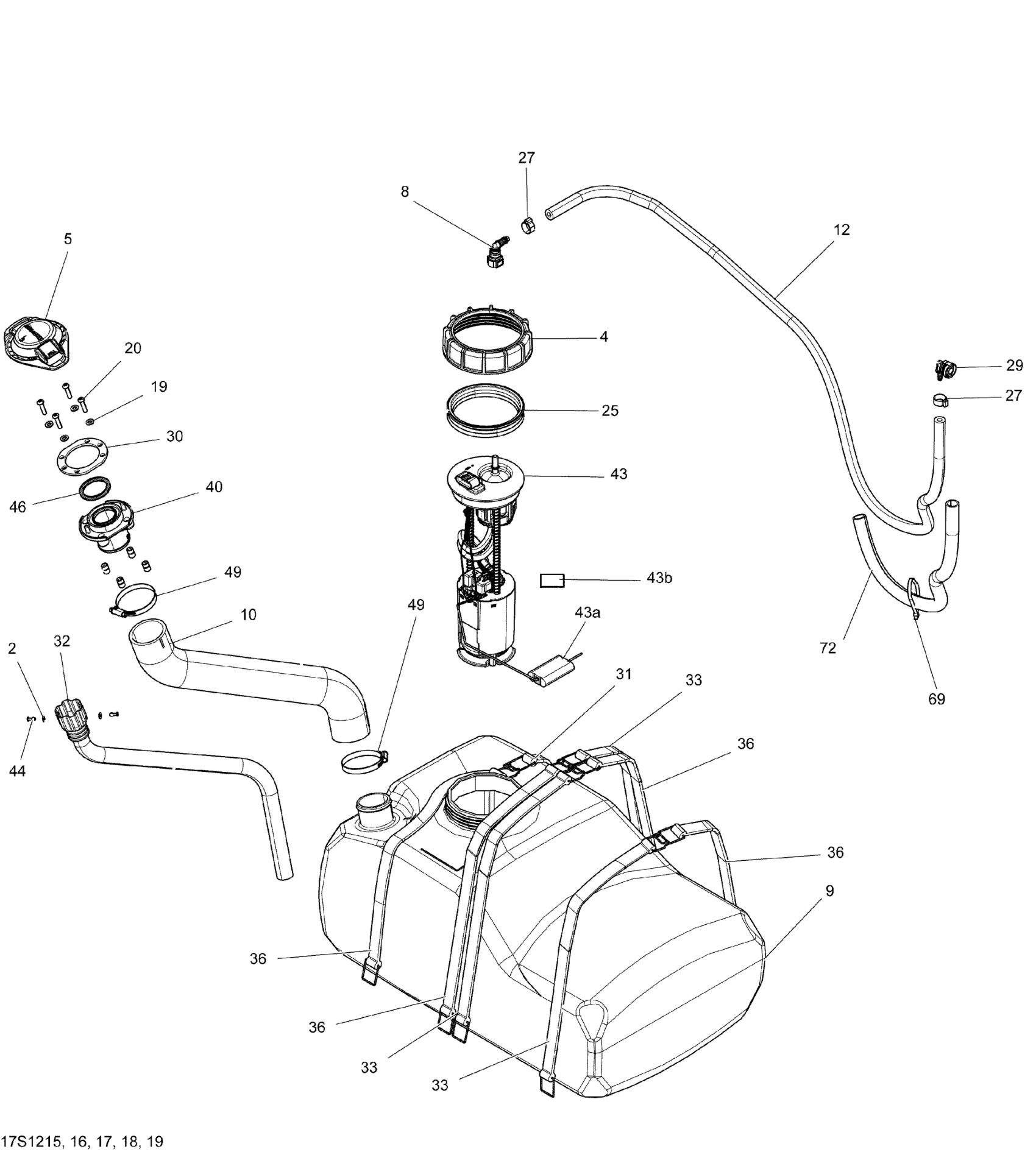

Sea-doo GTX 155, 2012 Fuel System Diagram

#

Description
Price

2

Flat Washer M3, Stainless

234032600

$0.55

4

Special Nut M130

250100062

$21.99

5

Fuel Cap Ass'y

275500832

$69.99

8

Quick Attach 90°

275500700

$16.49

9

Fuel Tank

275500962

$359.99

10

HOSE - Call your local BRP dealership

275500917

Unavailable

12

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

19

Stainless Flat Washer M6

234061600

$0.33

20

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

25

Gasket

293250173

$18.49

27

Crimp Clamp

293650053

$3.09

29

Elbow Fitting 90°

293710105

$14.22

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Fuel Tank Strap

293850087

$19.99

32

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

33

Fuel Tank Strap

293850093

$21.99

36

Fuel Tank Strap

293850101

$17.49

40

Fuel Filler Neck

275500848

$39.49

43

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

43a

Sensor Lever

275500780

$224.99

43b

Fuel Filter

270600113

$33.99

44

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

46

X-Ring

293300139

$23.99

49

Norma Clamp

293650081

$12.18

69

Tie Wrap 368 mm

293750008

$1.04

72

Tubing 16 Mm 1000Mm Long

219704408

$7.49
