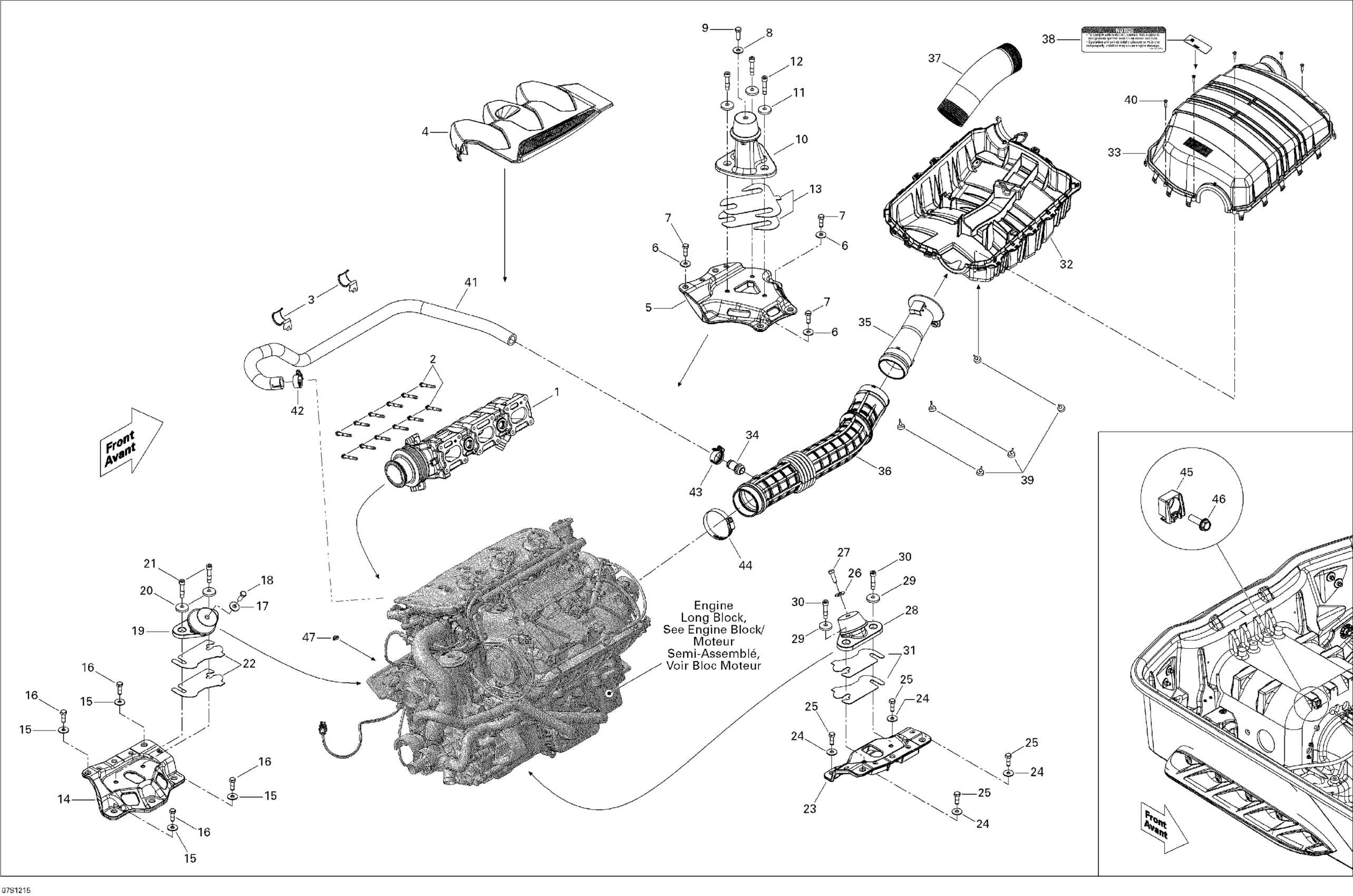

Sea-doo GTX 155, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

2

Torx Flange Screw M6 X 45

420641198

$4.12

3

Retainer

275500664

$14.75

4

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

5

SPACER - Call your local BRP dealership

270000767

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

10

Rubber Mount

270000886

$129.99

11

Cone Washer

250200018

$5.61

12

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

13

Shim 1.3 mm

270000770

$16.49

14

SPACER - Call your local BRP dealership

270000763

Unavailable

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

19

Engine Support Ass'y

270001081

$109.99

20

Cone Washer

250200018

$5.61

21

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

22

Shim 1.3 mm

270000762

$12.99

23

Spacer

270000766

$78.49

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

28

Engine Support Ass'y

270001081

$109.99

29

Cone Washer

250200018

$5.61

30

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

31

Shim 1.3 mm

270000762

$12.99

32

Airbox Base

273000354

$57.99

33

Airbox Cover

273000371

$73.99

34

Breather Valve

273000234

$14.49

35

INTAKE HOSE - Call your local BRP dealership

273000291

Unavailable

36

HOSE CONNECTOR - Call your local BRP dealership | Engine 1503 NA 4-TEC

273000295

Unavailable

37

Air Silencer Hose

273000290

$22.49

38

Air Silencer Notice Decal

219903177

Unavailable

39

Rubber Stopper

708000759

$4.19

40

Flange Torx Screw K40 X 16

250000287

$2.11

41

Formed Hose

270000949

$47.99

42

Tridon Gear Clamp

293650051

$4.19

43

Tridon Gear Clamp

293650051

$4.19

44

Tridon Clamp

293650179

$11.49

45

Strap Anchor

270000854

$7.76

46

Hex. Flange Screw M6.81 x 20

243162060

$3.72

47

Tie Wrap 142 mm

293750002

$1.25
