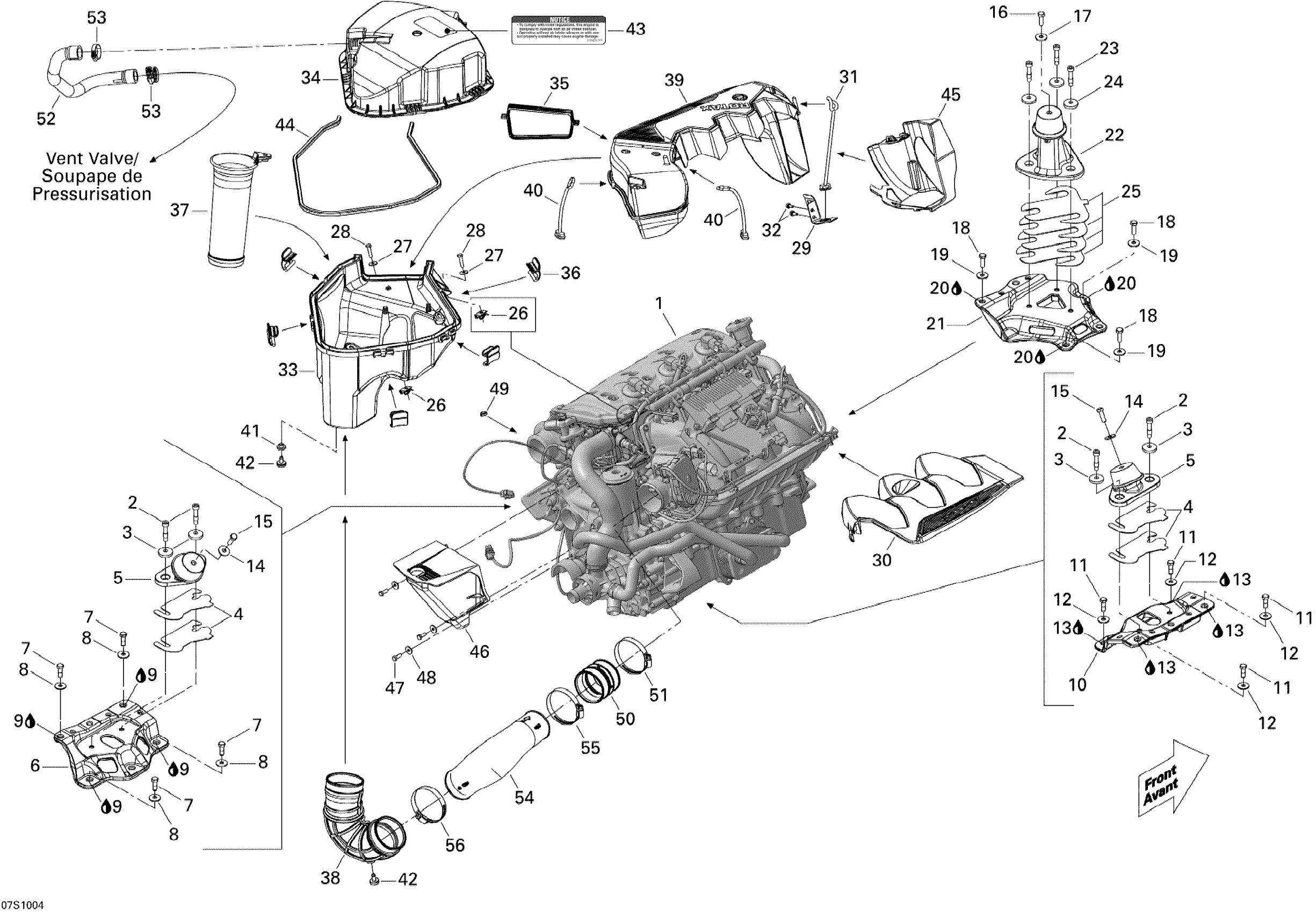

Sea-doo GTX 155, 2010 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150318.

420150392

$3,799.99

1

Engine Long Block This part replaces 420150318.

420150392

$3,799.99

2

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.73

3

Cone Washer

250200018

$5.33

4

Shim 1.3 mm

270000762

$10.37

5

Engine Support Ass'y

270001081

$96.99

6

SPACER - Call your local BRP dealership

270000763

Unavailable

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

8

Flat Washer 8 mm, Stainless

234082600

$2.27

9

Loctite 271, 10 ml

293800005

$23.85

10

Spacer

270000766

$73.10

11

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

12

Flat Washer 8 mm, Stainless

234082600

$2.27

13

Loctite 271, 10 ml

293800005

$23.85

14

Flat Washer 8 mm, Stainless

234082600

$2.27

15

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

16

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

17

Flat Washer 8 mm, Stainless

234082600

$2.27

18

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

19

Flat Washer 8 mm, Stainless

234082600

$2.27

20

Loctite 271, 10 ml

293800005

$23.85

21

SPACER - Call your local BRP dealership

270000767

Unavailable

22

Rubber Mount

270000886

$113.40

23

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.73

24

Cone Washer

250200018

$5.33

25

Shim 1.3 mm

270000770

$14.76

26

Panel Nut M6 X 1

420942108

$13.18

27

Flat Washer M6, Stainless

234062600

$0.73

28

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.40

29

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

30

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$64.15

31

Strap

273000261

$14.45

32

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

33

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

34

Air Silencer Upper

273000249

$55.19

35

SEAL - Call your local BRP dealership

293250190

$13.70

36

Clip

269501718

$14.90

37

Intake Hose

273000359

$44.00

38

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

39

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

40

Strap

269501299

$17.13

41

GROMMET - Call your local BRP dealership

293720064

Unavailable

42

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

43

Air Silencer Notice Decal

219903177

Unavailable

44

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

45

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

46

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

47

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

48

Flat Washer M6, Stainless

234062600

$0.73

49

Tie Wrap 142 mm

293750002

$1.01

50

Intake Fitting

273000277

$26.09

51

Tridon Clamp

293650179

$10.12

52

Formed Hose

270000807

$51.46

53

Tridon Gear Clamp

293650051

$4.15

54

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

55

Tridon Clamp

293650179

$10.12

56

Tridon Clamp

293650179

$10.12
