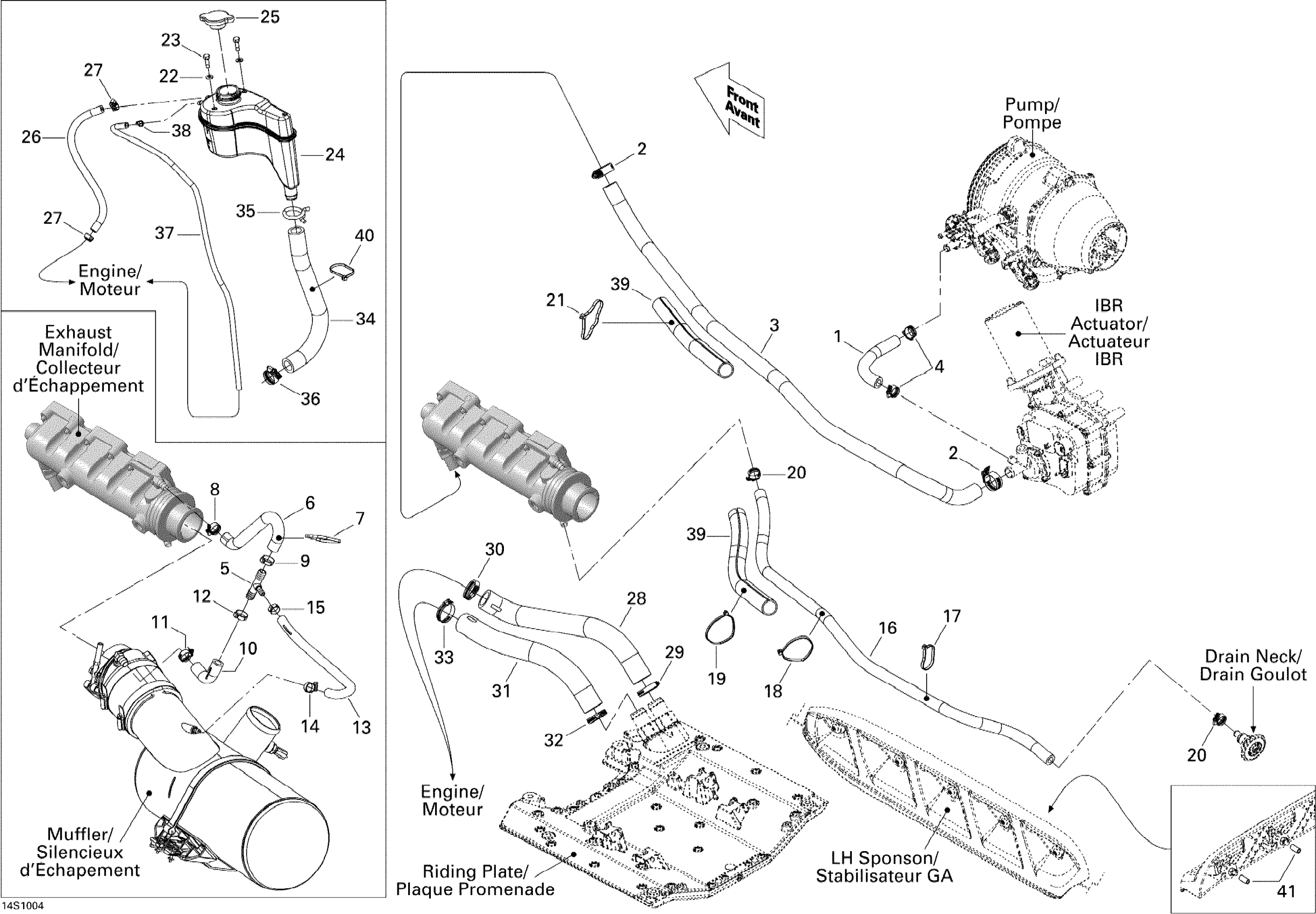

Sea-doo GTX 155, 2010 Cooling System Diagram

#

Description
Price

1

FORMED HOSE - Call your local BRP dealership

276000237

Unavailable

2

Tridon Gear Clamp

293650051

$3.61

3

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

4

Tridon Gear Clamp

293650172

$2.68

5

T-Fitting

293710116

$14.27

6

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

7

Tie Wrap 368 mm

293750008

$0.85

8

Tridon Gear Clamp

293650172

$2.68

9

Oetiker Clamp

293650012

$4.94

10

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

11

Tridon Gear Clamp

293650172

$2.68

12

Oetiker Clamp

293650012

$4.94

13

Formed Hose | Without Catalyst

276000246

$14.92

14

Tridon Gear Clamp

293650171

$2.46

15

Oetiker Clamp | Europe

293650030

$4.32

16

Was 276000001 Hose 12.5 mm

219704394

$42.87

17

Tie Wrap 368 mm

293750008

$0.85

18

Tie Wrap 368 mm

293750008

$0.85

19

Tie Wrap 368 mm

293750008

$0.85

20

Tridon Gear Clamp

293650172

$2.68

21

Tie Wrap 368 mm

293750008

$0.85

22

Stainless Flat Washer M6

234061600

$0.25

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

24

Coolant Tank

276000265

$102.67

25

Pressure Cap | Includes 720 to 720a

276000100

$20.77

26

Was 275500549 Hose 1/4"

219704357

$183.82

27

Tridon Gear Clamp

293650170

$1.74

28

Radiator Hose This part replaces 276000240.

276000491

$40.27

29

Tridon Gear Clamp

293650185

$10.91

30

Tridon Gear Clamp

293650185

$10.91

31

Radiator Hose

276000241

$32.28

32

Tridon Gear Clamp

293650185

$10.91

33

Tridon Gear Clamp

293650185

$10.91

34

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

35

Spring Clamp

293650115

$2.46

36

Tridon Gear Clamp

293650019

$4.81

37

Polyurethane Hose 10000Mm Long

219704410

$46.12

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

39

Tubing 25 MM 1000MM Long

219704402

$12.69

40

Tie-Rap 180 mm

414115200

$0.09

41

Polyurethane Hose 10000Mm Long

219704410

$46.12
