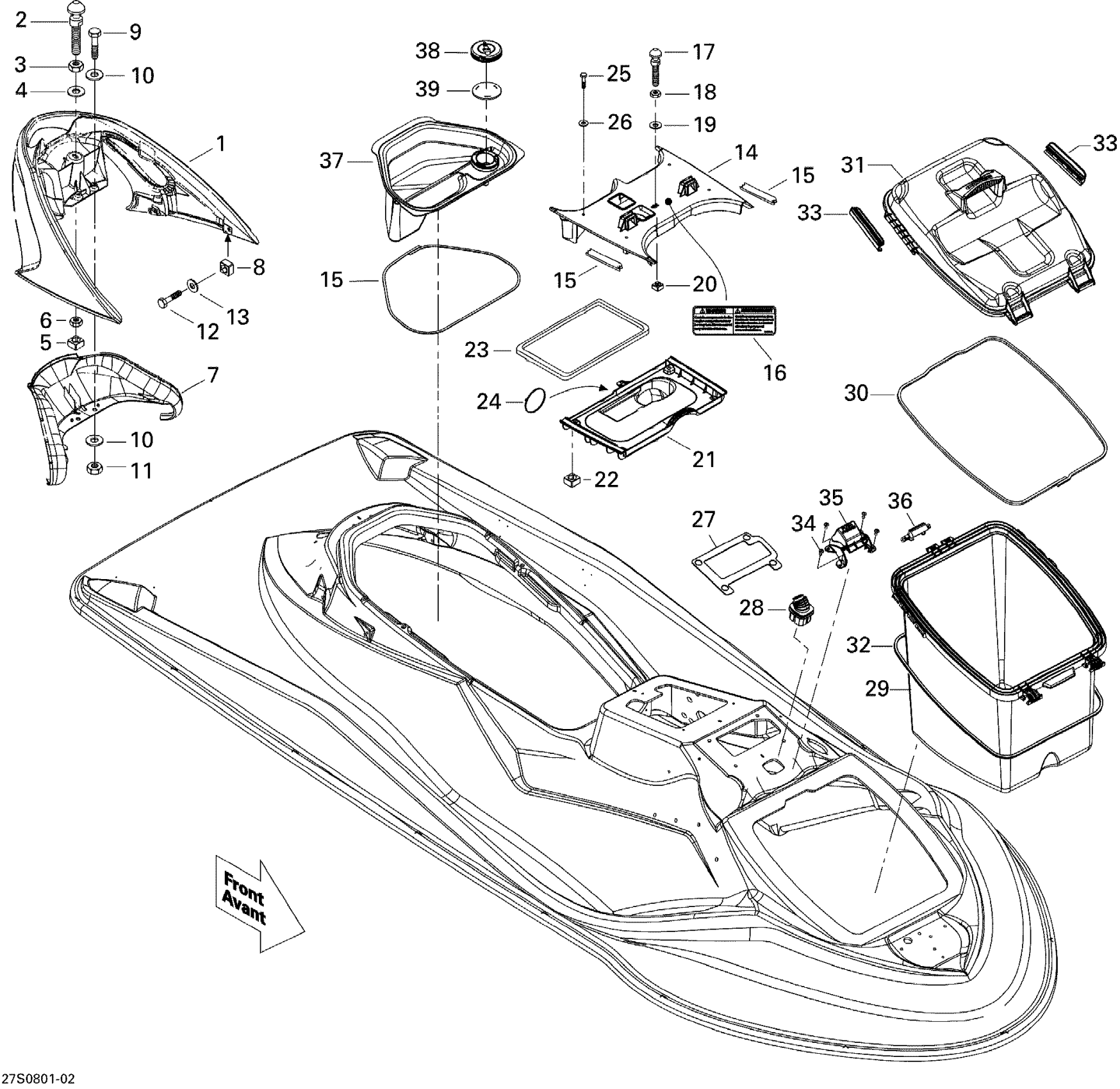

Sea-doo GTX 155, 2008 09- Body, Front View Diagram

#

Description
Price

1

GRAB HANDLE, BLACK - Call your local BRP dealership

269000722

Unavailable

2

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

3

Hex. Jam Nut M10

232100600

$2.22

4

Flat Washer 10 mm, Stainless

234002600

$2.22

5

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

6

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

7

HANDLE COVER, BLACK - Call your local BRP dealership

269000749

Unavailable

8

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

9

Hex. Screw M8 X 45

207084560

$3.38

10

Stainless, Flat Washer 8 mm

234081600

$0.55

11

Hex. Elastic Nut M8 Brass

232581200

$2.22

12

Hex. Screw M6 X 25

207162560

$1.47

13

Flat Washer M6, Stainless

234062600

$0.77

14

UPPER BRIDGE, BLACK - Call your local BRP dealership

291002136

Unavailable

15

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

16

WARNING DECAL, SECURITY - Call your local BRP dealership

219902643

Unavailable

17

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

18

Hex. Jam Nut M10

232100600

$2.22

19

Flat Washer 10 mm, Stainless

234002600

$2.22

20

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

21

LOWER BRIDGE - Call your local BRP dealership

291002614

Unavailable

22

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

23

GASKET - Call your local BRP dealership

293200090

Unavailable

24

Tie Rap, 533 mm

293750047

$2.09

25

Hex. Screw M6 X 75

207167560

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

GASKET - Call your local BRP dealership

293250171

Unavailable

28

GROMMET - Call your local BRP dealership

293720042

Unavailable

29

STORAGE BOX - Call your local BRP dealership

269501583

Unavailable

30

Gasket 1000Mm Long

219704374

$2.01

31

STORAGE BOX COVER - Call your local BRP dealership

269501585

Unavailable

32

GASKET - Call your local BRP dealership

293250174

Unavailable

33

Clip

269501609

$16.17

34

Pop Rivet 3/16"

293150123

$4.29

35

LATCH BASE - Call your local BRP dealership

291002487

Unavailable

36

Latch

291002488

Unavailable

37

Rear Tray

269501036

Unavailable

38

COVER - Call your local BRP dealership

269000788

Unavailable

39

COVER SEAL - Call your local BRP dealership

269000810

Unavailable
