01- Exhaust System

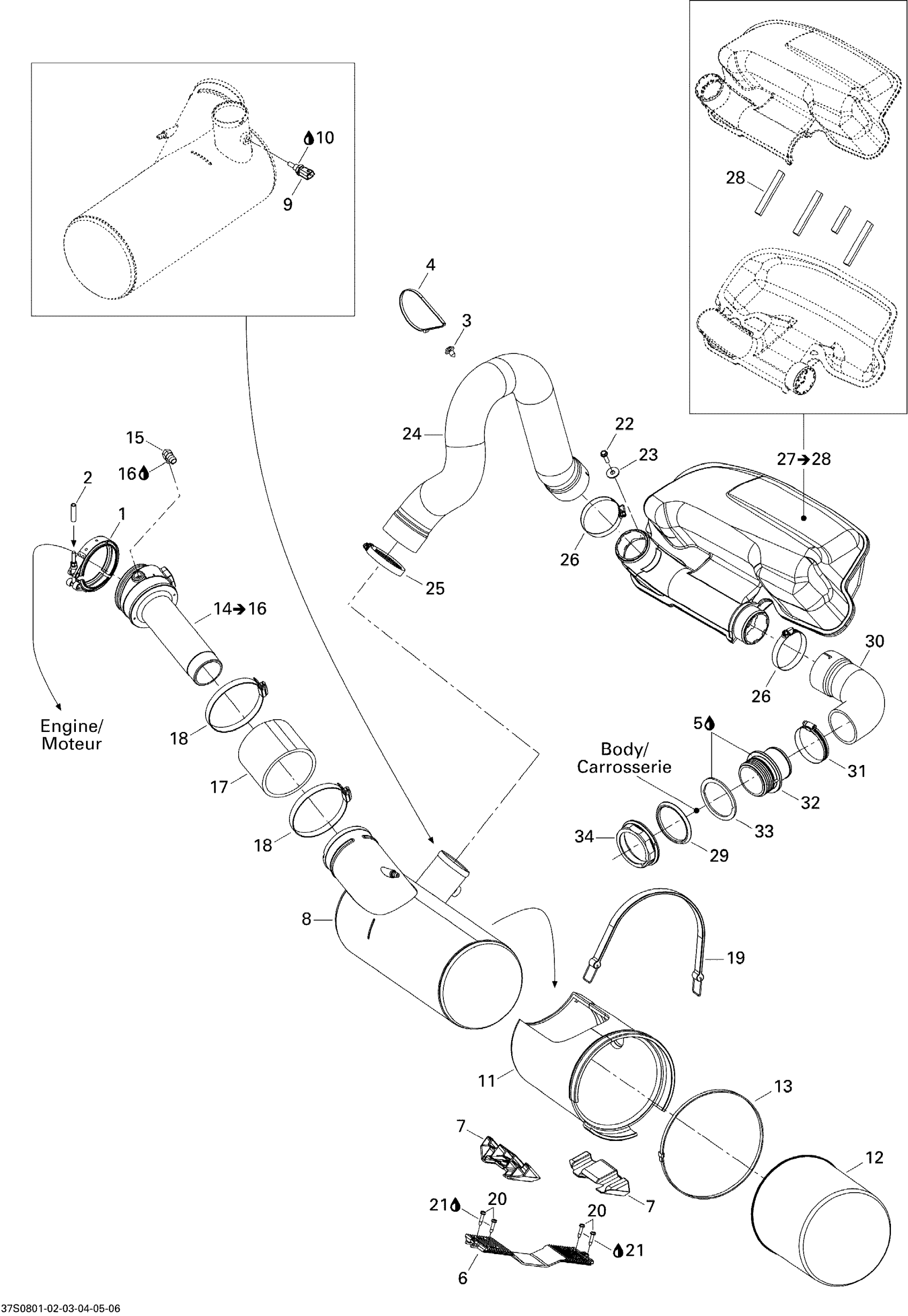

Sea-doo GTX 155, 2008 01- Exhaust System Diagram
#
Description
Price
1
Exhaust Clamp
274001417
$58.99
2
Polyurethane Hose 10000Mm Long
219704410
$56.99
3
Mount Dart
293730040
$1.04
4
Tie Wrap 368 mm
293750008
$1.04
5
Silicone Sealant 51388, 300 ml
296000309
$36.99
6
Exhaust Muffler Support This part replaces 274001357.
274001479
$18.54
7
Stopper
274001721
$19.09
8
MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst
274001350
Unavailable
9
Temperature Sensor
278002895
$39.99
10
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
11
Muffler Cover
274001351
Unavailable
12
COVER_MUFFLER REAR - Call your local BRP dealership
274001344
Unavailable
13
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
14
NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.
423462834
$194.99
15
Elbow Fitting 90° | Without Catalyst
293700023
$20.99
16
Was 293800013 Loctite 56765
219704454
$65.99
17
Hose | Without Catalyst
274001348
$24.49
18
Tridon Clamp
293650054
$9.49
19
Fuel Tank Strap
293850093
$21.99
20
Hex. Screw 10-14 X 7/8”
211000023
$3.59
21
Loctite 271, 10 ml
293800005
$26.99
22
Hex. Flange Screw M6.81 X 25, Plastite
243162560
$2.19
23
Flat Washer 8 mm, Stainless
234082600
$2.43
24
Front Exhaust Hose This part replaces 274001424.
274001708
$89.99
25
Tridon Clamp
293650179
$11.49
26
Tridon Clamp
293650179
$11.49
27
Resonator
274001366
$169.49
28
Neoprene Seal (1PAC=3M)
219704364
$27.49
29
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
30
REAR EXHAUST HOSE - Call your local BRP dealership
274001428
Unavailable
31
Tridon Clamp
293650179
$11.49
32
Exhaust Hose, Outlet
274001391
$29.49
33
GASKET - Call your local BRP dealership
293250203
Unavailable
34
Nut 72 mm
274000224
$16.34
