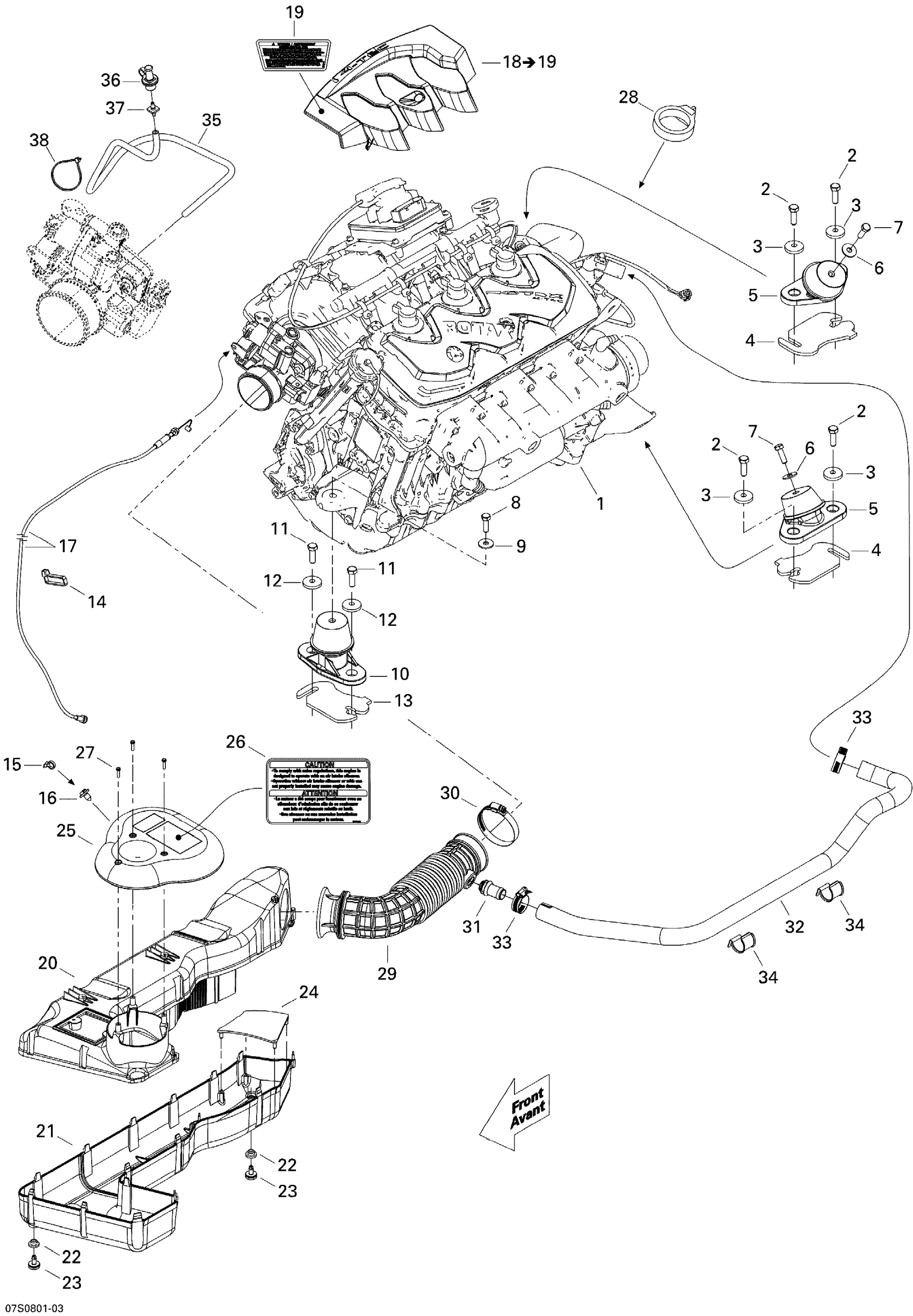

Sea-doo GTX 155, 2008 01- Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block, 1503 NA

420150315

Unavailable

55

Engine Long Block This part replaces 420150318.

420150392

$4.00

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.61

4

Shim 1.3 mm

270000762

$12.99

5

Engine Support Ass'y

270001081

$109.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Engine Support Ass'y

270001096

$97.99

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.61

13

Shim 1.3 mm

270000762

$12.99

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 142 mm

293750002

$1.25

16

Mount Dart

293730040

$1.04

17

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

18

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

19

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

20

AIR SILENCER UPPER - Call your local BRP dealership

273000244

Unavailable

21

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

22

GROMMET - Call your local BRP dealership

293720064

Unavailable

23

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

24

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

25

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

26

Caution Decal, Air Silencer

219902673

Unavailable

27

Hex. Flange Screw K40 X 16

241141660

$1.48

28

Tie Wrap 142 mm

293750002

$1.25

29

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

30

Tridon Clamp

293650179

$11.49

31

Breather Valve

273000234

$14.49

32

Formed Hose

270000949

$47.99

33

Tridon Gear Clamp

293650051

$4.19

34

Retainer

275500664

$14.75

35

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

36

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

37

CONNECTOR - Call your local BRP dealership

293710107

$1.09

38

Tie Wrap 142 mm

293750002

$1.25
