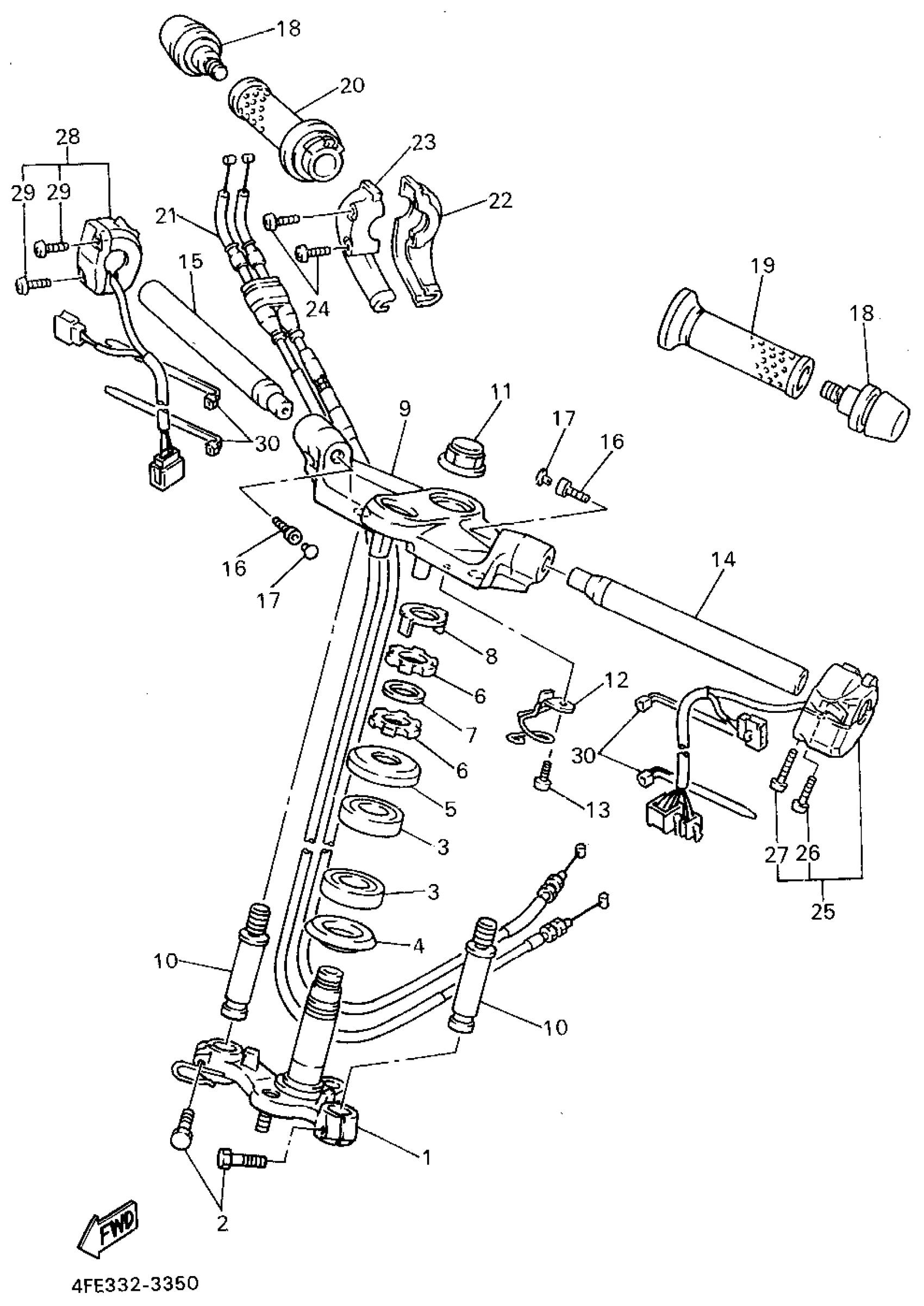

Yamaha GTS1000AFC (GTS1000A CA) 1994 STEERING HANDLE CABLE Diagram

#

Description
Price

1

UNDER BRACKET COMP.

4BH-23340-00-00

Unavailable

2

BOLT

90101-06757-00

Unavailable

3

BEARING(3FV)

93399-99931-00

$57.99

4

SEAL, DUST

164-23462-00-00

$7.99

5

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

6

NUT(3XP)

90179-25615-00

$26.99

7

WASHER, PLATE (26H)

90202-26142-00

$9.49

8

WASHER, SPECIAL

3YF-23418-00-00

Unavailable

9

CROWN, HANDLE

4BH-23435-00-P1

Unavailable

10

BOSS

4BH-2612F-00-00

Unavailable

11

NUT, CROWN(4FM)

90176-22081-00

$34.99

12

GUIDE, CABLE 1

4BH-26131-00-00

Unavailable

13

SCREW, BINDING

98907-06008-00

$8.49

14

HANDLEBAR

4BH-26111-00-00

Unavailable

15

BAR, HANDLE

4BH-26112-00-00

Unavailable

16

BOLT, SOCKET

91317-08025-00

Unavailable

17

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

18

END, GRIP

4BH-26246-00-00

Unavailable

19

GRIP (LEFT)

1KG-26241-00-00

Unavailable

20

GRIP ASSY

3FH-26240-00-00

Unavailable

21

THROTTLE CABLE ASSEMBLY

4BH-26302-00-00

Unavailable

22

CAP, GRIP UPPER

3XW-26281-01-00

Unavailable

23

CAP, GRIP UNDER

3XW-26282-01-00

Unavailable

24

SCREW, PAN

98507-05035-00

Unavailable

25

SWITCH, HANDLE 3

4HH-83973-00-00

Unavailable

26

SCREW, PAN HEAD

98517-05030-00

Unavailable

27

SCREW, PAN

98507-05040-00

Unavailable

28

SWITCH,HANDLE 2

4FE-83975-00-00

Unavailable

29

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

30

CLAMP(4FM)

90464-15195-00

Unavailable
