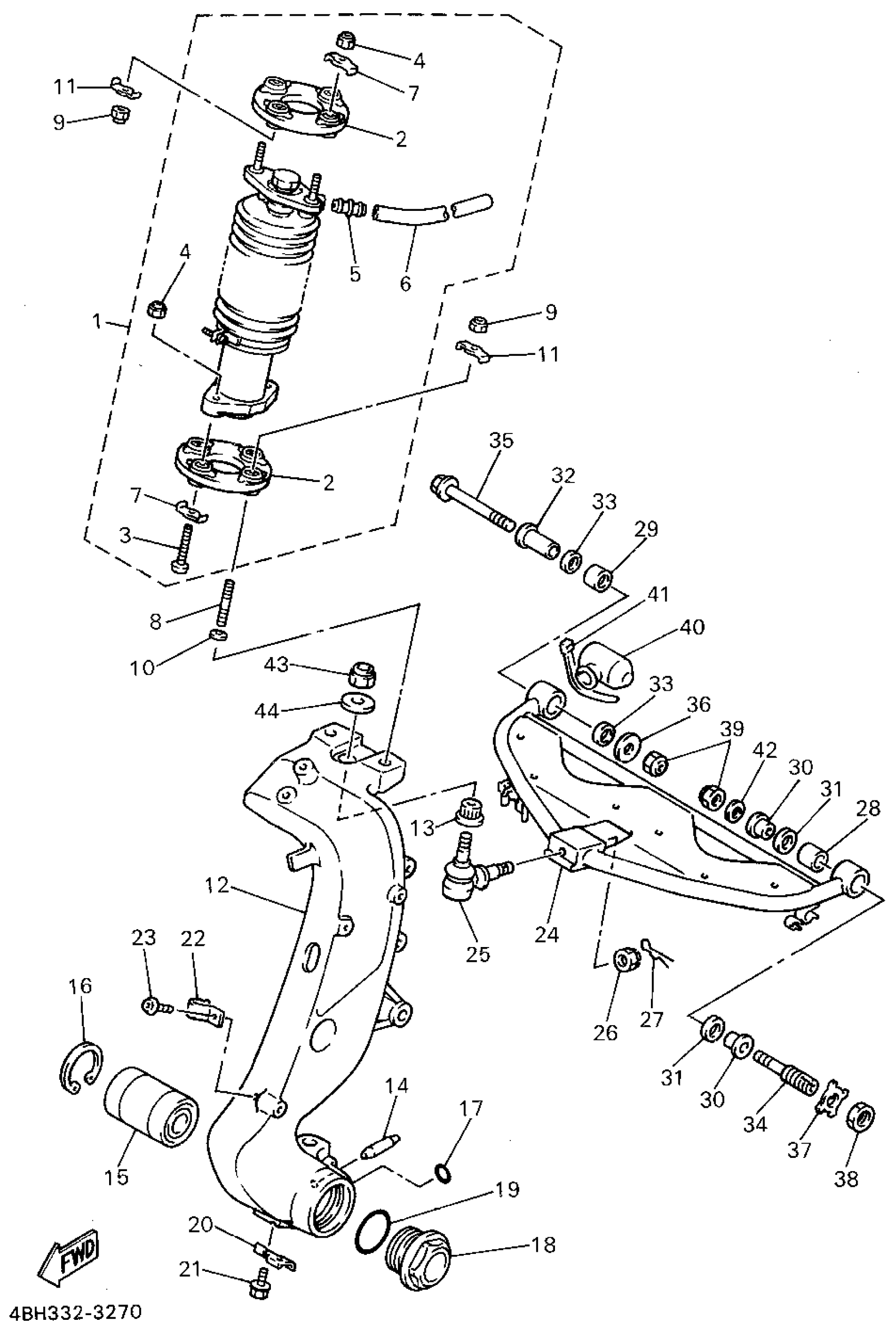

Yamaha GTS1000AFC (GTS1000A CA) 1994 STEERING Diagram
#
1
TUBE STEERING COMP.
4BH-23530-00-00
Unavailable
2
. JOINT, RING
4BH-2353A-00-00
Unavailable
5
. TUBE, CONNECTING
4BH-24119-00-00
Unavailable
6
. HOSE
4BH-2384R-00-00
Unavailable
7
WASHER, SPECIAL
4BH-23392-00-00
Unavailable
11
WASHER, SPECIAL
4BH-23392-00-00
Unavailable
12
ARM, KNUCKLE 1
4BH-23512-10-P1
Unavailable
13
BUSH
4BH-23526-00-00
Unavailable
14
PIN, SPRING
91609-40032-00
Unavailable
15
BEARING
93307-20602-00
Unavailable
16
CIRCLIP(MF1)
99009-62500-00
Unavailable
17
O-RING (1L9)
93210-18322-00
Unavailable
18
CAP 1
4BH-23741-00-00
Unavailable
19
O-RING(2HR)
93210-59748-00
Unavailable
20
PLATE, SUPPORT
4BH-2332U-00-00
Unavailable
21
BOLT, FLANGE
95812-06010-00
Unavailable
22
HOLDER, CABLE
4BH-23317-00-00
Unavailable
23
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
24
FRONT UPPER ARM COMP. (LEFT)
4FE-23540-00-33
Unavailable
25
BALL JOINT 1
4BH-23549-00-00
Unavailable
26
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
27
CLIP
90468-20100-00
Unavailable
28
. BEARING
93399-99901-00
Unavailable
29
BRG,CYL-CAL ROLLER 20G NT
93317-31701-00
Unavailable
30
COLLAR
90387-1200E-00
Unavailable
31
OIL SEAL
93104-15101-00
Unavailable
32
COLLAR 2
4BH-23364-00-00
Unavailable
33
OIL SEAL(38V)
93109-17048-00
Unavailable
34
BOLT, FITTING 1
4BH-23451-00-00
Unavailable
35
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
36
WASHER, PLATE (4X7)
90201-105A2-00
Unavailable
37
WASHER, SPECIAL
4BH-23418-00-00
Unavailable
38
NUT(3MA)
90170-18392-00
Unavailable
39
NUT, U
95614-10100-00
Unavailable
40
COVER, DUST
4BH-2384L-00-00
Unavailable
41
BAND
1UA-82591-00-00
Unavailable
42
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
43
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
44
WASHER, PLATE (8K2)
90201-120A5-00
Unavailable
