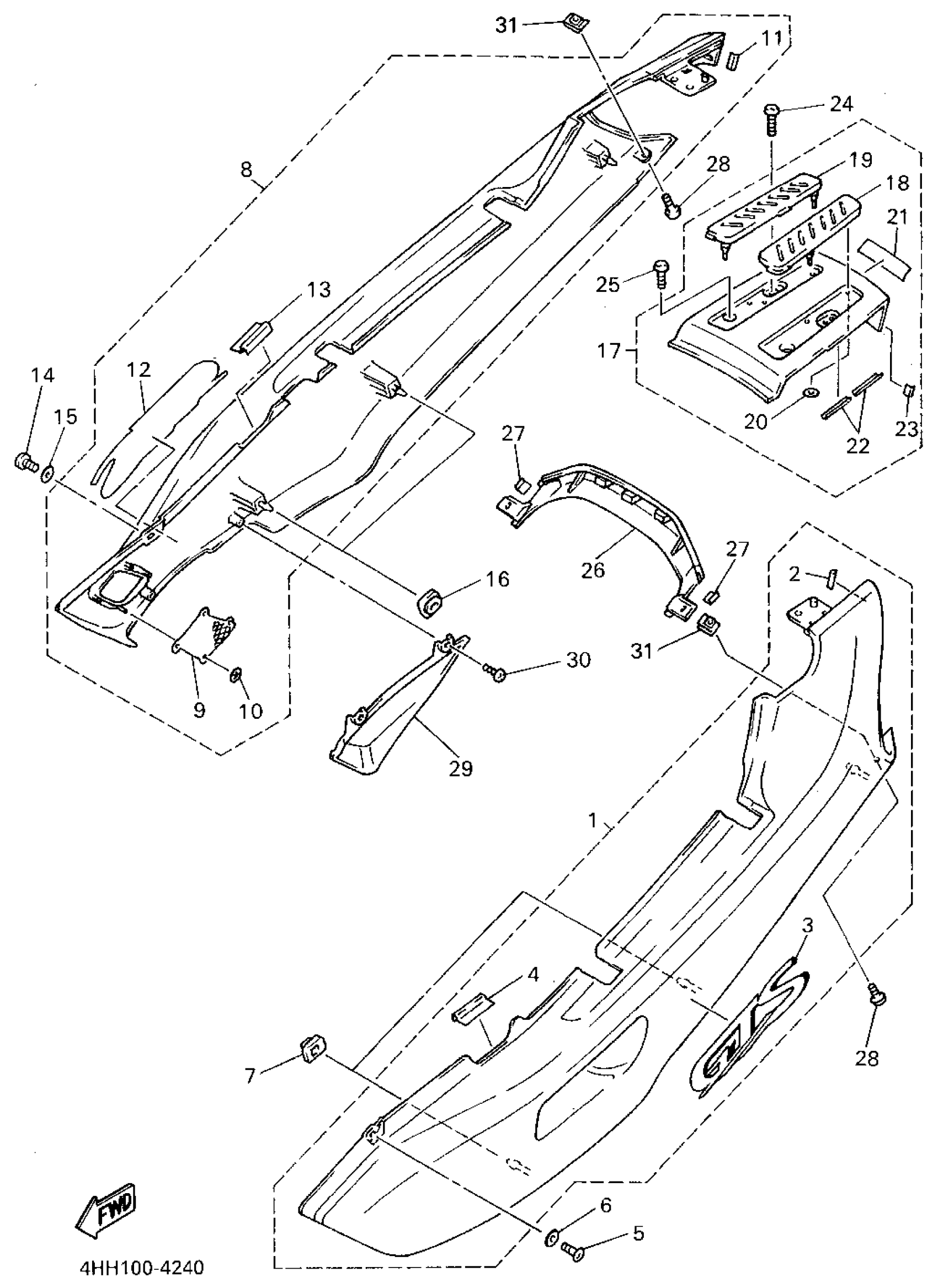

Yamaha GTS1000AFC (GTS1000A CA) 1994 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 1
4BH-Y2171-80-P4
Unavailable
2
LABEL
3TU-2178A-00-00
Unavailable
3
. EMBLEM
4BH-21737-00-00
Unavailable
7
GROMMET
90480-01510-00
Unavailable
8
COVER, SIDE 2
4BH-Y2172-80-P4
Unavailable
9
. PANEL 1
4BH-2172A-00-00
Unavailable
11
LABEL
3TU-2178A-00-00
Unavailable
12
. EMBLEM 2
4FE-21782-00-00
Unavailable
16
GROMMET
90480-01510-00
Unavailable
17
COVER, REAR FENDER
4BH-Y2165-50-P4
Unavailable
18
. DAMPER 2
4BH-21639-00-00
Unavailable
19
. DAMPER
4BH-21649-00-00
Unavailable
20
NUT SPRING 116283170100
90183-04005-00
Unavailable
21
EMBLEM, YAMAHA
99247-00080-00
Unavailable
22
SEAL
46X-21269-00-00
Unavailable
23
LABEL
3TU-2178A-00-00
Unavailable
24
SCREW, BIND(J45)
98980-06012-00
Unavailable
25
SCREW, BIND (705)
98980-06016-00
Unavailable
26
COVER, TAILLIGHT
4BH-2172X-00-P4
Unavailable
27
PROTECTOR
3MA-27491-00-00
Unavailable
29
COVER, SIDE 3
4FE-21731-00-00
Unavailable
30
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
31
NUT, SPRING (26H)
90183-06023-00
Unavailable
