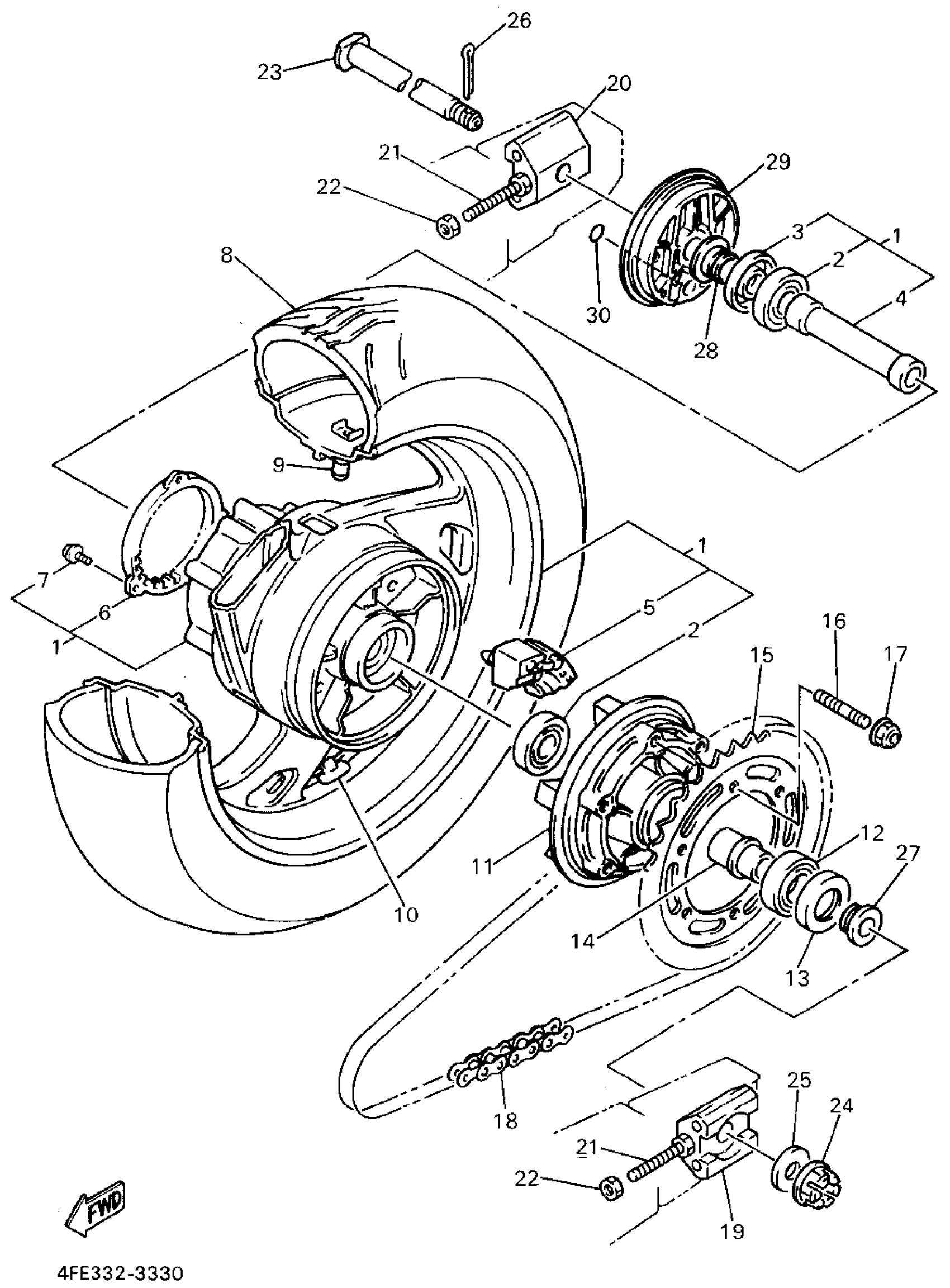

Yamaha GTS1000AFC (GTS1000A CA) 1994 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

4FE-25370-00-P0

Unavailable

2

BEARING(3BC)

93306-30437-00

$66.99

3

OIL SEAL(3BC)

93106-30029-00

$15.99

4

. SPACER

90560-20386-00

Unavailable

5

DAMPER

2GH-25364-00-00

$44.99

6

. ROTOR, SENSOR

3YA-2517G-00-00

Unavailable

7

SCREW, WITH WASHER(2JA)

90159-05155-00

$1.07

8

TIRE (170/60 ZR17 D202)

94117-176Y0-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

CLUTCH, HUB

36Y-25366-01-00

Unavailable

12

BEARING(3BC)

93306-30562-00

Unavailable

13

OIL SEAL(3BC)

93106-35030-00

Unavailable

14

COLLAR, WHEEL

36Y-25377-00-00

Unavailable

15

SPROCKET, DRVN 47T

2GH-25447-22-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING

90185-10170-00

Unavailable

18

CHAIN (DID532ZLVKA1-118L)

94581-57118-00

Unavailable

18

CHAIN (DID532ZLVKA1-118L)

94581-57118-00

Unavailable

19

PULLER, CHAIN 1

3GM-25388-00-00

Unavailable

20

PULLER, CHAIN 2

3GM-25389-00-00

Unavailable

21

BOLT(4SR)

90101-08777-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

AXLE, WHEEL

3GM-25381-10-00

Unavailable

24

NUT, CASTLE

90171-18051-00

Unavailable

25

WASHER, PLATE (5K7)

90201-18264-00

Unavailable

26

PIN, COTTER

91490-40045-00

Unavailable

27

COLLAR(3BC)

90387-203X0-00

Unavailable

28

COLLAR(3BC)

90387-202X9-00

Unavailable

29

HOUSING, SENSOR REAR

4FE-2537A-00-P0

Unavailable

30

O-RING (1L9)

93210-18322-00

Unavailable
