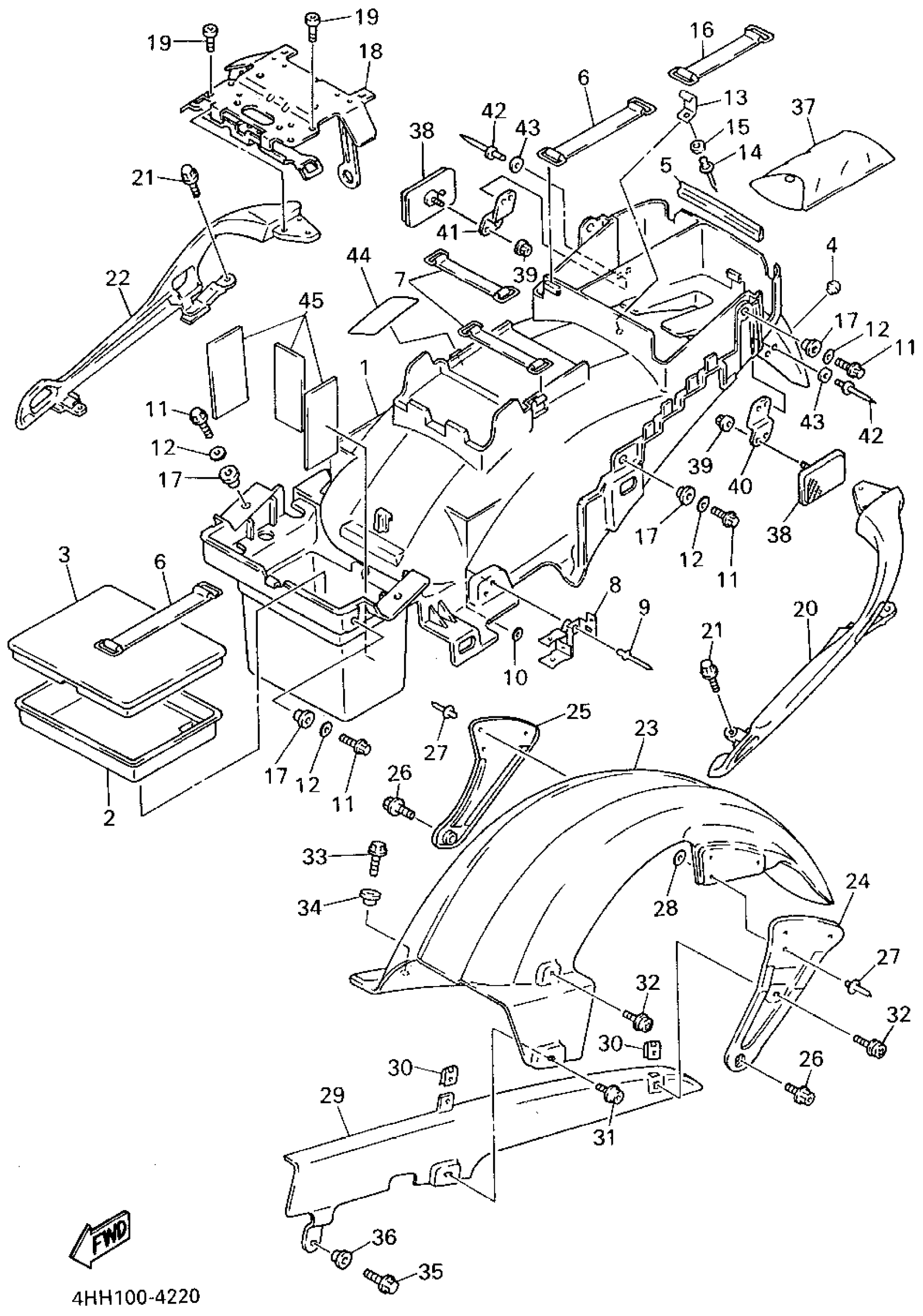

Yamaha GTS1000AFC (GTS1000A CA) 1994 REAR FENDER Diagram

#

Description
Price

1

GUARD, MUD

4FV-21629-00-00

Unavailable

2

CASE 1

4BH-2384G-00-00

Unavailable

3

CASE 2

4BH-2384H-00-00

Unavailable

4

PLUG

90338-07018-00

$7.49

5

MOLE, SIDE COVER 1

4WV-2171L-00-00

$8.99

6

BAND, BATTERY

26H-82131-00-00

$23.99

7

BAND, BATTERY

2T4-82131-00-00

$8.99

8

BRACKET, STARTER SWITCH

4BH-2139A-00-00

Unavailable

9

RIVET, BLIND(8R6)

90267-40105-00

Unavailable

10

WASHER, PLATE(26H)

90201-044H9-00

$8.49

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

HOOK, BAND

36Y-2175R-00-00

Unavailable

14

RIVET, BLIND(8R6)

90267-40105-00

Unavailable

15

WASHER, PLATE(26H)

90201-044H9-00

$8.49

16

BAND, BATTERY

26H-82131-00-00

$23.99

17

COLLAR (3L1)

90387-07717-00

Unavailable

18

BRACKET, TAILLIGHT

4BH-2117E-00-00

Unavailable

19

BOLT, SOCKET

91317-08016-00

Unavailable

20

STAY, REAR

4BH-21644-00-P4

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

STAY, REAR

4BH-21645-00-P4

Unavailable

23

REAR FENDER COMP.

4BH-21650-00-00

Unavailable

24

STAY 1

4BH-2164F-00-00

Unavailable

25

STAY 2

4BH-2164G-00-00

Unavailable

26

BOLT(2KF)

90109-085E2-00

Unavailable

27

RIVET, BLIND

90267-48162-00

Unavailable

28

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

Unavailable

29

CASE, CHAIN

4BH-22311-00-00

Unavailable

30

NUT, SPRING(4ES)

90183-06069-00

Unavailable

31

BOLT, WITH WASHER

90119-06242-00

Unavailable

32

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

33

BOLT, FLANGE

95817-06020-00

Unavailable

34

C0LLAR

90387-062M9-00

Unavailable

35

BOLT, FLANGE

95817-06025-00

Unavailable

36

COLLAR (3L6)

90387-06737-00

Unavailable

37

TOOL KIT

4BH-28100-01-00

Unavailable

38

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

39

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

40

BRACKET, REAR STAY 2

2LJ-21689-00-00

Unavailable

41

BRACKET, REAR STAY

2LJ-21688-00-00

Unavailable

42

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

43

WASHER, PLATE(26H)

90201-044H9-00

$8.49

44

PLATE, EPA

4HH-2179U-10-00

Unavailable

44

PLATE, EPA

4HH-2179W-10-00

Unavailable

45

SEAT, BATTERY

5Y1-82122-00-00

Unavailable
