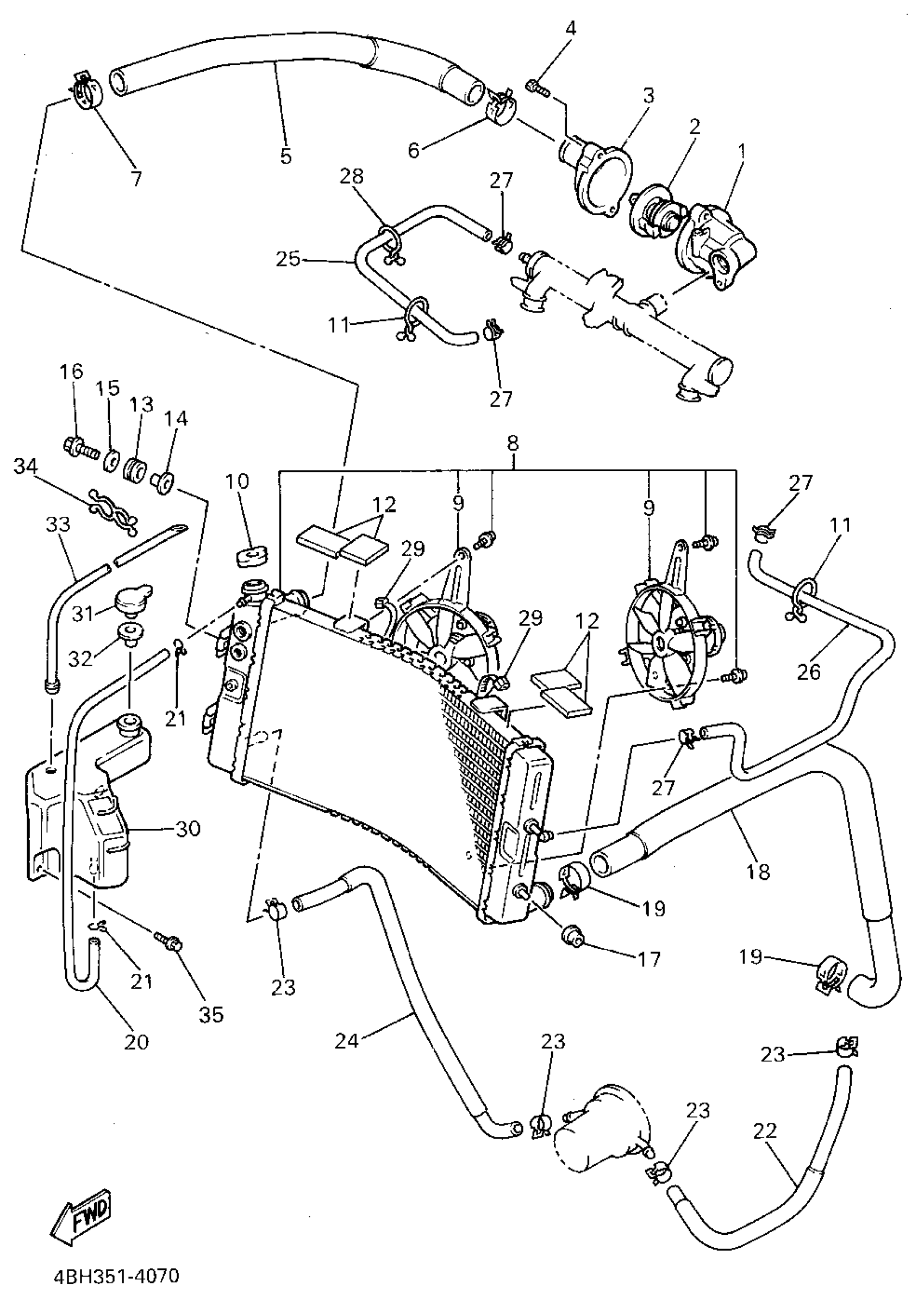

Yamaha GTS1000AFC (GTS1000A CA) 1994 RADIATOR HOSE Diagram

#

Description
Price

1

HOUSING, THERMOSTAT

3GM-12417-00-00

Unavailable

2

THERMOSTAT ASSY

3GM-12410-01-00

Unavailable

3

COVER, THERMOSTAT

3GM-12413-00-00

Unavailable

4

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

5

HOSE 1

4BH-12576-00-00

Unavailable

6

CLIP

90467-33143-00

Unavailable

7

CLIP (8M6)

90467-28046-00

$16.99

8

RADIATOR ASSEMBLY

4BH-1240A-00-00

Unavailable

9

. BLOWER ASSEMBLY

4BH-12405-00-00

Unavailable

10

CAP, RADIATOR

4FL-12462-00-00

$62.99

11

CLAMP

90464-18116-00

Unavailable

12

DAMPER, SUB TANK

3BB-22261-00-00

Unavailable

13

GROMMET (4L0)

90480-18276-00

$8.49

14

COLLAR 8111266500

90387-07037-00

$7.49

15

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

GROMMET

90480-20566-00

Unavailable

18

HOSE 2

4BH-12577-00-00

Unavailable

19

CLIP (8M6)

90467-28046-00

$16.99

20

HOSE (L600)

90445-083J5-00

Unavailable

21

CLIP 101235600

90467-08003-00

Unavailable

22

HOSE 5

4BH-12588-00-00

Unavailable

23

CLIP

90467-15141-00

Unavailable

24

HOSE 6

4BH-12589-00-00

Unavailable

25

HOSE 3

4BH-12578-00-00

Unavailable

26

HOSE 4

4BH-12579-00-00

Unavailable

27

CLIP

90467-11139-00

Unavailable

28

CLAMP

90464-25267-00

Unavailable

29

CLAMP(4FM)

90464-15195-00

Unavailable

30

TANK, RECOVERY

4BH-21871-00-00

Unavailable

31

CAP

1AA-21815-00-00

Unavailable

32

GASKET

1AA-21874-00-00

Unavailable

33

PIPE, OVERFLOW (L1400)

4BH-21877-00-00

Unavailable

34

CLAMP(J38)

90464-26114-00

Unavailable

35

BOLT, WITH WASHER(3RB)

90119-06192-00

Unavailable
