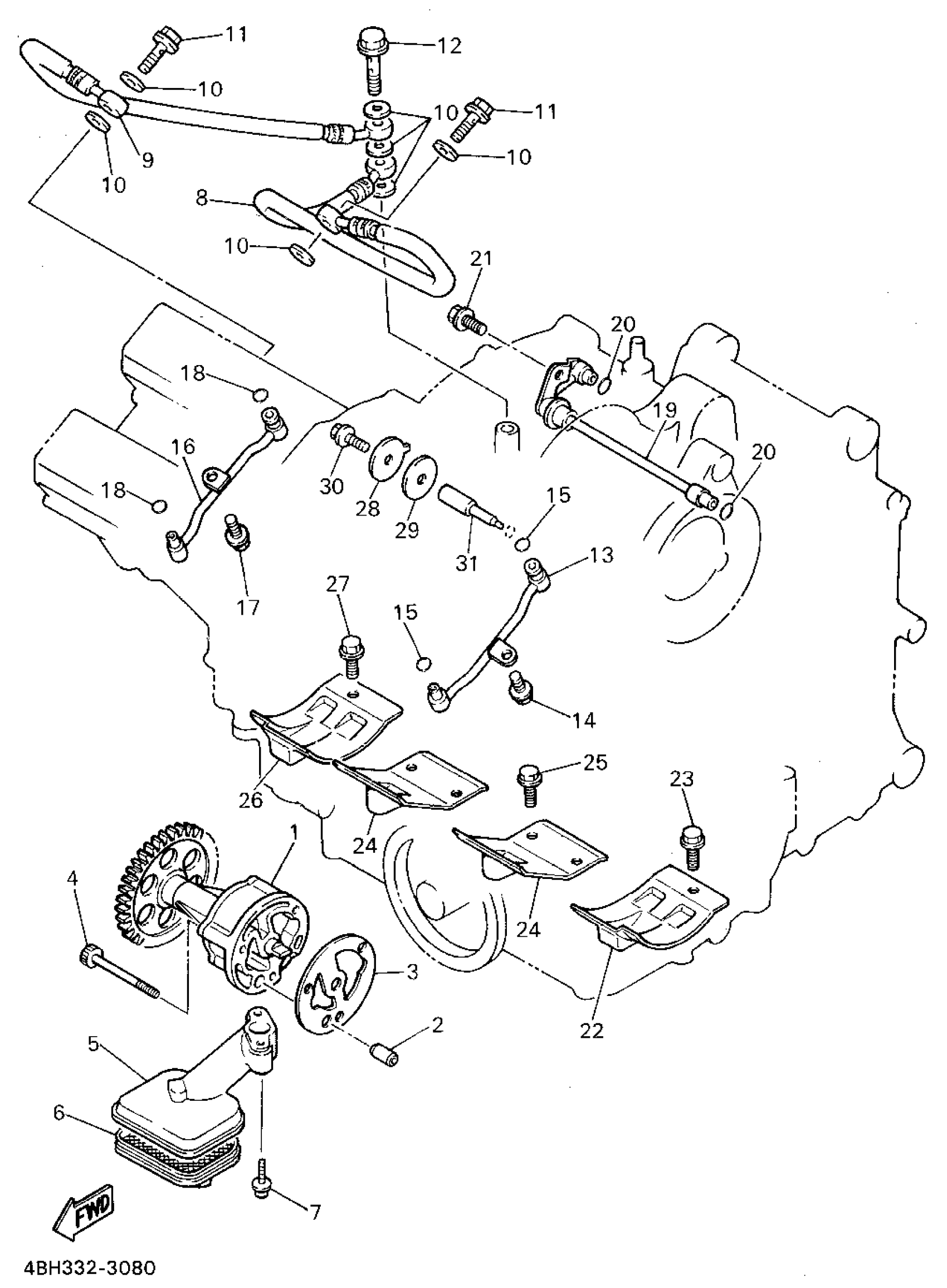

Yamaha GTS1000AFC (GTS1000A CA) 1994 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

1AE-13300-00-00

Unavailable

2

PIN, DOWEL(N04)

91808-12024-00

$4.24

3

GASKET, PUMP COVER

2GH-13329-00-00

Unavailable

4

BOLT,SOCKET

91317-06050-00

$3.88

5

HOUSING, STRAINER

4BH-13412-00-00

Unavailable

6

STRAINER, OIL

4BH-13411-00-00

Unavailable

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

HOSE, OIL 1

4BH-1316F-01-00

Unavailable

9

HOSE, OIL 2

4BH-1316G-01-00

Unavailable

10

GASKET (5R6)

90430-10171-00

$3.18

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

BOLT, UNION

90401-10038-00

$12.49

13

PIPE, DELIVERY 3

3GM-13181-00-00

Unavailable

14

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

15

O-RING (26H)

93210-06632-00

$8.49

16

PIPE, DELIVERY 4

3GM-13191-00-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

18

O-RING (26H)

93210-06632-00

$8.49

19

PIPE, DELEVERY 5

2GH-1316E-01-00

Unavailable

20

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

21

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

22

PLATE, BUFFLE 1

2GH-15123-00-00

Unavailable

23

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

24

PLATE, BUFFLE 2

1AE-15124-00-00

Unavailable

25

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

26

PLATE, BUFFLE 3

2GH-15133-00-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

28

WASHER, PLATE

90201-061M7-00

Unavailable

29

GASKET

4FM-13475-00-00

Unavailable

30

BOLT, FLANGE

95817-06016-00

Unavailable

31

NOZZLE

3GM-13454-00-00

Unavailable
