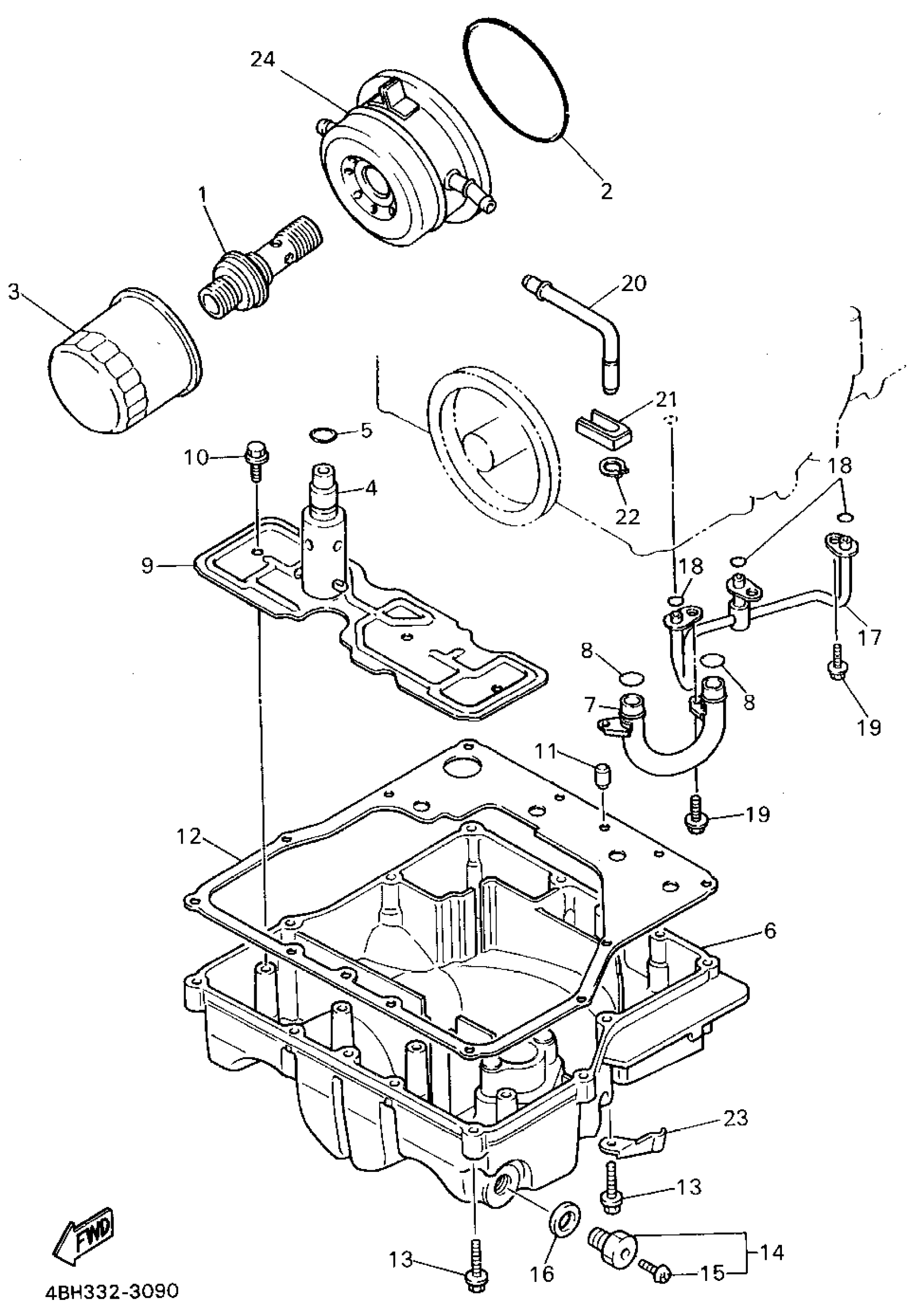

Yamaha GTS1000AFC (GTS1000A CA) 1994 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20158-00

Unavailable

2

O-RING(1KF)

93210-87723-00

Unavailable

3

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

$18.99

4

RELIEF VALVE ASSY

3KS-13490-00-00

Unavailable

5

O-RING (22U)

93210-15566-00

$7.49

6

COVER, STRAINER

4BH-13417-00-00

Unavailable

7

PIPE,OIL 1

3FV-13416-01-00

Unavailable

8

O-RING (26H)

93210-14579-00

$7.49

9

PLATE,BAFFLE LOWER

3FV-13337-00-00

Unavailable

10

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

GASKET, STRAINER COVER

4FM-13414-00-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

SCREW, BIND(2TV)

98980-06008-00

$3.19

16

GASKET

214-11198-01-00

Unavailable

17

PIPE, DELIVERY 1

3GM-13161-01-00

Unavailable

18

O-RING(1AE)

93210-06714-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

20

PIPE, BREATHER

3GM-15373-00-00

Unavailable

21

HOLDER, OIL PIPE

3GM-13174-00-00

Unavailable

22

CIRCLIP(10W)

99009-10400-00

Unavailable

23

CLAMP

90465-08076-00

Unavailable

24

OIL COOLER ASSY

4BH-13470-00-00

Unavailable
