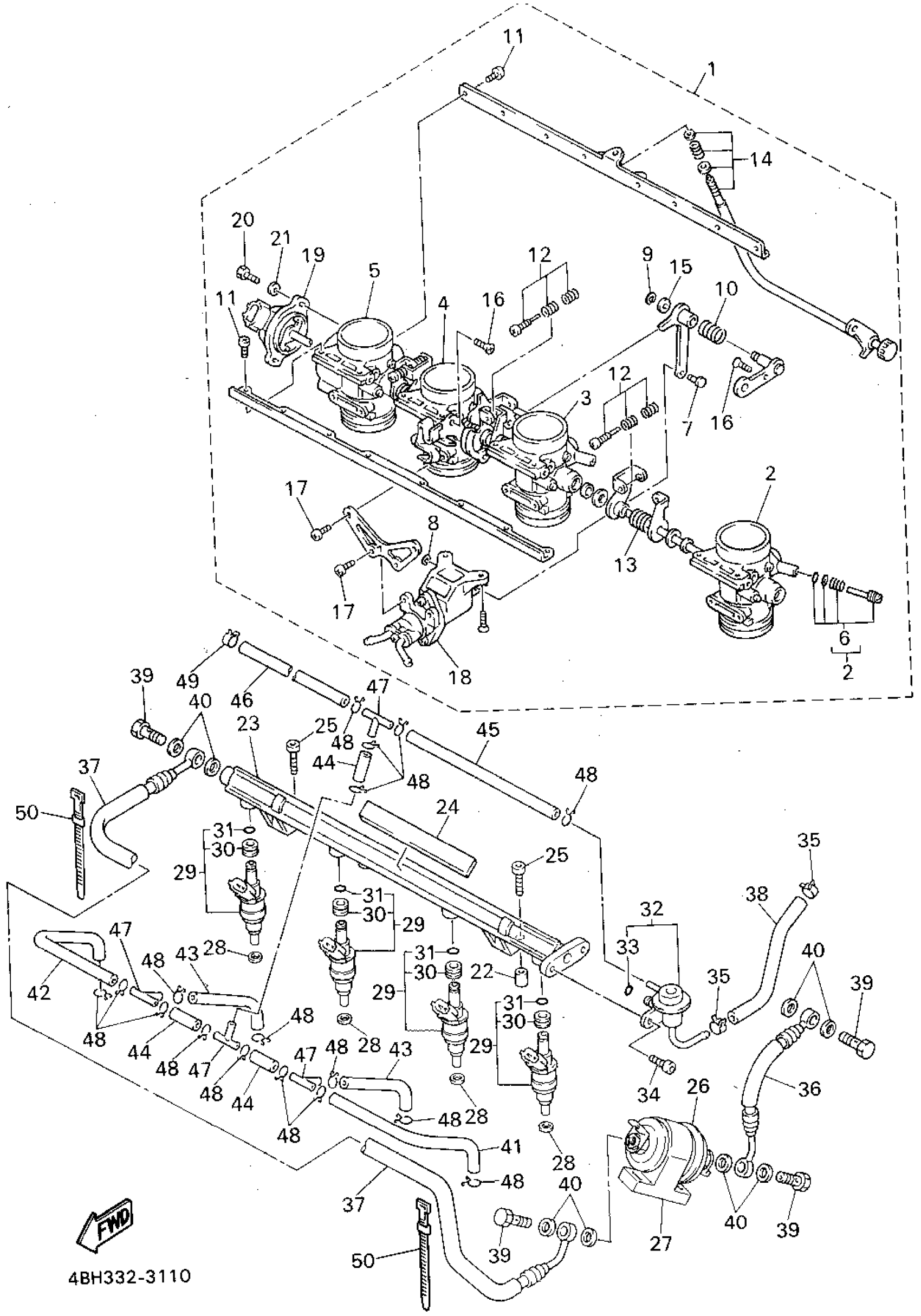

Yamaha GTS1000AFC (GTS1000A CA) 1994 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSEMBLY
4BH-13750-00-00
Unavailable
1
THROTTLE BODY ASSEMBLY
4HH-13750-00-00
Unavailable
2
. BODY, THROTTLE 1
4BH-13751-00-00
Unavailable
2
. BODY, THROTTLE 1
4HH-13751-00-00
Unavailable
3
. BODY, THROTTLE 2
4BH-13752-00-00
Unavailable
3
. BODY, THROTTLE 2
4HH-13752-00-00
Unavailable
4
. BODY, THROTTLE 3
4BH-13753-00-00
Unavailable
4
. BODY, THROTTLE 3
4HH-13753-00-00
Unavailable
5
. BODY, THROTTLE 4
4BH-13754-00-00
Unavailable
5
. BODY, THROTTLE 4
4HH-13754-00-00
Unavailable
6
.. PILOT SCREW SET
4BH-14105-00-00
Unavailable
7
. PIN, FLOAT
4BH-14386-00-00
Unavailable
9
. CLIP
820-14137-00-00
Unavailable
10
. SPRING
4BH-14938-00-00
Unavailable
11
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
12
. THROTTLE SCREW SET
4BH-14103-00-00
Unavailable
13
. SPRING, THROTTLE VALVE
1HX-14131-00-00
Unavailable
14
. STOP SCREW SET
4BH-1490K-00-00
Unavailable
15
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
16
. SCREW, FLAT HEAD
98702-05010-00
Unavailable
17
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
18
. CASE, STARTER
4BH-14204-00-00
Unavailable
19
. THROTTLE SENSOR ASSEMBLY
4BH-85885-00-00
Unavailable
20
. SCREW
4BH-14592-00-00
Unavailable
21
WASHER, PLAIN (646)
92990-04600-00
Unavailable
22
PIN, DOWEL(N04)
91808-12024-00
Unavailable
23
PIPE
4BH-13938-00-00
Unavailable
24
DAMPER 2
34M-21639-00-00
Unavailable
25
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
26
FILTER
4BH-13915-00-00
Unavailable
27
DAMPER 1
4BH-14425-00-00
Unavailable
28
GASKET
4BH-13764-00-00
Unavailable
29
INJECTOR ASSEMBLY
4BH-13761-00-00
Unavailable
30
. RUBBER, INJECTOR
4BH-13766-00-00
Unavailable
31
. O-RING
4BH-13769-00-00
Unavailable
32
REGULATOR, PRESSURE
4BH-13906-00-00
Unavailable
33
. O-RING
4BH-13769-00-00
Unavailable
34
BOLT,SOCKET HEAD
91314-06012-00
Unavailable
35
CLIP
90467-13114-00
Unavailable
36
PIPE, FUEL 1
4BH-13971-00-00
Unavailable
37
PIPE, FUEL 2
4BH-13972-00-00
Unavailable
38
PIPE, FUEL 3
4BH-13973-00-00
Unavailable
39
BOLT 1
4BH-13573-00-00
Unavailable
40
GASKET(4BH)
90430-12219-00
Unavailable
41
HOSE, VACUUM SENSING 1
4BH-13542-00-00
Unavailable
42
HOSE, VACUUM SENSING 2
4BH-13544-00-00
Unavailable
43
HOSE, VACUUM SENSING 3
4BH-13532-00-00
Unavailable
44
HOSE,VAC.SENSING 5
4BH-13534-00-00
Unavailable
45
HOSE,VAC.SENSING 5
4BH-13534-00-00
Unavailable
46
HOSE (L770)
90445-090G9-00
Unavailable
47
WAY 3(33M)
90413-05014-00
Unavailable
48
CLIP (16G)
90467-08021-00
Unavailable
49
CLIP
90467-07138-00
Unavailable
50
BAND, SWITCH CORD
437-83936-11-00
Unavailable
