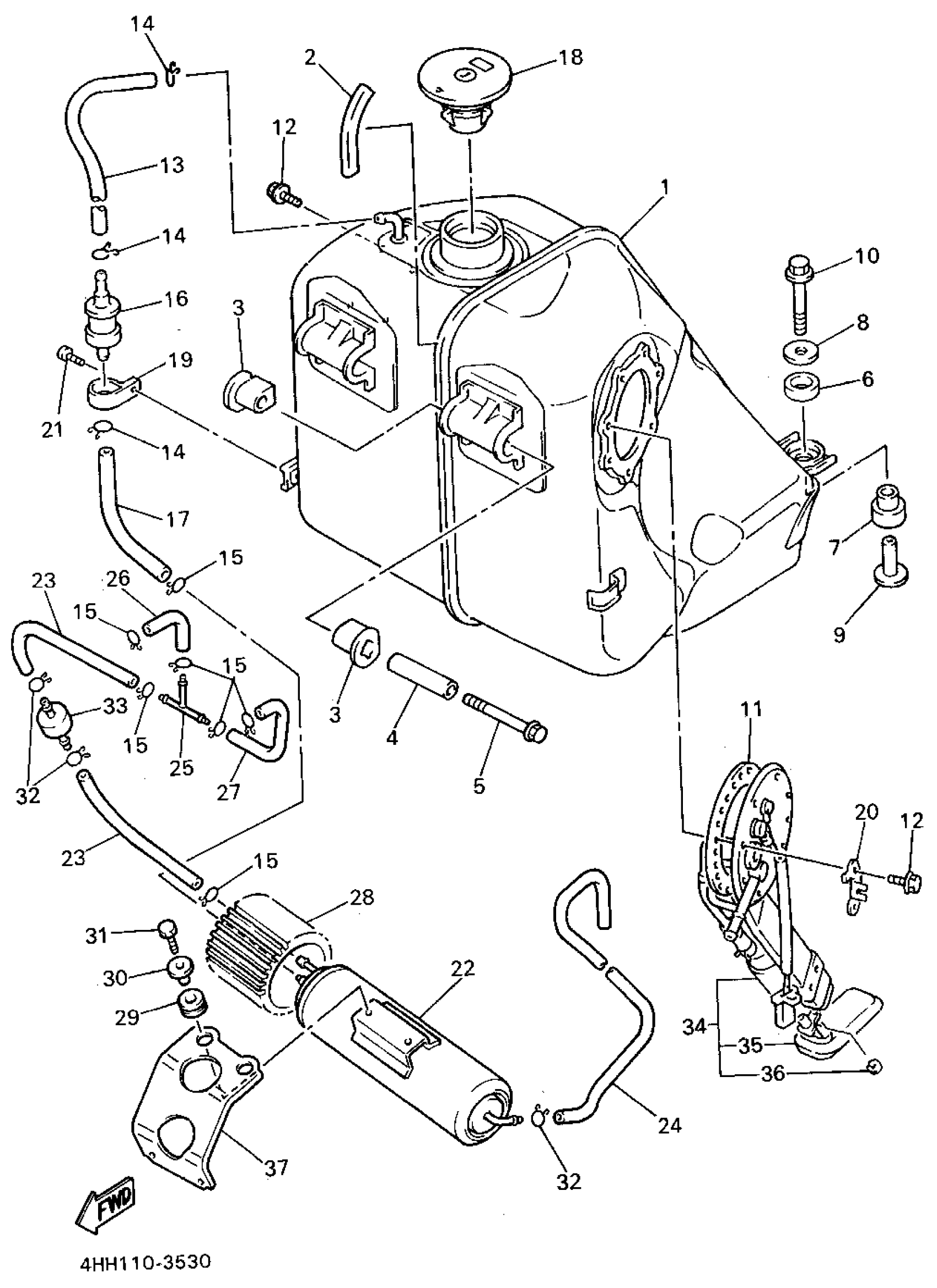

Yamaha GTS1000AFC (GTS1000A CA) 1994 FUEL TANK CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

FUEL TANK COMP.

4BH-24110-00-00

Unavailable

2

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

3

DAMPER, LOCATING 1

4BH-24181-00-00

Unavailable

4

COLLAR

90387-06380-00

Unavailable

5

BOLT, FLANGE

95817-06080-00

$4.72

6

DAMPER, LOCATING 3

4BH-24183-00-00

Unavailable

7

GROMMET

90480-10570-00

Unavailable

8

WASHER, PLATE (1A0)

90201-08612-00

$8.49

9

COLLAR

90387-0801N-00

Unavailable

10

BOLT, FLANGE

95814-08045-00

$4.29

11

SEAL

4BH-2414G-00-00

Unavailable

12

BOLT, WITH WASHER

90119-05071-00

$8.49

13

HOSE (L400)

90445-116K9-00

$24.99

14

CLIP

90467-090A2-00

$4.41

15

CLIP

90467-100A1-00

$7.49

16

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

17

HOSE (L400)

90445-116K9-00

$24.99

18

CAP ASSEMBLY

3HE-24602-00-00

Unavailable

19

CLAMP

90464-15014-00

Unavailable

20

CLAMP, FUEL PIPE 1

4BH-24366-00-00

Unavailable

21

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

22

CANISTER ASSEMBLY

4HH-24170-00-00

Unavailable

23

PIPE 3

4HH-24313-01-00

Unavailable

24

HOSE (L730)

90445-105K7-00

Unavailable

25

PIPE, JOINT

3H3-24376-00-00

Unavailable

26

HOSE (L400)

90445-116K9-00

$24.99

27

PIPE, FUEL 1

3AA-24311-00-00

Unavailable

28

BAND 1

4HH-24398-00-00

Unavailable

29

GROMMET (1E5)

90480-13163-00

Unavailable

30

COLLAR(42G)

90387-062L2-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

CLIP(1JH)

90467-11106-00

Unavailable

33

VALVE, OUTER VENT CONTROL

1WJ-14895-00-00

Unavailable

34

FUEL PUMP COMP.

4BH-13907-00-00

Unavailable

35

. FILTER

4BH-13939-00-00

Unavailable

36

. WASHER

4BH-13995-00-00

Unavailable

37

STAY

4HH-14413-00-00

Unavailable
