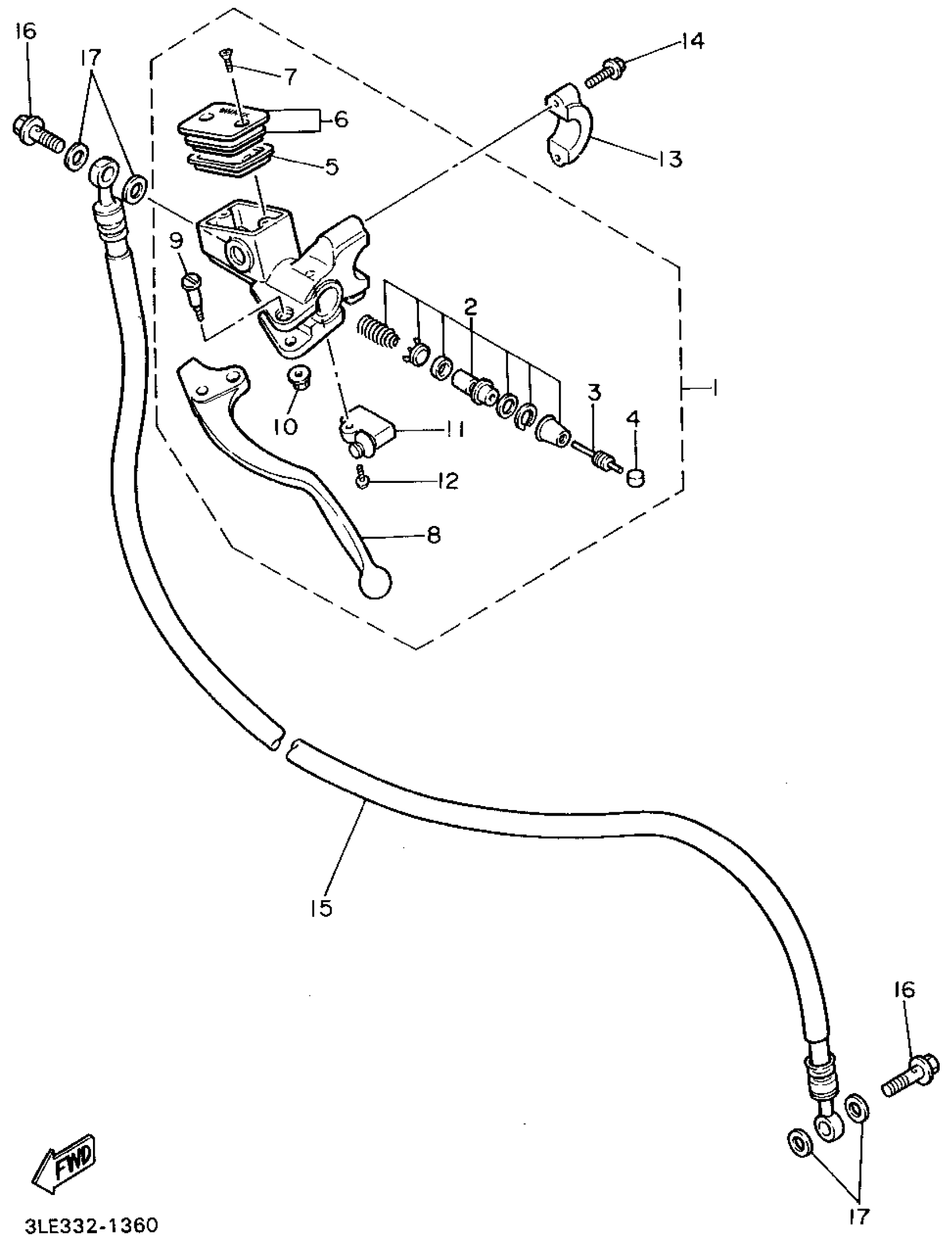

Yamaha GTS1000AFC (GTS1000A CA) 1994 FRONT MASTER CYLINDER 2 Diagram

MASTER CYLINDER SUB ASSEMBLY

3SD-25870-11-00

Unavailable

CYLINDER KIT, MASTER (CLUTCH)

3GM-W0099-00-00

Unavailable

ROD, PUSH

3GM-26464-00-00

$18.49

BUSH

3GM-26455-00-00

$24.99

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$27.99

RESERVOIR CAP SET

3GM-W2585-21-00

Unavailable

SCREW, FLAT

98707-04012-00

$2.18

LEVER 1

3GM-83912-00-00

Unavailable

BOLT, LEVER

3FV-2589F-00-00

$16.49

NUT, FLANGE(4MV)

95707-06500-00

$1.23

SWITCH

3GM-83980-00-00

$49.99

SCREW, FLAT

98707-04016-00

$8.49

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

BOLT, SMALL FLANGE

95027-06025-00

$4.16

HOSE, CLUTCH

4BH-26470-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
