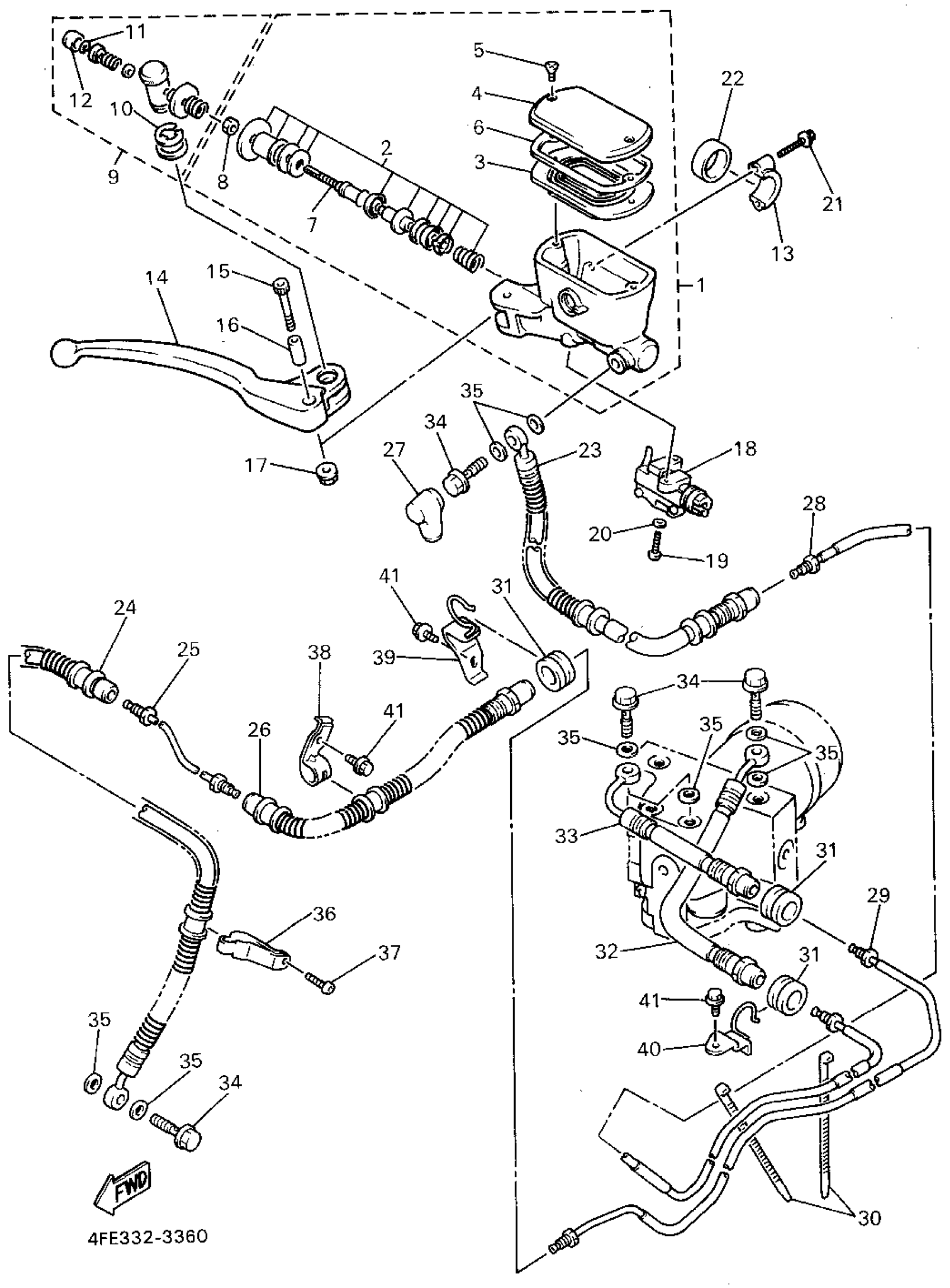

Yamaha GTS1000AFC (GTS1000A CA) 1994 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYL.SUB.ASY

4BH-W2587-01-00

Unavailable

2

CYLINDER KIT, MASTER

4TX-25807-04-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4BH-25854-02-00

Unavailable

4

. CAP, RESERVOIR

4BH-25852-00-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$2.18

6

SEAL, PISTON

4BH-25815-00-00

Unavailable

7

ROD, PUSH

3YX-25880-00-00

Unavailable

8

NUT, U FLANGE

95604-06200-00

$8.49

9

SCREW KIT, MASTER CYLINDER

3YX-W0091-02-00

Unavailable

10

CIRCLIP(2R6)

99001-08600-00

$8.49

11

CIRCLIP(6L5)

99080-03600-00

Unavailable

12

BOOT

3YX-2583H-00-00

Unavailable

13

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

14

LEVER

3YX-83922-09-00

Unavailable

15

BOLT, LEVER

3YX-2589F-00-00

$4.94

16

SLEEVE, CALIPER

3YX-25838-00-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

FRONT STOP SWITCH ASSEMBLY

4FE-83980-00-00

Unavailable

19

SCREW, PAN HEAD

98517-04012-00

Unavailable

20

WASHER(JF2)

92907-04600-00

Unavailable

21

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

22

COLLAR (2H7)

90387-22660-00

Unavailable

23

HOSE, BRAKE 1

4FE-25872-01-00

Unavailable

24

HOSE, BRAKE 2

4FE-25873-01-00

Unavailable

25

PIPE, BRAKE

4FE-25871-00-00

Unavailable

26

HOSE, BRAKE 5

4FE-2581K-01-00

Unavailable

27

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

28

PIPE, BRAKE 2

4FE-25882-00-00

Unavailable

29

PIPE, BRAKE 3

4FE-25883-00-00

Unavailable

30

BAND

1UA-82591-00-00

Unavailable

31

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

32

HOSE, BRAKE

4FE-25874-01-00

Unavailable

33

HOSE, BRAKE 4

4FE-2581J-01-00

Unavailable

34

BOLT, UNION(3GM)

90401-10159-00

Unavailable

35

WASHER, PLATE(481)

90201-10118-00

Unavailable

36

HOLDER, BRAKE HOSE 1

4BH-25875-00-00

Unavailable

37

BOLT, BUTTON

92014-06016-00

Unavailable

38

HOLDER, BRAKE HOSE

4BH-25887-00-00

Unavailable

39

HOLDER, BREAK HOSE

4BH-2587A-00-00

Unavailable

40

HOLDER, BREAK HOSE

4FE-2587A-00-00

Unavailable

41

BOLT, FLANGE

95817-06012-00

Unavailable
