Description

Price

1

FENDER, FRONT

4FV-21511-00-P2

Unavailable

2

FENDER, FRONT 2

4BH-21556-00-00

Unavailable

3

HOLDER

4BH-21596-00-00

Unavailable

4

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

5

COLLAR

90387-0702H-00

Unavailable

6

SEAL

46X-21269-00-00

Unavailable

7

STAY, FENDER 1

4BH-21513-00-00

Unavailable

8

BOLT, FLANGE

95817-06012-00

$1.43

9

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

10

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

11

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

12

COLLAR

90387-065T2-00

$8.49

13

BOLT, BUTTON

92014-06016-00

$8.49

14

FRONT REFLECTOR ASSY

23V-85110-00-00

$27.99

15

NUT, FLANGE(3GM)

95707-05500-00

$8.49

16

STAY 1

4FV-21587-00-00

Unavailable

17

STAY 2

4FV-21588-00-00

Unavailable

18

RIVET, BLIND

90267-40029-00

Unavailable

19

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

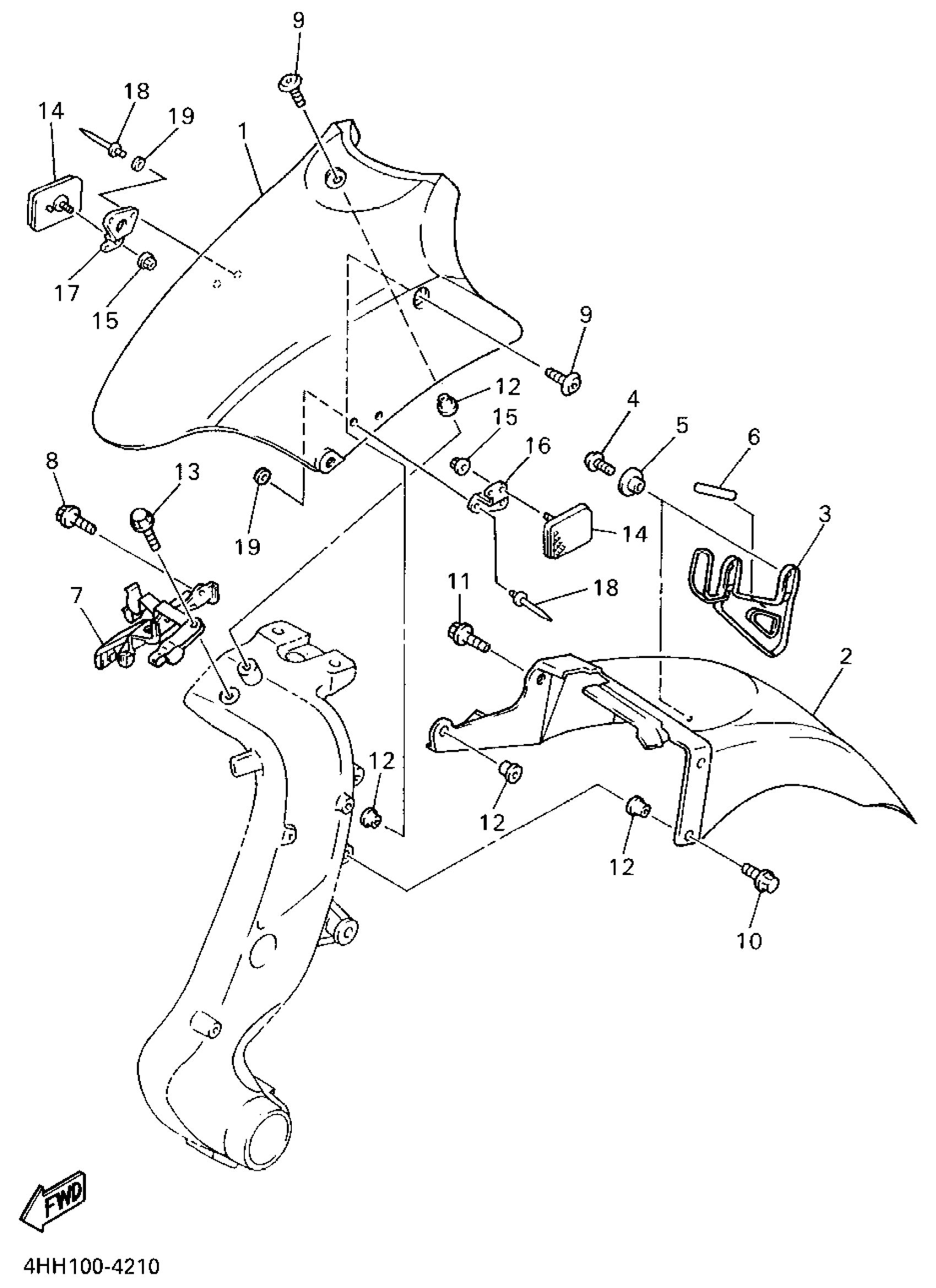

Yamaha GTS1000AFC (GTS1000A CA) 1994 FRONT FENDER Diagram

FENDER, FRONT

FENDER, FRONT 2

HOLDER

BOLT, BUTTON HEAD(3JP)

COLLAR

SEAL

STAY, FENDER 1

BOLT, FLANGE

BOLT, HEXAGON SOCKET HEAD(3HE)

BOLT, WITH WASHER (10V)

BOLT, WITH WASHER(8V7)

COLLAR

BOLT, BUTTON

FRONT REFLECTOR ASSY

NUT, FLANGE(3GM)

STAY 1

STAY 2

RIVET, BLIND

WASHER, PLATE(26H)
