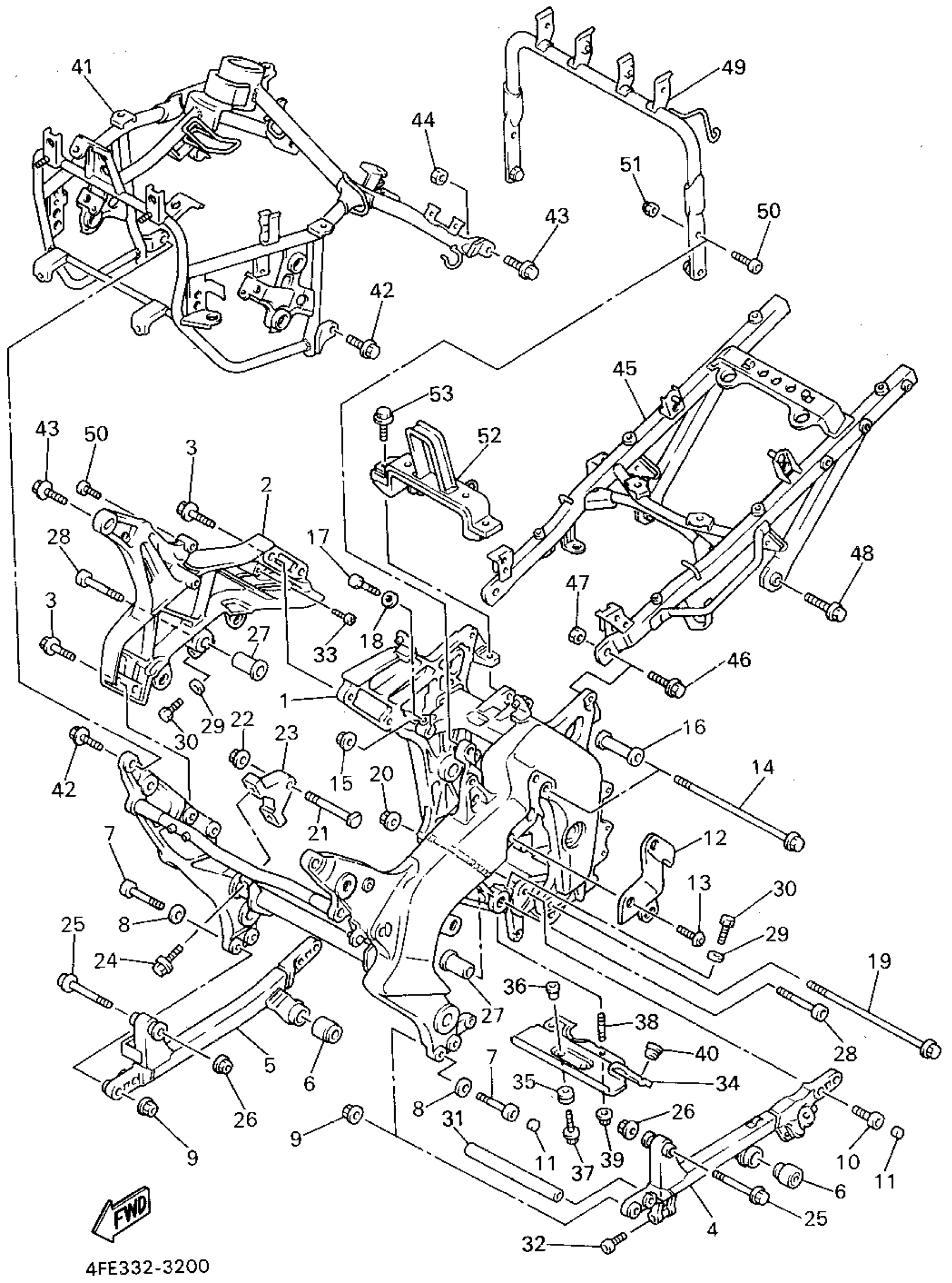

Yamaha GTS1000AFC (GTS1000A CA) 1994 FRAME Diagram
#
1
FRAME
4BH-21110-01-P1
Unavailable
2
SIDE MEMBER SUB-ASSEMBLY
4BH-21102-00-P1
Unavailable
3
BOLT, WASHER BASED
90105-10678-00
Unavailable
4
DOWN TUBE COMP.
4BH-21140-00-35
Unavailable
5
DOWN TUBE COMP.2
4BH-21150-00-35
Unavailable
6
DAMPER, FOOTREST 2
4FU-27424-00-00
Unavailable
7
BOLT, HEXAGON SOCKET HEAD
90110-10218-00
Unavailable
8
WASHER, PLATE
90201-112R5-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
90110-10219-00
Unavailable
11
PLUG, STRAIGHT
90334-08234-00
Unavailable
12
COVER
4BH-2117F-00-P1
Unavailable
13
SCREW(4DN)
90149-06302-00
Unavailable
14
BOLT, WASHER BASED(1AE)
90105-10401-00
Unavailable
15
NUT
90179-10682-00
Unavailable
16
SPACER
3TJ-21459-00-00
Unavailable
17
BOLT
97017-08035-00
Unavailable
18
WASHER, PLAIN
92990-08200-00
Unavailable
19
BOLT, FLANGE
90105-10N53-00
Unavailable
20
NUT(4KG)
90179-10658-00
Unavailable
21
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
22
NUT(4KG)
90179-10658-00
Unavailable
23
STAY, ENGINE 2
4BH-21315-00-00
Unavailable
24
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
25
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
26
NUT(4KG)
90179-10658-00
Unavailable
27
COLLAR
90387-115V8-00
Unavailable
28
BOLT, SOCKET
91317-10045-00
Unavailable
29
WASHER, PLAIN
92990-08200-00
Unavailable
30
BOLT
97017-08035-00
Unavailable
31
TUBE, CROSS
4BH-21423-00-00
Unavailable
32
BOLT,SOCKET
91314-08025-00
Unavailable
33
SCREW, PAN
98517-06012-00
Unavailable
34
PLATE
4BH-21183-00-00
Unavailable
35
GROMMET
90480-20571-00
Unavailable
36
COLLAR
90387-083R4-00
Unavailable
37
BOLT, WITH WASHER
90119-08113-00
Unavailable
38
BOLT, STUD(4BH)
95622-06312-00
Unavailable
39
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
40
GROMMET (420)
90480-14153-00
Unavailable
41
FRONT FRAME COMP.
4BH-21101-01-00
Unavailable
42
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
43
BOLT, FLANGE
95817-10035-00
Unavailable
45
REAR FRAME COMP.
4FE-21190-00-00
Unavailable
46
BOLT, FLANGE
95817-10035-00
Unavailable
48
BOLT, FLANGE
95817-10030-00
Unavailable
49
BRACKET, TANK FITTING
4BH-21348-00-00
Unavailable
50
BOLT, SOCKET
91317-08025-00
Unavailable
51
NUT, CROWN
95303-08800-00
Unavailable
52
BRACKET, TANK FITTING
4FE-21345-00-00
Unavailable
53
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
