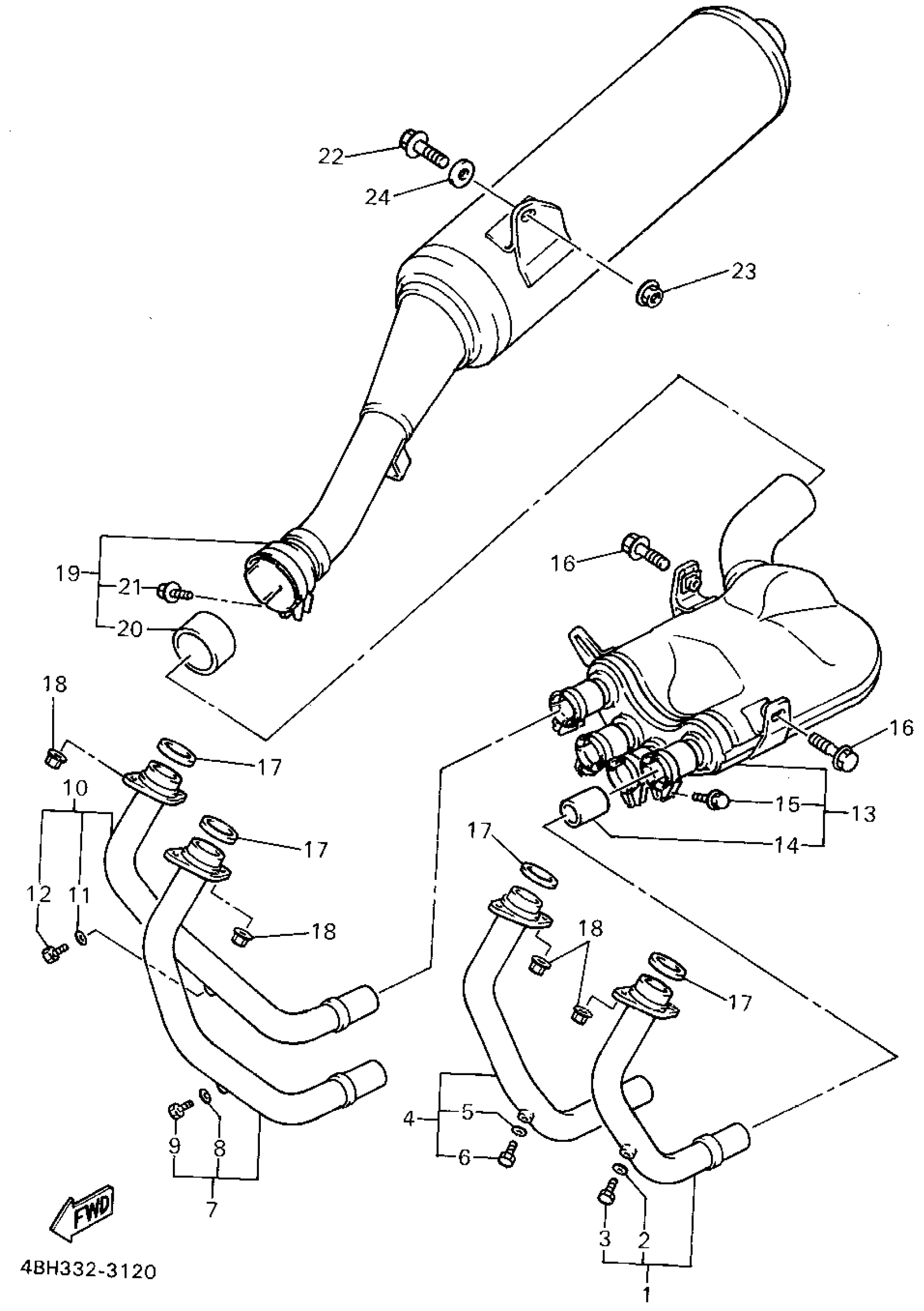

Yamaha GTS1000AFC (GTS1000A CA) 1994 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

4BH-14610-00-00

Unavailable

2

WASHER(6TA)

92907-06600-00

$2.72

3

BOLT (11T)

90101-06576-00

$8.49

4

EXHAUST PIPE ASSEMBLY 2

4BH-14620-00-00

Unavailable

5

WASHER(6TA)

92907-06600-00

$2.72

6

BOLT (11T)

90101-06576-00

$8.49

7

EXHAUST PIPE ASSEMBLY 3

4BH-14630-00-00

Unavailable

8

WASHER(6TA)

92907-06600-00

$2.72

9

BOLT (11T)

90101-06576-00

$8.49

10

EXHAUST PIPE ASSEMBLY 4

4BH-14650-00-00

Unavailable

11

WASHER(6TA)

92907-06600-00

$2.72

12

BOLT (11T)

90101-06576-00

$8.49

13

CHAMBER ASSY

4BH-14730-01-00

Unavailable

14

GASKET, MUFFLER

4BH-14714-00-00

$45.99

15

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable

18

NUT (22U)

90179-08410-00

Unavailable

19

MUFFLER ASSEMBLY 1

4BH-14710-00-00

Unavailable

20

. GASKET, SILENCER

3HE-14755-00-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

23

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

24

WASHER, PLATE (2H7)

90201-10669-00

Unavailable
