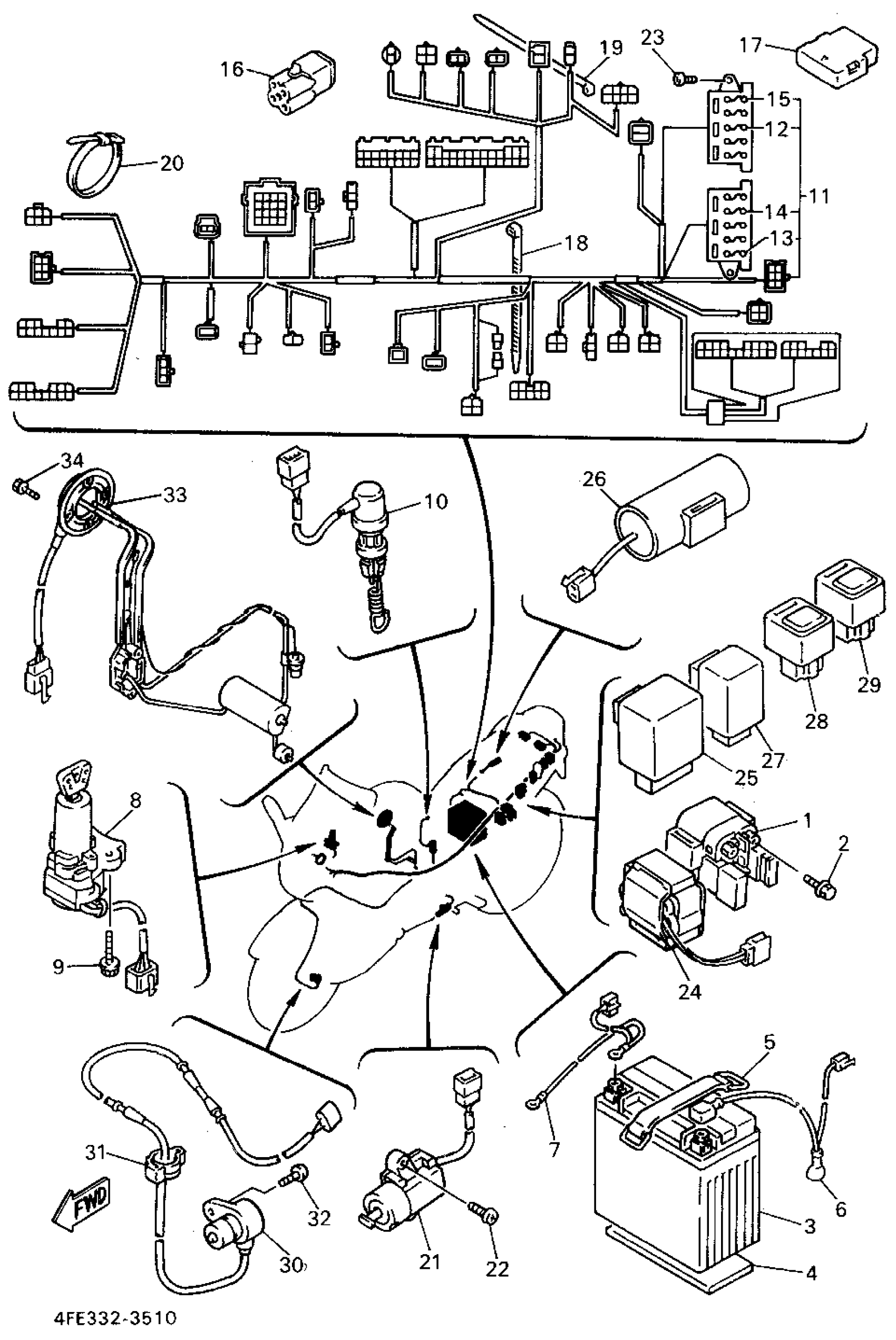

Yamaha GTS1000AFC (GTS1000A CA) 1994 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

$113.99

2

BOLT, FLANGE(3BM)

95024-06008-00

$9.49

3

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

Unavailable

4

SEAT, BATTERY

5Y1-82122-00-00

$7.99

5

BAND, BATTERY

2T4-82131-00-00

$8.99

6

WIRE,PLUS LEAD

4BH-82115-00-00

Unavailable

7

WIRE, MINUS LEAD

4BH-82116-00-00

Unavailable

8

MAIN SWCH STRG LCK

4BH-82501-02-00

Unavailable

9

BOLT

90109-06282-00

$4.29

10

STOP SWITCH ASSEMBLY

4FE-82530-00-00

Unavailable

11

WIRE HARNESS ASSEMBLY

4FE-82590-00-00

Unavailable

12

FUSE (12V 30A)

1AE-82151-00-00

$7.99

13

FUSE (20A)

2GV-82151-00-00

$5.49

14

FUSE (10A)

42X-82151-00-00

$4.32

15

FUSE

1NL-82151-00-00

$6.99

16

CONNECTOR

3YA-82378-00-00

Unavailable

17

CAP

4BH-87272-00-00

Unavailable

18

CLAMP(MF1)

90464-15152-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

CLAMP

5Y9-12491-00-00

Unavailable

21

SWITCH, SIDE STAND

3LD-82566-41-00

Unavailable

22

SCREW, PAN HEAD

98507-05014-00

Unavailable

23

BOLT(1KT)

90109-060E9-00

Unavailable

24

EMERGENCY STOP SWITCH ASSY

4BH-82576-01-00

Unavailable

25

RELAY ASSY

2UJ-81950-02-00

Unavailable

26

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

27

RELAY ASSEMBLY

4BH-8195A-00-00

Unavailable

28

RELAY ASSY

25G-81950-02-00

Unavailable

29

RELAY ASSY

4U8-81950-03-00

Unavailable

30

WHEEL SENSOR ASSEMBLY, FRONT

4BH-85970-01-00

Unavailable

31

CLAMP(1NL)

90465-14310-00

Unavailable

32

BOLT, BUTTON

92014-08016-00

Unavailable

33

SENDER UNIT ASSEMBLY, FUEL METER

4BH-85752-00-00

Unavailable

34

BOLT, WITH WASHER

90119-05071-00

Unavailable
