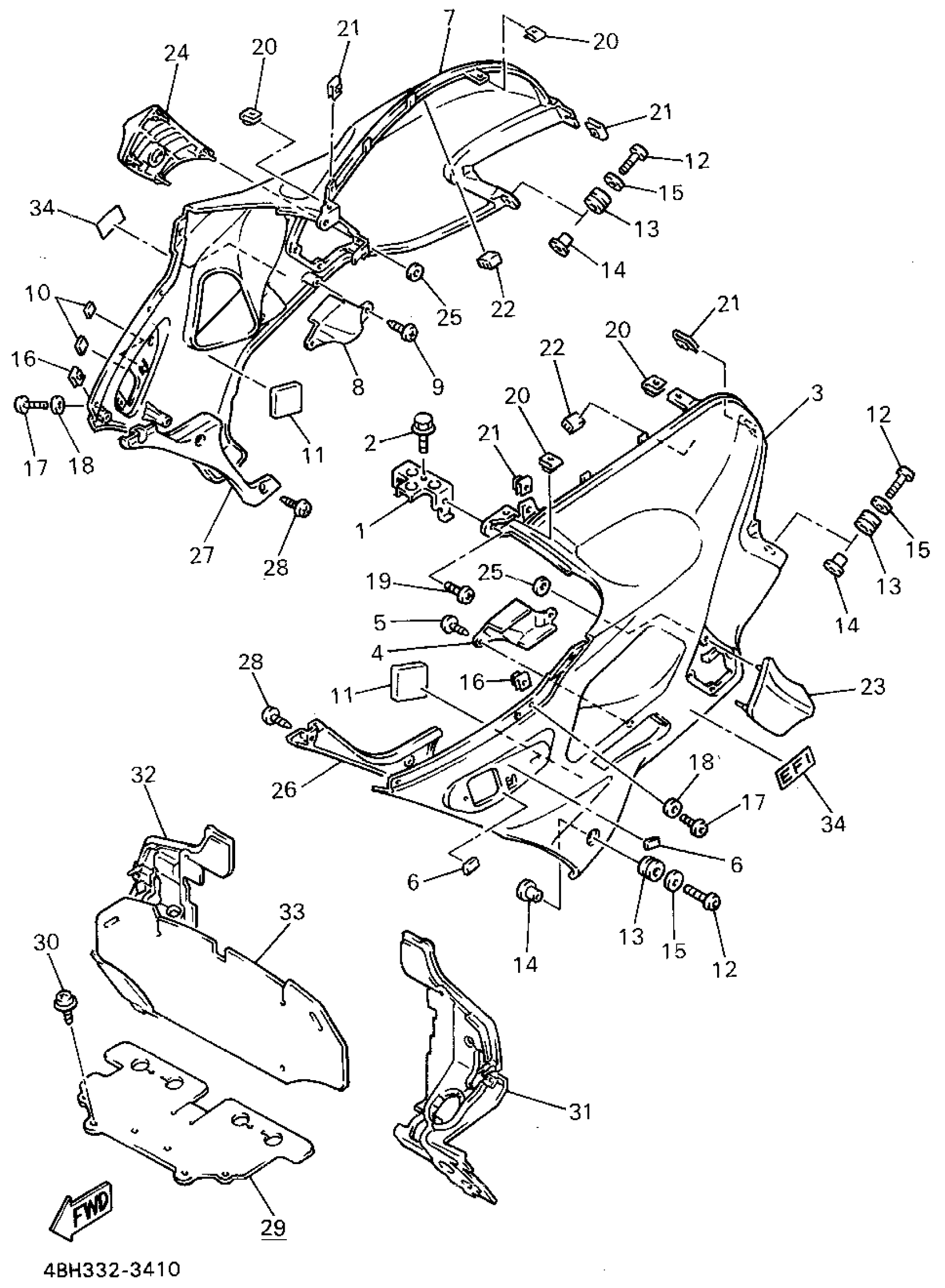

Yamaha GTS1000AFC (GTS1000A CA) 1994 COWLING 2 Diagram

#

Description
Price

1

STAY 1

4BH-28321-00-00

Unavailable

2

BOLT, FLANGE

95817-06010-00

$4.73

3

BODY, FRONT LOWER 1

4BH-2835J-00-P3

Unavailable

4

DUCT 1

4BH-2838N-00-00

Unavailable

5

SCREW, TRUSS TAP.

97707-50012-00

$4.63

6

LABEL

3TU-2178A-00-00

Unavailable

7

BODY, FRONT LOWER 2

4BH-2835K-00-P3

Unavailable

8

DUCT 2

4BH-2838R-00-00

Unavailable

9

SCREW, TRUSS TAP.

97707-50012-00

$4.63

10

LABEL

3TU-2178A-00-00

Unavailable

11

PAD, BATTERY

5G7-82121-00-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

13

GROMMET (4N0)

90480-10289-00

$8.49

14

COLLAR(4BH)

90387-066Y6-00

$9.49

15

WASHER, PLATE (J10)

90201-06697-00

$8.49

16

NUT, SPRING

90183-051A0-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

18

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

19

SCREW, BINDING (10V)

90154-05013-00

Unavailable

20

NUT, SPRING(3GM)

90183-05061-00

Unavailable

21

NUT, SPRING

90183-051A0-00

Unavailable

22

DAMPER, LOCATING 1

4BH-2836T-00-00

Unavailable

23

PROTECTOR 1

4BH-2832M-00-00

Unavailable

24

PROTECTOR 2

4BH-2832N-00-00

Unavailable

25

NUT, SPRING

90183-06071-00

Unavailable

26

PANEL 1

4BH-2835U-00-00

Unavailable

27

PANEL 2

4BH-2835V-00-00

Unavailable

28

SCREW, TRUSS TAP.

97707-50012-00

$4.63

29

PLATE, ENGINE GUARD

4BH-28341-00-00

Unavailable

30

SCREW, WITH WASHER(35R)

90159-06093-00

Unavailable

31

PLATE 1

4BH-28396-00-00

Unavailable

32

PLATE 2

4BH-28397-00-00

Unavailable

33

SEAT 1

4BH-2838G-00-00

Unavailable

34

EMBLEM

4BH-28338-20-00

Unavailable
