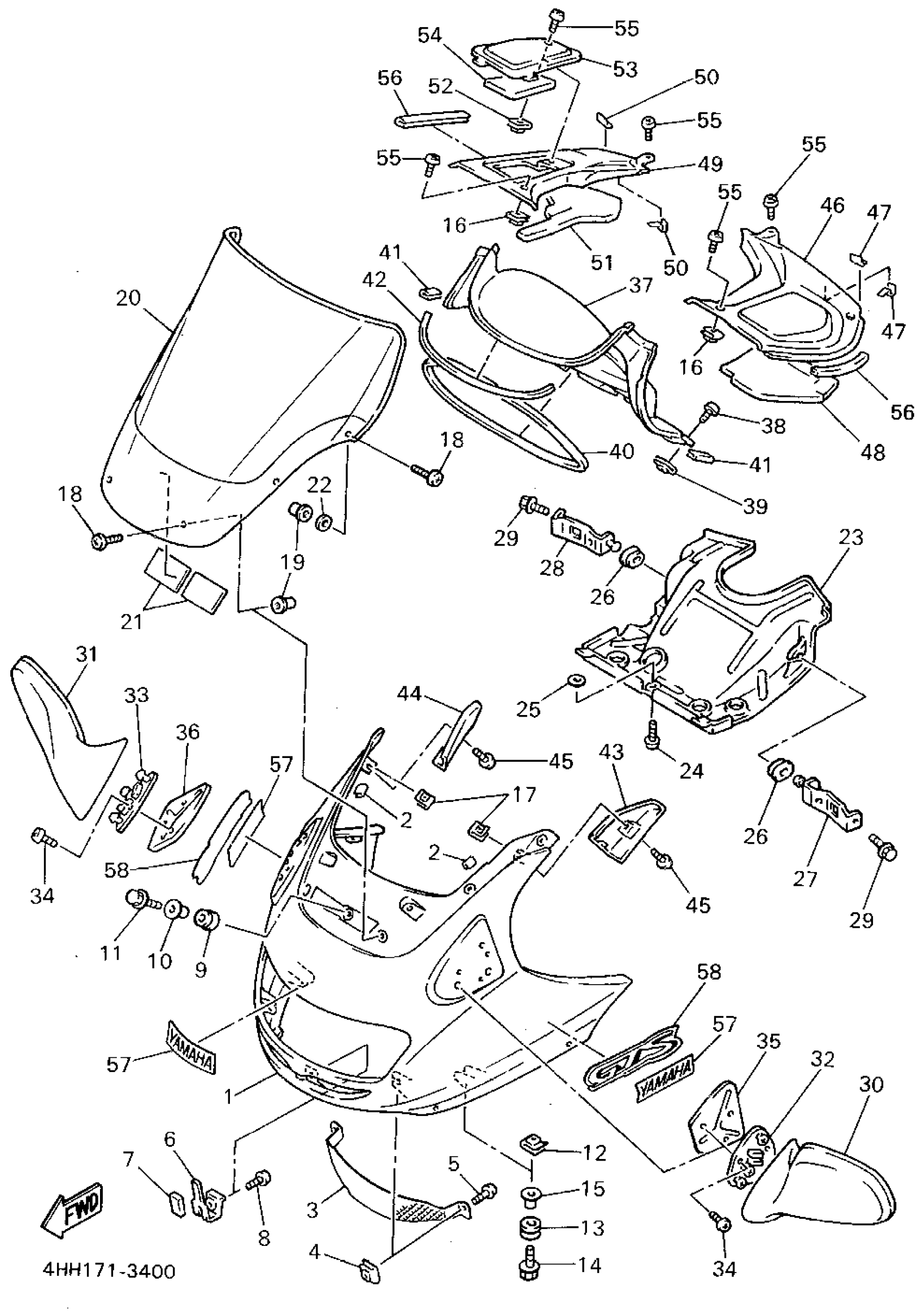

Yamaha GTS1000AFC (GTS1000A CA) 1994 COWLING 1 Diagram

#

Description
Price

1

COWLING ASSEMBLY

4BH-28350-00-P3

Unavailable

2

PROTECTOR

3MA-27491-00-00

$8.99

3

PLATE

4BH-28336-00-00

Unavailable

4

NUT, SPRING(3GM)

90183-05061-00

$5.60

5

SCREW, BINDING (10V)

90154-05013-00

$5.60

6

STAY 3

4BH-28358-00-00

Unavailable

7

DAMPER

34M-2139X-00-00

$3.74

8

SCREW, BINDING (10V)

90154-05013-00

$5.60

9

GROMMET

90480-13014-00

$8.49

10

COLLAR(51L)

90387-067K6-00

$10.49

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

NUT, SPRING(4ES)

90183-06069-00

Unavailable

13

GROMMET

90480-15257-00

Unavailable

14

BOLT, WITH WASHER(3FC)

90119-06163-00

$10.49

15

COLLAR

90387-081F5-00

Unavailable

16

NUT, SPRING

90183-051A0-00

Unavailable

17

NUT, SPRING(3GM)

90183-05061-00

$5.60

18

SCREW, ROUND HEAD(1UX)

90150-05023-00

Unavailable

19

NUT(1KT)

90179-05523-00

Unavailable

20

WINDSHIELD

4BH-28381-11-00

Unavailable

21

SEAL,2

1JK-21735-00-00

Unavailable

22

SEAL

3YF-21268-00-00

Unavailable

23

COVER

4BH-28365-00-00

Unavailable

24

SCREW(36F)

90149-06194-00

Unavailable

25

PLATE

4U5-2176E-00-00

Unavailable

26

GROMMET (10V)

90480-12325-00

Unavailable

27

BRACKET

4BH-28366-00-00

Unavailable

28

BRACKET

4BH-28367-00-00

Unavailable

29

BOLT, FLANGE

95817-06010-00

Unavailable

30

REAR VIEW MIRROR ASSEMBLY (LEFT)

4BH-26280-20-00

Unavailable

31

REAR VIEW MIRROR ASSEMBLY (RIGHT)

4BH-26290-20-00

Unavailable

32

STAY, MIRROR 1

4BH-2831W-00-00

Unavailable

33

STAY, MIRROR 2

4BH-2832W-00-00

Unavailable

34

SCREW, BINDING

98907-05014-00

Unavailable

35

BRACKET, MIRROR 1

4BH-2834N-00-00

Unavailable

36

BRACKET, MIRROR 2

4BH-2834R-00-00

Unavailable

37

PANEL, INNER 5

4BH-2836R-00-00

Unavailable

38

SCREW, BINDING (10V)

90154-05013-00

$5.60

39

NUT, SPRING

90183-051A0-00

Unavailable

40

MOLE 4

36Y-28348-00-00

Unavailable

41

MOLD, SIDE COVER 1

1UF-2171L-01-00

Unavailable

42

MOLE 6

3CV-2834H-01-00

Unavailable

43

PANEL, INNER 3

4BH-2836M-00-00

Unavailable

44

PANEL, INNER 4

4BH-2836N-00-00

Unavailable

45

SCREW, BINDING

98907-05012-00

Unavailable

46

PANEL, INNER 1

4BH-2836K-00-00

Unavailable

47

LABEL

3TU-2178A-00-00

Unavailable

48

SEAL 1

4BH-28218-00-00

Unavailable

49

PANEL, INNER 2

4BH-2836L-00-00

Unavailable

50

LABEL

3TU-2178A-00-00

Unavailable

51

SEAL 3

4BH-28238-00-00

Unavailable

52

NUT, SPRING

90183-051A0-00

Unavailable

53

LID 1

4BH-2839K-00-00

Unavailable

54

SEAL 2

4BH-28228-00-00

Unavailable

55

SCREW, BINDING (10V)

90154-05013-00

$5.60

56

TRIM

4BH-28376-00-00

Unavailable

57

EMBLEM, YAMAHA

99247-00100-00

Unavailable

58

EMBLEM

4BH-28315-40-00

Unavailable
