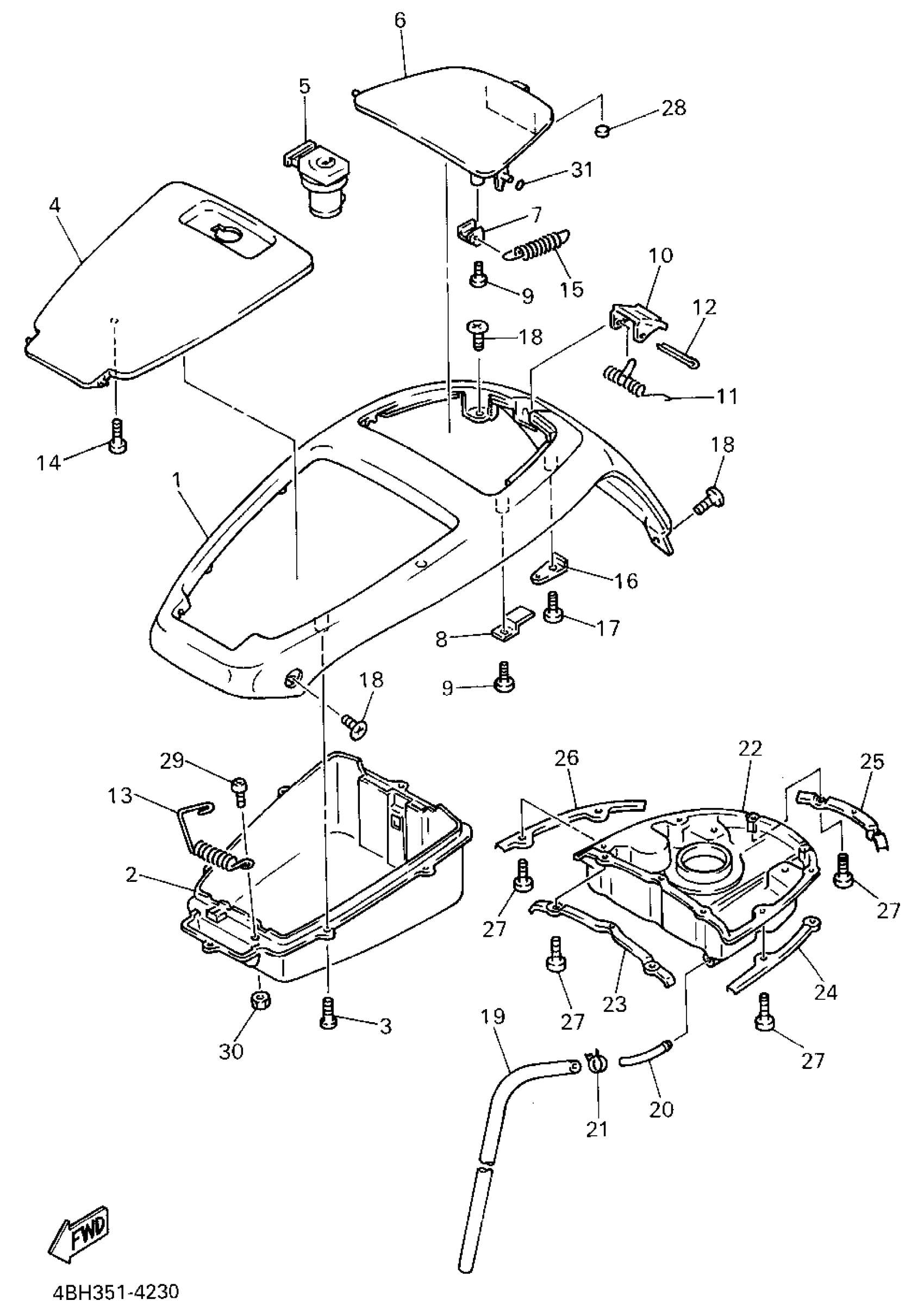

Yamaha GTS1000AFC (GTS1000A CA) 1994 COVER Diagram

#

Description
Price

1

COVER, TOP

4BH-2170F-00-7B

Unavailable

2

BOX

4BH-2177A-00-00

Unavailable

3

SCREW, TAPPING(JN5)

97707-50010-00

$0.27

4

LID

4BH-2177E-00-7B

Unavailable

5

SIDE COVER LOCK ASSEMBLY

4BH-21708-01-00

Unavailable

6

LID 2

4BH-2177J-00-7B

Unavailable

7

BRACKET 3

4BH-2175V-00-00

Unavailable

8

GUIDE 1

4BH-2178L-00-00

Unavailable

9

SCREW, PAN TAP.2

97707-50508-00

Unavailable

10

HOOK

4BH-28379-00-00

Unavailable

11

SPRING,TORSION

90508-104A1-00

Unavailable

12

PIN, COTTER (AM5)

91490-30045-00

$8.99

13

SPRING, TORSION

90508-203A6-00

Unavailable

14

SCREW, TAPPING(JN5)

97707-50010-00

$0.27

15

SPRING, TENSION (90506-05159)

90506-07355-00

Unavailable

16

BRACKET 4

4BH-2175W-00-00

Unavailable

17

SCREW, PAN TAP.2

97707-50508-00

Unavailable

18

SCREW, BINDING (10V)

90154-05013-00

Unavailable

19

HOSE

90445-115H2-00

Unavailable

20

PIPE, JOINT 1

4BH-24376-00-00

Unavailable

21

CLIP

90467-11028-00

Unavailable

22

COVER, FILLER

4BH-2414A-00-00

Unavailable

23

BRACKET 1

4BH-2172K-00-00

Unavailable

24

BRACKET 2

4BH-2172L-00-00

Unavailable

25

BRACKET 3

4BH-2172M-00-00

Unavailable

26

BRACKET 4

4BH-2172N-00-00

Unavailable

27

SCREW, PAN TAP.2

97707-50508-00

Unavailable

28

DAMPER

4BH-21746-01-00

Unavailable

29

SCREW, BINDING

98907-05012-00

Unavailable

30

NUT, HEXAGON (663)

95380-05600-00

Unavailable

31

O-RING (2H7)

93210-48364-00

Unavailable
