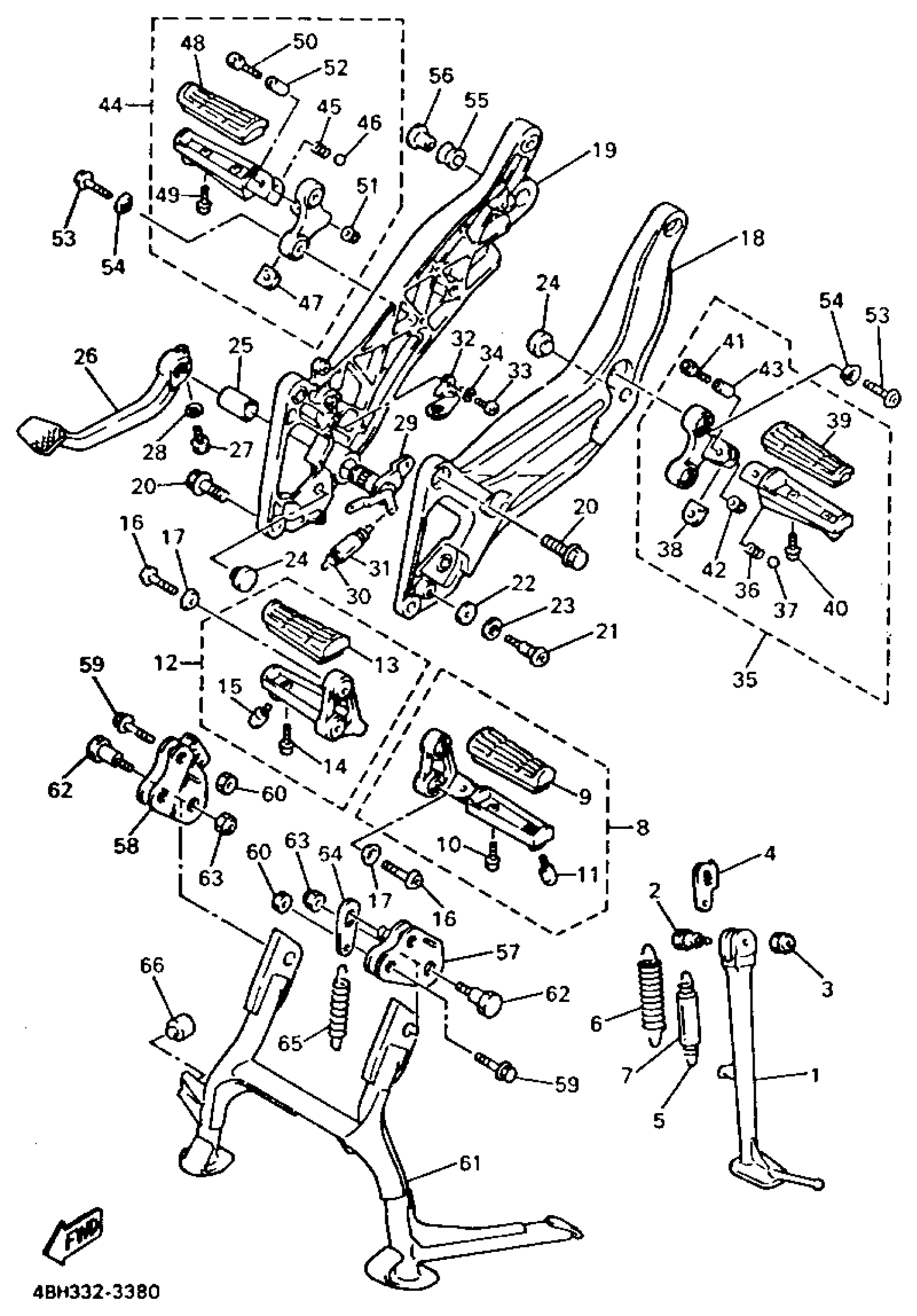

Yamaha GTS1000AEC (GTS1000A CA) 1993 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

4BH-27311-00-00

Unavailable

2

BOLT

90109-107F8-00

Unavailable

3

NUT, U

90185-10037-00

$9.49

4

LINK, SIDE STAND

3VD-27315-00-00

$7.99

5

SPRING, TENSION (4K0)

90506-18224-00

$5.60

6

SPRING, TENSION (4K0)

90506-26225-00

$11.49

7

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

8

FRT FOOTREST ASY L

4BH-27410-01-00

Unavailable

9

COVER, FOOTREST

3YX-27413-00-00

$29.99

10

SCREW, PAN HEAD

98507-05014-00

$8.49

11

BOLT

3HE-27435-00-00

$28.99

12

FRT FOOTREST ASY R

4BH-27420-01-00

Unavailable

13

COVER, FOOTREST

3YX-27413-00-00

$29.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

3HE-27435-00-00

$28.99

16

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

17

WASHER(1UF)

90209-08295-00

Unavailable

18

BRACKET 2

4BH-27442-00-P1

Unavailable

19

BRACKET 3

4BH-27443-00-P1

Unavailable

20

BOLT, WASHER BASED

90105-10678-00

Unavailable

21

BOLT

4BP-27434-11-00

Unavailable

22

WASHER (853)

90201-08326-00

Unavailable

23

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

24

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

25

BUSH, SOLID(3VD)

90380-20213-00

Unavailable

26

PEDAL, BRAKE

4BH-27211-00-00

Unavailable

27

BOLT (1J7)

90109-06468-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

SHAFT, BRAKE PEDAL

4BH-27212-00-00

Unavailable

30

SPRING, TENSION (2X4)

90506-20192-00

Unavailable

31

HOSE(4BH)

90446-14359-00

Unavailable

32

BRACKET 4

4BH-2741L-00-00

Unavailable

33

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

34

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

35

RR FOOTREST ASY 1

4BH-27430-01-00

Unavailable

36

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

37

BALL

93501-04011-00

Unavailable

38

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

39

COVER, FOOTREST

3YX-27413-00-00

$29.99

40

SCREW, PAN HEAD

98507-05014-00

$8.49

41

BOLT, SOCKET

91314-06035-00

Unavailable

42

NUT, SELF-LOCKING

95617-06100-00

Unavailable

43

COLLAR (24R)

90387-064H8-00

Unavailable

44

REAR FOOTREST ASSY 2

4BH-27440-01-00

Unavailable

45

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

46

BALL

93501-04011-00

Unavailable

47

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

48

COVER, FOOTREST

3YX-27413-00-00

$29.99

49

SCREW, PAN HEAD

98507-05014-00

$8.49

50

BOLT, SOCKET

91314-06035-00

Unavailable

51

NUT, SELF-LOCKING

95617-06100-00

Unavailable

52

COLLAR (24R)

90387-064H8-00

Unavailable

53

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

54

WASHER(1UF)

90209-08295-00

Unavailable

55

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

56

COLLAR (2H7)

90387-10636-00

Unavailable

57

BRACKET, MAIN STAND

4BH-27151-00-00

Unavailable

58

BRACKET, MAIN STAND 2

4BH-27152-00-00

Unavailable

59

BOLT (4R4)

90105-10188-00

Unavailable

60

NUT(4KG)

90179-10658-00

Unavailable

61

STAND,MAIN

4BH-27111-01-00

Unavailable

62

BOLT

90109-100E6-00

Unavailable

63

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

64

LINK, MAIN STAND

4BH-27115-00-00

Unavailable

65

SPRING, TENSION (12R)

90506-45278-00

Unavailable

66

STOPPER, MAIN STAND

2GM-27114-00-00

Unavailable
