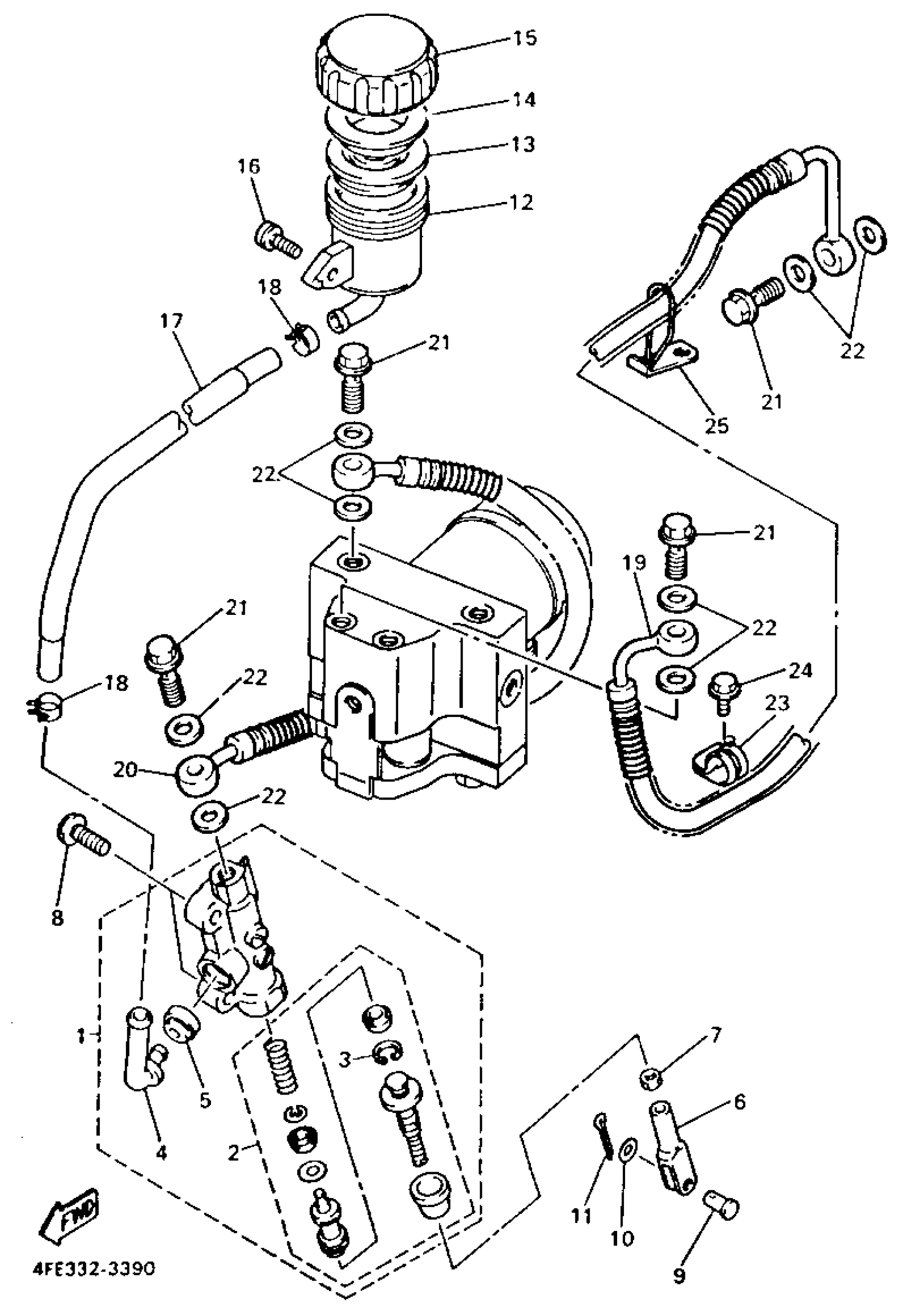

Yamaha GTS1000AEC (GTS1000A CA) 1993 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

4BH-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

4BH-W0042-50-00

Unavailable

3

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$2.86

4

JOINT

4BP-2582A-00-00

$15.38

5

O-RING

4BP-2585F-01-00

Unavailable

6

JOINT

31A-27222-00-00

$35.56

7

. NUT

95380-08700-00

$3.05

8

SCREW, ROUND HEAD

90150-08034-00

Unavailable

9

PIN W/HOLE 307181180000

90240-08013-00

$4.89

10

WASHER, PLATE 1562722600

90201-08083-00

$5.86

11

PIN, COTTER

91490-20025-00

$1.23

12

TANK, RESERVOIR

47X-25894-00-00

Unavailable

13

DIAPHRAGM, RESERVER

360-25854-01-00

$19.48

14

BUSH,DIAPHRAGM

2GU-25855-00-00

$23.80

15

CAP, RESERVOIR

2KF-25852-50-00

$40.00

16

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

17

HOSE, RESERVOIR

4BH-25895-00-00

Unavailable

18

CLIP (5K4)

90467-14057-00

Unavailable

19

BRAKE HOSE SET (4FE)

99999-02450-00

Unavailable

20

HOSE, BRAKE 7

4FE-2582K-00-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRAKE HOSE 1

3XV-25875-00-00

Unavailable

24

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

25

HOLDER, BRAKE HOSE

4BH-25886-10-00

Unavailable
