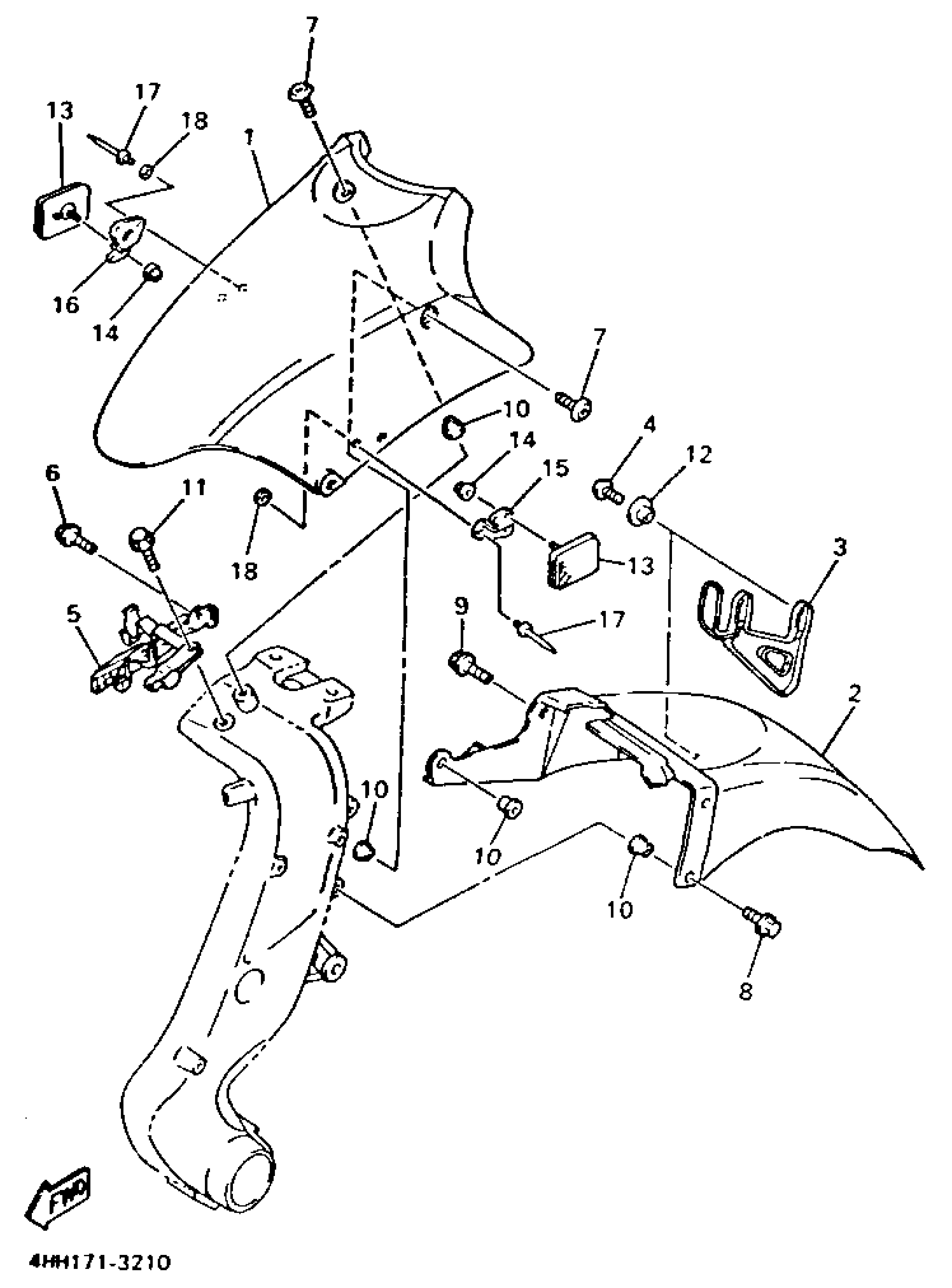

Yamaha GTS1000AEC (GTS1000A CA) 1993 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4FV-21511-00-P0

Unavailable

2

FENDER, FRONT 2

4BH-21556-00-00

Unavailable

3

HOLDER

4BH-21596-00-00

Unavailable

4

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

5

STAY, FENDER 1

4BH-21513-00-00

Unavailable

6

BOLT, FLANGE

95817-06012-00

$1.43

7

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

8

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

9

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

10

COLLAR

90387-065T2-00

$8.49

11

BOLT, BUTTON

92014-06016-00

$8.49

12

COLLAR

90387-0702H-00

Unavailable

13

FRONT REFLECTOR ASSY

23V-85110-00-00

$27.99

14

NUT, FLANGE(3GM)

95707-05500-00

$8.49

15

STAY 1

4FV-21587-00-00

Unavailable

16

STAY 2

4FV-21588-00-00

Unavailable

17

RIVET, BLIND

90267-40029-00

Unavailable

18

WASHER, PLATE(26H)

90201-044H9-00

Unavailable
