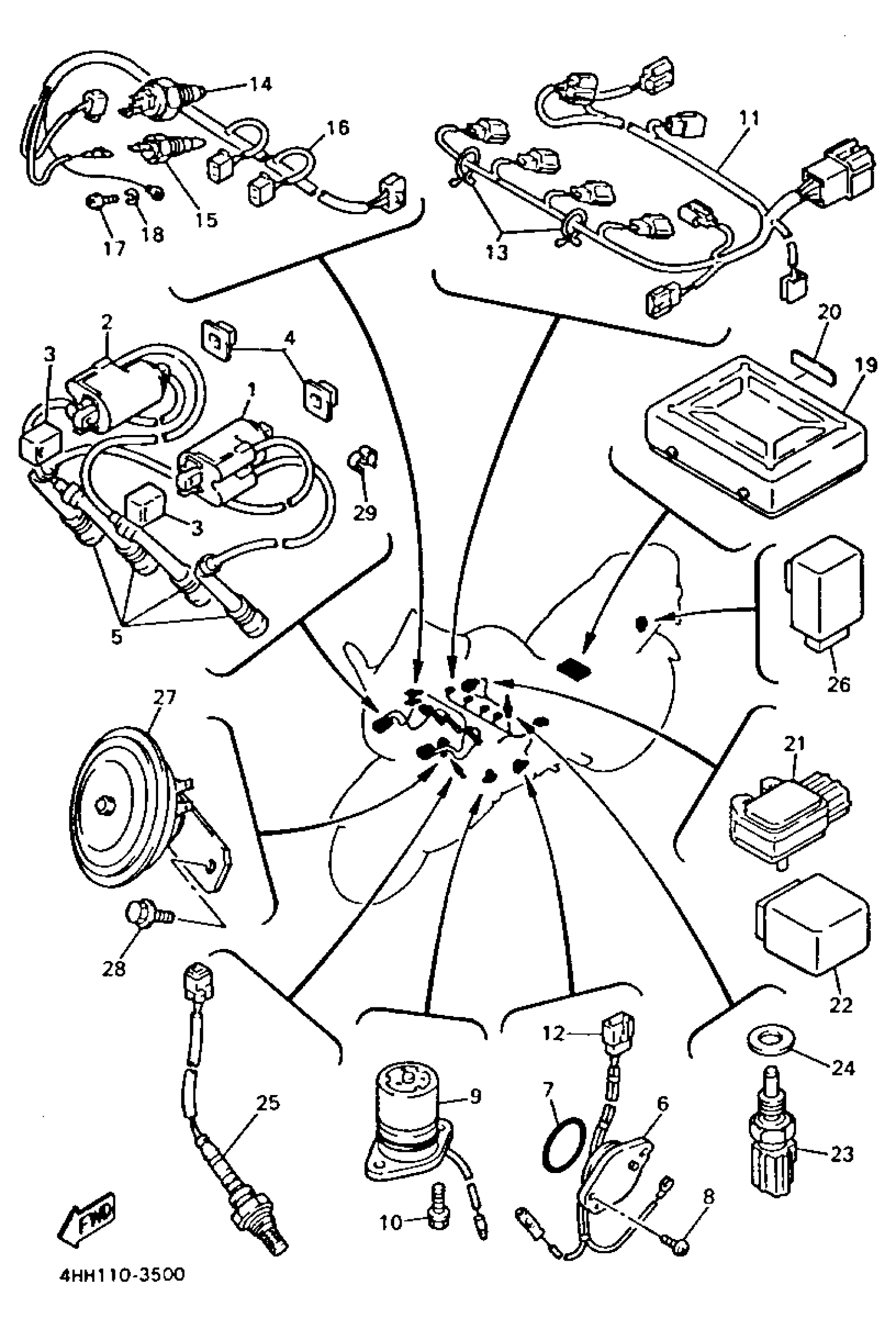

Yamaha GTS1000AEC (GTS1000A CA) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4BH-82310-01-00

Unavailable

2

IGNITION COIL ASY

4BH-82320-01-00

Unavailable

3

DAMPER, IGNITION COIL

4BH-82317-00-00

Unavailable

4

DAMPER, IGNITION COIL

4U8-82317-00-00

Unavailable

5

PLUG CAP ASSY

2KT-82370-00-00

$122.99

6

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

7

O-RING (371)

93210-29196-00

$8.49

8

SCREW, PAN HEAD

98580-06016-00

Unavailable

9

OIL LEVEL GAUGE ASSEMBLY

3GM-85720-00-00

Unavailable

10

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

11

WIRE HARNESS ASSEMBLY 2

4BH-82580-00-00

Unavailable

12

WIRE, LEAD

4BH-82541-00-00

Unavailable

13

CLAMP

90464-16115-00

Unavailable

14

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

15

THERMO SWITCH ASSY

3YX-82560-00-00

$83.99

16

WIRE, SUB LEAD

4BH-82509-00-00

Unavailable

17

SCREW, PAN HEAD (7G3)

98580-05008-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

ENGINE CONTROLUNIT

4HH-8591A-10-00

Unavailable

20

PLATE1

4FV-13843-00-00

Unavailable

21

SENSOR, PRESSURE

4BH-82380-00-00

Unavailable

22

DAMPER

4BH-8235Y-00-00

Unavailable

23

THERMO UNIT

4BH-83591-00-00

Unavailable

24

GASKET(2GH)

90430-12202-00

Unavailable

25

SENSOR

4BH-8592A-00-00

Unavailable

26

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

27

HORN

25G-83371-00-00

Unavailable

28

BOLT, FLANGE

95817-08012-00

Unavailable

29

CLAMP(6M7)

90464-09M31-00

Unavailable
