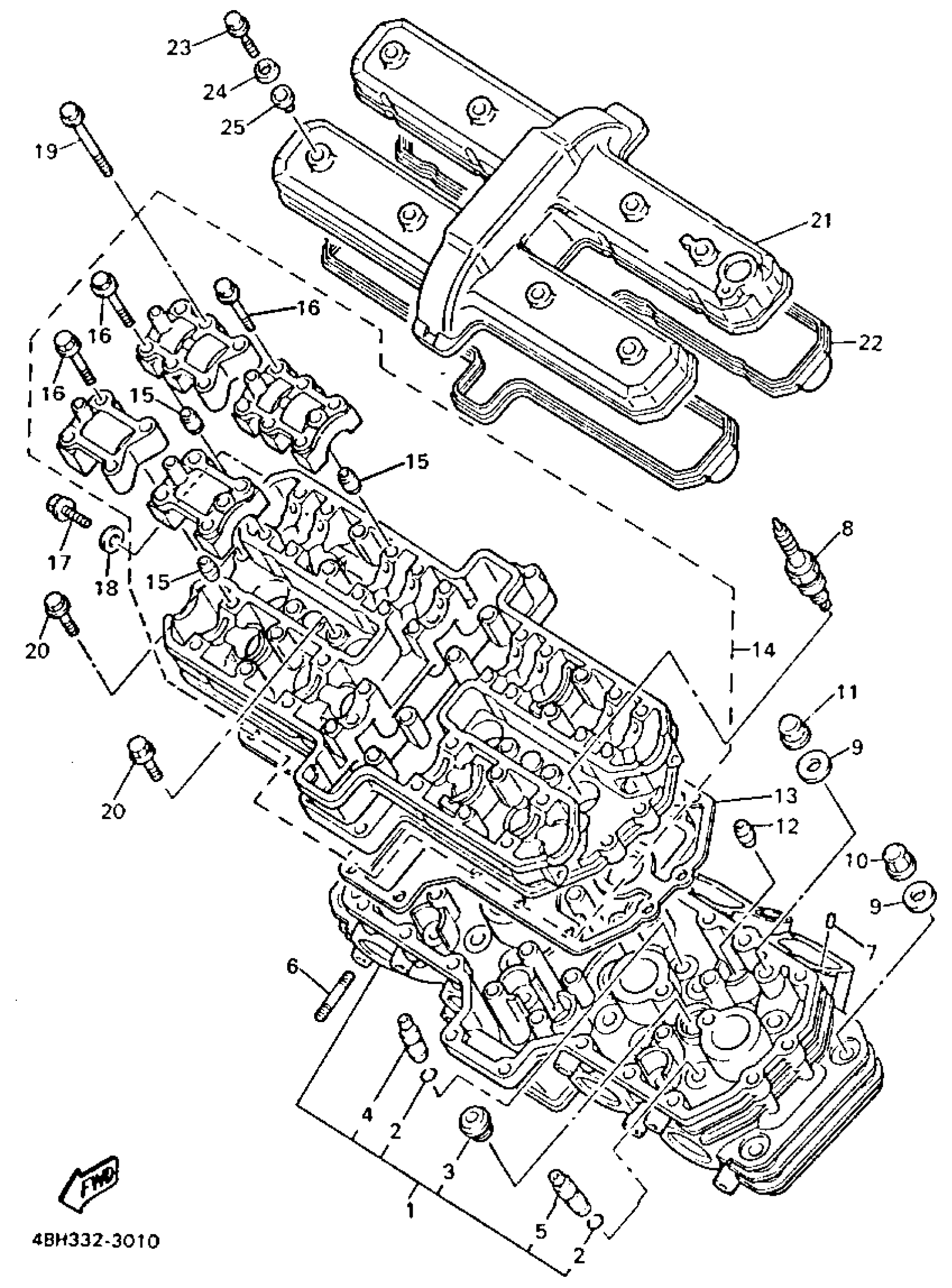

Yamaha GTS1000AEC (GTS1000A CA) 1993 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

4BH-11102-00-00

Unavailable

2

CIRCLIP(1WG)

93440-10153-00

$2.39

3

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

4

. GUIDE, INTAKE VALVE

3GM-11133-10-00

Unavailable

5

. GUIDE, EXHAUST VALVE

3GM-11134-10-00

Unavailable

6

BOLT, STUD 3

95617-08625-00

$8.49

7

PIN,DOWEL (603)

93604-10011-00

$8.49

8

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable

9

WASHER, PLATE(3GM)

90201-103M4-00

$1.81

10

NUT, CROWN(2GG)

90176-10075-00

$8.49

11

NUT(3GM)

90179-10584-00

$18.99

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

GASKET, CYLINDER HEAD 2

3FV-11182-00-00

Unavailable

14

CAM CASE ASSY

4BH-1115A-00-00

Unavailable

15

PIN, DOWEL(3XW)

91808-16023-00

$8.49

16

BOLT, WASHER BASED (4H7)

90105-06153-00

Unavailable

17

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

18

GASKET 256113960000

90430-06014-00

Unavailable

19

BOLT, WASHER BASED

90105-06541-00

Unavailable

20

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

21

COVER, CYLINDER HEAD 1

4BH-11191-00-00

Unavailable

22

GASKET, HEAD COVER 1

4SV-11193-01-00

Unavailable

23

BOLT(3TJ)

90109-064F0-00

Unavailable

24

WASHER(46X)

90209-11262-00

Unavailable

25

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable
