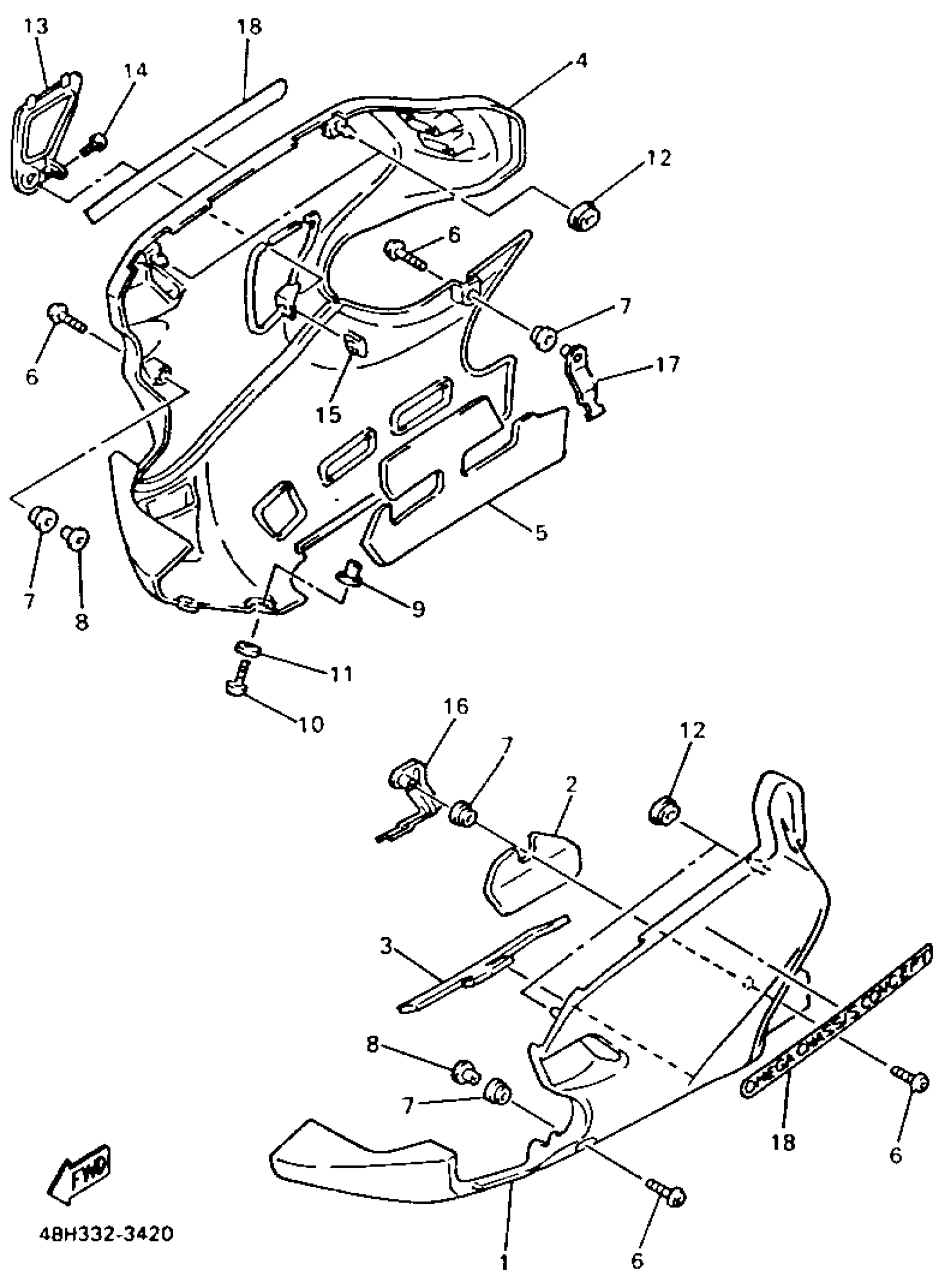

Yamaha GTS1000AEC (GTS1000A CA) 1993 COWLING 3 Diagram

#

Description
Price

1

COVER, LOWER

4BH-28385-00-6M

Unavailable

2

SEAT 3

4BH-2848L-00-00

Unavailable

3

SEAT 4

4BH-2848M-00-00

Unavailable

4

COVER, UNDER

4BH-28395-00-6M

Unavailable

5

SEAT 5

4BH-2848N-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

7

GROMMET

90480-13014-00

$8.49

8

COLLAR(1LJ)

90387-067N5-00

$7.49

9

NUT(1KT)

90179-05523-00

$8.49

10

SCREW(3YF)

90149-05299-00

$4.14

11

WASHER, PLATE(1KT)

90202-05180-00

$10.49

12

GROMMET(4BH)

90480-01559-00

$5.60

13

LID 2

4BH-2839L-00-6M

Unavailable

14

SCREW, BINDING (10V)

90154-05013-00

$5.60

15

NUT, SPRING

90183-051A0-00

$3.81

16

BRACKET 1

4BH-2836A-00-00

Unavailable

17

BRACKET 2

4BH-2836E-00-00

Unavailable

18

EMBLEM

4BH-28328-00-00

Unavailable
