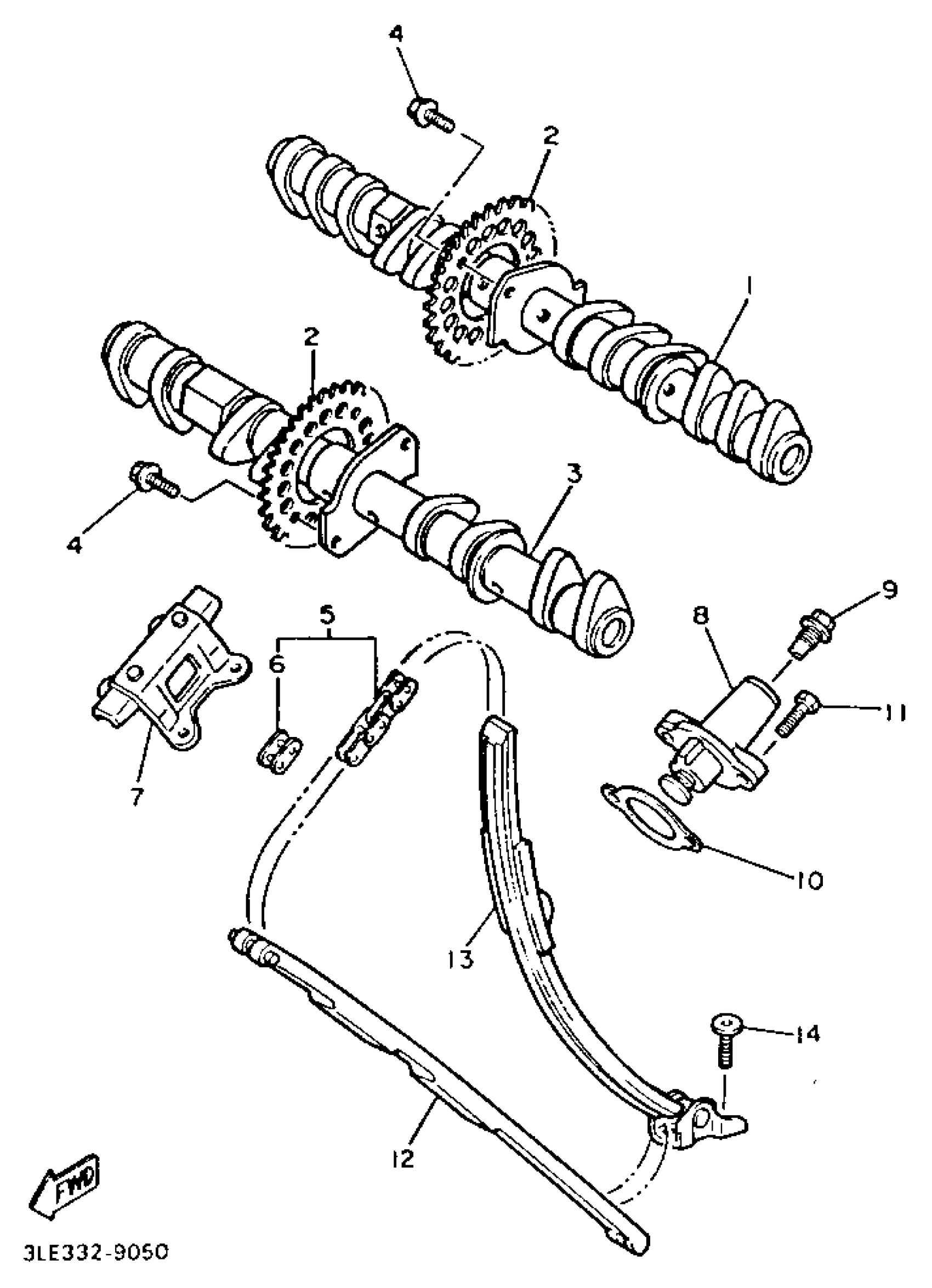

Yamaha GTS1000AEC (GTS1000A CA) 1993 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

4BH-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

3GM-12176-00-00

Unavailable

3

CAMSHAFT 2

4BH-12181-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN (DID219FS-108L)(4SV)

9Y581-01107-00

Unavailable

6

PIN, JOINT

4SV-11498-00-00

$7.99

7

GUIDE, STOPPER 2

2GH-12241-00-00

Unavailable

8

TENSIONER ASSEMBLY, CAM CHAIN

4BH-12210-00-00

Unavailable

9

BOLT(1WG)

90109-112F1-00

Unavailable

10

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

11

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

12

DAMPER, CHAIN 1

3GM-12251-00-00

Unavailable

13

DAMPER, CHAIN 2

3GM-12252-01-00

Unavailable

14

BOLT(1FN)

90109-065A8-00

Unavailable
