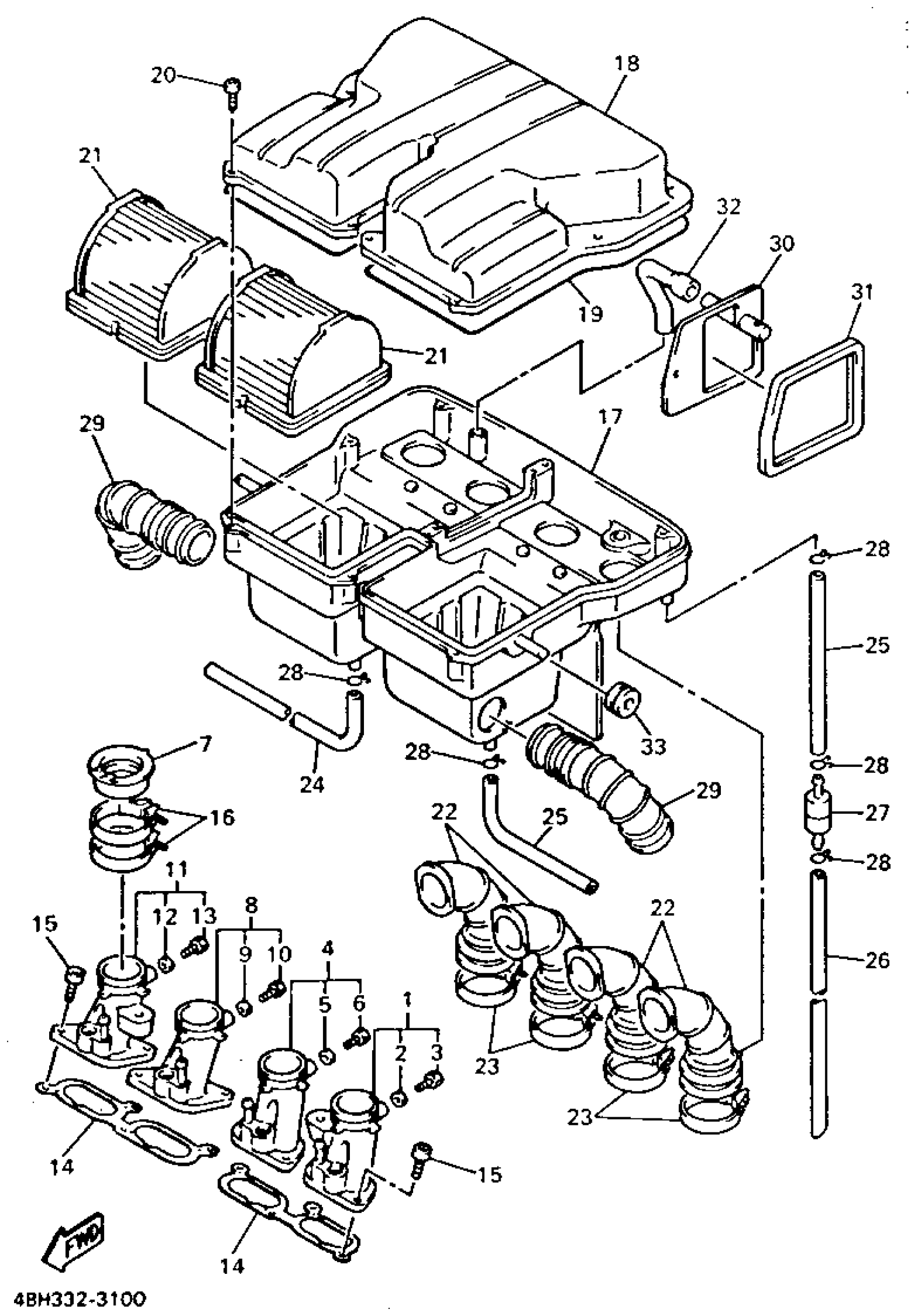

Yamaha GTS1000AEC (GTS1000A CA) 1993 AIR FILTER Diagram
#
Description
Price
1
JOINT, CARBURETOR 1
4BH-13586-00-00
Unavailable
2
GASKET 256113960000
90430-06014-00
Unavailable
4
JOINT, CARBURETOR 2
4BH-13596-00-00
Unavailable
5
GASKET 256113960000
90430-06014-00
Unavailable
8
JOINT, CARBURETOR 3
4BH-13597-00-00
Unavailable
9
GASKET 256113960000
90430-06014-00
Unavailable
11
JOINT, CARBURETOR 4
4BH-13598-00-00
Unavailable
12
GASKET 256113960000
90430-06014-00
Unavailable
14
GASKET, MANIFOLD
4BH-13556-00-00
Unavailable
16
HOSE CLAMP ASSY
90450-53005-00
Unavailable
17
AIR CLEANER CASE COMP.
4BH-W1441-00-00
Unavailable
18
CASE, AIR CLEANER 2
4BH-14421-00-00
Unavailable
19
SEAL
4BH-14457-00-00
Unavailable
20
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
Unavailable
21
ELEMENT, AIR CLEANER
4BH-14451-01-00
Unavailable
22
JOINT, AIR CLEANER 1
4BH-14453-00-00
Unavailable
23
HOSE CLAMP ASSY
90450-49001-00
Unavailable
24
HOSE
4BH-14987-00-00
Unavailable
25
HOSE (L198)
90445-11293-00
Unavailable
26
HOSE (L600)
90445-11012-00
Unavailable
27
FILTER ASSY
4X7-2149Y-00-00
Unavailable
28
CLIP
90467-100A1-00
Unavailable
29
DUCT
4BH-14437-00-00
Unavailable
30
SILENSER, INNER
4BH-14432-00-00
Unavailable
31
SEAL
4BH-14452-00-00
Unavailable
32
PIPE
4BH-14465-00-00
Unavailable
33
GROMMET(3GB)
90480-18499-00
Unavailable
